ONSEMI FPF2201

Manufacturer No:

FPF2201

Manufacturer:

ONSEMI

Package:

6-VDFN Exposed Pad

Description:

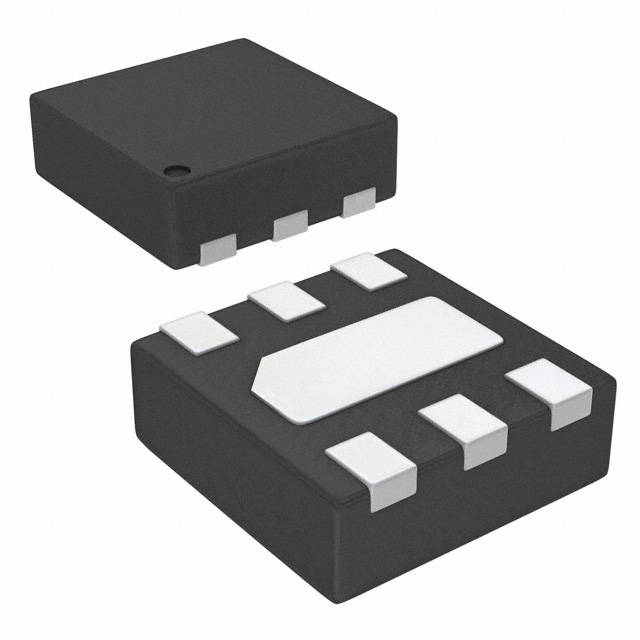

P-Channel PMIC FPF2201 6 Pin 3.3V 6-VDFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FPF2201 information

ONSEMI FPF2201 technical specifications, attributes, parameters and parts with similar specifications to ONSEMI FPF2201.

Type
Parameter

Lifecycle Status
LAST SHIPMENTS (Last Updated: 4 days ago)

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
6-VDFN Exposed Pad

Number of Pins
6

Weight
30mg

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

Published
2016

Feature
Load Discharge, Status Flag

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
6

ECCN Code
EAR99

Resistance
230mOhm

Terminal Finish
Nickel/Gold/Palladium/Silver (Ni/Au/Pd/Ag)

Subcategory
Peripheral Drivers

Max Power Dissipation
1.2W

Terminal Position
DUAL

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
3.3V

Base Part Number
FPF2201

Number of Outputs
1

Qualification Status
Not Qualified

Output Type
P-Channel

Operating Supply Voltage
5.5V

Interface
On/Off

Output Configuration
High Side

Output Current
504mA

Voltage - Supply (Vcc/Vdd)
Not Required

Input Type
Non-Inverting

Turn On Delay Time
70 ?s

Switch Type
General Purpose

Min Input Voltage
1.8V

Max Input Voltage
5.5V

Turn-Off Delay Time
600 ns

Ratio - Input:Output
1:1

Voltage - Load
1.8V~5.5V

Driver Number of Bits
1

Min Current Limit
500mA

Fault Protection
Current Limiting (Fixed), Over Temperature, UVLO

Output Peak Current Limit-Nom
0.53A

Rds On (Typ)
140m ?

Built-in Protections
OVER CURRENT; THERMAL; UNDER VOLTAGE

Download datasheets and manufacturer documentation for ONSEMI FPF2201.

FPF2201 Overview

Tape & Reel (TR) is how it's packaged.The 6-VDFN Exposed Pad package includes it.This lighting drivere has a mounting type of Surface Mount.There is a General Purpose switch type associated with it.It is recommended that the temperature be set to -40°C~85°C TA for reliable operation.In this LED driver, there are no outputs available.A supply voltage of Not Required is required for it to operate.There is a maximum output voltage of P-Channel volts.In terms of features, the LED driving board has Load Discharge, Status Flag.It belongs to the family FPF2201.The termination count is 6.The 6 pins are used to operate the LED driver.As far as functions are concerned, the lighting driver has 1.High efficiency is possible at 3.3V supply voltage.This lighting driver is mounted in the way of Surface Mount.230mOhm resistance is present in the lighting driver.In this case, the output current is set to 504mA.A self-contained container with a capacity of Peripheral Drivers contains this lighting driver.In order to achieve the best efficiency, the supply voltage should be set to 5.5V.This LED driver can handle voltages up to 5.5V volts.As far as input voltage goes, it has a minimum of 1.8V volts.

FPF2201 Features

Supplied from 3.3V
Resistance of 230mOhm

FPF2201 Applications

There are a lot of ON Semiconductor
FPF2201 Power Switches ICs applications.

Notebook PC
Telecom and Network Systems
PC Card Hot Swap
Storage Drives
Portable/Handheld Devices
Wireless/Networking Cards
Low Voltage I/O System Power
Hard Disk Drives
Solid-State Drives
Hot Swap
