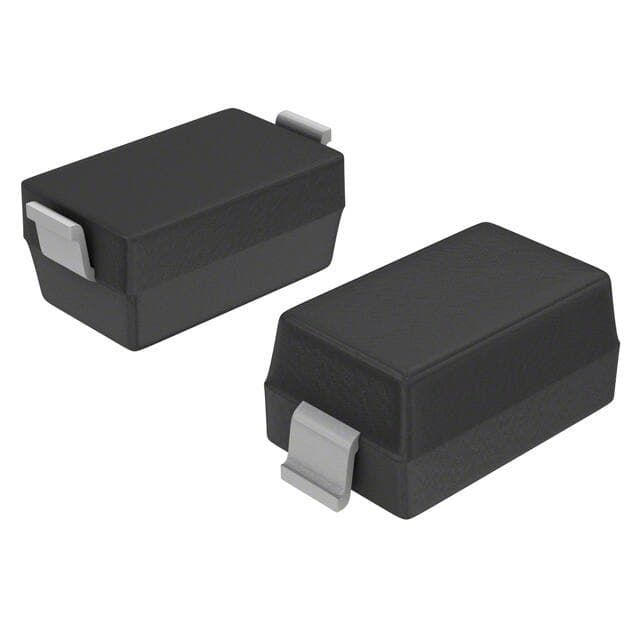

Comchip Technology CDBM240-HF
Manufacturer No:
CDBM240-HF
Manufacturer:
Package:
SOD-123T
Description:
Schottky Diode Rectifier Fast Recovery =< 500ns, > 200mA (Io) 500mV @ 2A -55°C~125°C 500?A @ 40V 2-Termination Tape & Reel (TR) SOD-123T Surface Mount
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
CDBM240-HF information
Comchip Technology CDBM240-HF technical specifications, attributes, parameters and parts with similar specifications to Comchip Technology CDBM240-HF.
- Type
- Parameter
- Factory Lead Time
- 10 Weeks
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- SOD-123T
- Diode Element Material
- SILICON
- Packaging
- Tape & Reel (TR)
- Published
- 2011
- JESD-609 Code
- e3
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 2
- ECCN Code
- EAR99
- Terminal Finish
- Tin (Sn)
- Additional Feature
- LOW POWER LOSS
- HTS Code
- 8541.10.00.80
- Subcategory
- Rectifier Diodes
- Terminal Position
- DUAL
- Terminal Form
- FLAT
- Peak Reflow Temperature (Cel)
- 260
- Time@Peak Reflow Temperature-Max (s)
- 30
- Base Part Number
- CDBM240
- JESD-30 Code
- R-PDSO-F2
- Operating Temperature (Max)
- 125°C
- Number of Elements
- 1
- Speed
- Fast Recovery =< 500ns, > 200mA (Io)
- Diode Type
- Schottky
- Current - Reverse Leakage @ Vr
- 500?A @ 40V
- Voltage - Forward (Vf) (Max) @ If
- 500mV @ 2A
- Operating Temperature - Junction
- -55°C~125°C
- Output Current-Max
- 2A
- Application
- EFFICIENCY
- Current - Average Rectified (Io)
- 2A DC
- Max Reverse Voltage (DC)
- 40V
- Average Rectified Current
- 2A
- Number of Phases
- 1
- Capacitance @ Vr, F
- 160pF @ 4V 1MHz
- Non-rep Pk Forward Current-Max
- 50A
- Reverse Current-Max
- 500?A
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for Comchip Technology CDBM240-HF.
Datasheets:
CDBM240-HF Overview
Devices like this have an average rectified current of 2A volts.When the maximum reverse current is permrectifierted, rectifier reaches 500?A.Output current maximum is 2A.
CDBM240-HF Features
an average rectified current of 2A volts
A maximum reverse current of 500?A
2A is the maximum value
CDBM240-HF Applications
There are a lot of Comchip Technology
CDBM240-HF applications of single-phase diode rectifier.
- DC motor control and drives
- Battery chargers
- Welders
- Power converters
- Reverse Polarity Protection
- Ultra High-Speed Switching
- Freewheeling
- Polarity Protection Diode
- Recirculating Diode
- Switching Diode
