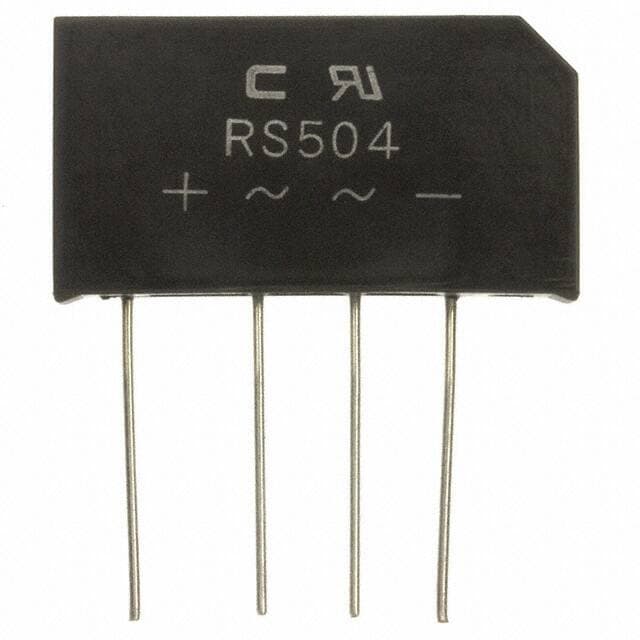

Comchip Technology RS504-G

Manufacturer No:

RS504-G

Manufacturer:

Comchip Technology

Package:

4-SIP, RS-5

Description:

Single Phase Bridge Rectifier Standard Through Hole -55°C~125°C TJ 10?A @ 400V 1V @ 5A 4-SIP, RS-5 Tray

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

RS504-G information

Comchip Technology RS504-G technical specifications, attributes, parameters and parts with similar specifications to Comchip Technology RS504-G.

Type
Parameter

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
4-SIP, RS-5

Number of Pins
5

Supplier Device Package
RS5

Operating Temperature
-55°C~125°C TJ

Packaging
Tray

Published
2007

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Max Operating Temperature
125°C

Min Operating Temperature
-55°C

Technology
Standard

Diode Type
Single Phase

Current - Reverse Leakage @ Vr
10?A @ 400V

Voltage - Forward (Vf) (Max) @ If
1V @ 5A

Max Reverse Leakage Current
10?A

Max Surge Current
30A

Current - Average Rectified (Io)
5A

Voltage - Peak Reverse (Max)
400V

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Comchip Technology RS504-G.

Datasheets:

comchiptechnology-rs507g-datasheets-8596.pdf

RS504-G Overview

Electronic components in the 4-SIP, RS-5 package are basically the same.Observe the reverse leakage current and do not allow it to exceed zero.Through Hole is the method of mounting the device.The normal operation of the device is ensured when it is operated at the temperature of 0 degrees Celsius.The surge current should be monitored and should not exceed zero.

RS504-G Features

4-SIP, RS-5 package
operating at a temperature of -55°C~125°C TJ

RS504-G Applications

There are a lot of Comchip Technology
RS504-G applications of bridge rectifiers.

Fuse-in-glass diodes design
Electrically isolated aluminum case
Motor controls ? Low Voltage and Medium Voltage converters
SCR power bridges for solid state starters
SCR and diode based input rectifiers
Crowbar systems for motor drives
Wind power (alternative energy) ? Converters available as diodes, SCRs or IGBTs
Transportation ? Traction rectifiers and auxiliary rectifiers
Inductive heating ? Input rectifiers
Welding systems ? Input rectifiers and fast recovery diodes
