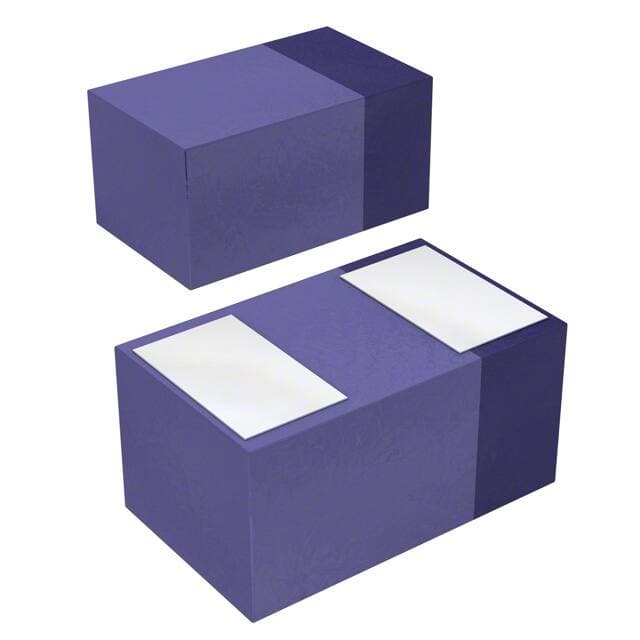

Comchip Technology CDBQR0140R
Comchip Technology CDBQR0140R

Comchip Technology CDBQR0140R

Manufacturer No:

CDBQR0140R

Manufacturer:

Comchip Technology

Package:

0402 (1005 Metric)

Description:

Schottky Diode Rectifier Small Signal =< 200mA (Io), Any Speed 450mV @ 10mA 125°C Max 1?A @ 10V Tape & Reel (TR) 0402 (1005 Metric) Surface Mount

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CDBQR0140R information

Comchip Technology CDBQR0140R technical specifications, attributes, parameters and parts with similar specifications to Comchip Technology CDBQR0140R.

  • Type
  • Parameter
  • Factory Lead Time
  • 8 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 0402 (1005 Metric)
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2011
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • ECCN Code
  • EAR99
  • HTS Code
  • 8541.10.00.70
  • Subcategory
  • Rectifier Diodes
  • Max Power Dissipation
  • 125mW
  • Base Part Number
  • CDBQR0140
  • Case Code (Metric)
  • 1005
  • Case Code (Imperial)
  • 0402
  • Operating Temperature (Max)
  • 125°C
  • Number of Elements
  • 1
  • Configuration
  • SINGLE
  • Speed
  • Small Signal =< 200mA (Io), Any Speed
  • Diode Type
  • Schottky
  • Current - Reverse Leakage @ Vr
  • 1?A @ 10V
  • Voltage - Forward (Vf) (Max) @ If
  • 450mV @ 10mA
  • Max Reverse Leakage Current
  • 1?A
  • Operating Temperature - Junction
  • 125°C Max
  • Max Reverse Voltage (DC)
  • 40V
  • Average Rectified Current
  • 100mA
  • Capacitance @ Vr, F
  • 6pF @ 10V 1MHz
  • Non-rep Pk Forward Current-Max
  • 1A
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Comchip Technology CDBQR0140R.

Datasheets:

CDBQR0140R Overview


In this device, the reverse leakage current maximum is 1?A volts.Devices like this have an average rectified current of 100mA volts.The most energy losses ( 125mW heat) come from electronic and electrical devices.Surge current can reach maximum value 1A.

CDBQR0140R Features


a maximal reverse leakage current of 1?A volts
an average rectified current of 100mA volts
the least amount of 125mW heat (energy loss)


CDBQR0140R Applications


There are a lot of Comchip Technology
CDBQR0140R applications of single-phase diode rectifier.


  • DC motor control and drives
  • Battery chargers
  • Welders
  • Power converters
  • Reverse Polarity Protection
  • Ultra High-Speed Switching
  • Freewheeling
  • Polarity Protection Diode
  • Recirculating Diode
  • Switching Diode
