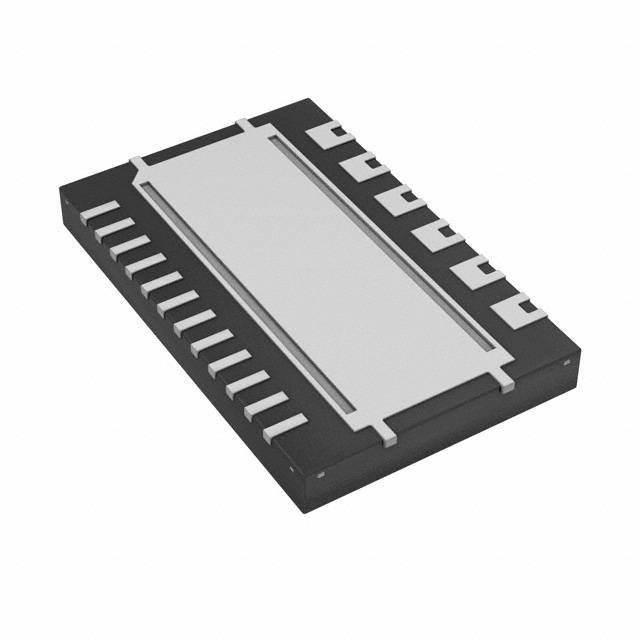

INFINEON BTS56033LBAAUMA1
Manufacturer No:
BTS56033LBAAUMA1
Manufacturer:
Package:
24-PowerVDFN
Description:
N-Channel PMIC Automotive, AEC-Q100 Series 24 Pin 4.3V 24-PowerVDFN
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
BTS56033LBAAUMA1 information
INFINEON BTS56033LBAAUMA1 technical specifications, attributes, parameters and parts with similar specifications to INFINEON BTS56033LBAAUMA1.
- Type
- Parameter
- Factory Lead Time
- 17 Weeks
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 24-PowerVDFN
- Number of Pins
- 24
- Operating Temperature
- -40°C~150°C TJ
- Packaging
- Tape & Reel (TR)
- Series
- Automotive, AEC-Q100
- Published
- 2014
- Feature
- Slew Rate Controlled
- Part Status
- Discontinued
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Number of Terminations
- 24
- HTS Code
- 8542.39.00.01
- Terminal Position
- DUAL
- Number of Functions
- 1
- Supply Voltage
- 4.3V
- Number of Outputs
- 6
- Output Type
- N-Channel
- Supply Voltage-Max (Vsup)
- 5.5V
- Supply Voltage-Min (Vsup)
- 3.8V
- Interface
- SPI
- Nominal Supply Current
- 125?A
- Output Configuration
- High Side
- Switch Type
- General Purpose
- Halogen Free
- Halogen Free
- Ratio - Input:Output
- 2:3
- Voltage - Load
- 5.5V~28V
- Fault Protection
- Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO
- Rds On (Typ)
- 39m ?, 110m ?
- Supply Voltage1-Nom
- 13.5V
- Supply Voltage1-Min
- 5.5V
- Supply Voltage1-Max
- 28V
- Length
- 9.5mm
- Height Seated (Max)
- 1mm
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
- Lead Free
- Contains Lead
Download datasheets and manufacturer documentation for INFINEON BTS56033LBAAUMA1.
Other Related Documents:
ConflictMineralStatement:
BTS56033LBAAUMA1 Overview
Tape & Reel (TR) is how it's packaged.The 24-PowerVDFN package includes it.This lighting drivere has a mounting type of Surface Mount.There is a General Purpose switch type associated with it.It is recommended that the temperature be set to -40°C~150°C TJ for reliable operation.In this LED driver, there are no outputs available.A supply voltage of 3.8V~5.5V is required for it to operate.There is a maximum output voltage of N-Channel volts.In terms of features, the LED driving board has Slew Rate Controlled.The termination count is 24.The 24 pins are used to operate the LED driver.As far as functions are concerned, the lighting driver has 1.High efficiency is possible at 4.3V supply voltage.This lighting driver is mounted in the way of Surface Mount.Electrical components such as this are included in the Automotive, AEC-Q100 series.In this case, Vsup (maximum supply voltage) is set to 5.5V.To maintain a normal operation, the supply voltage (Vsup) must be maintained above 3.8V.
