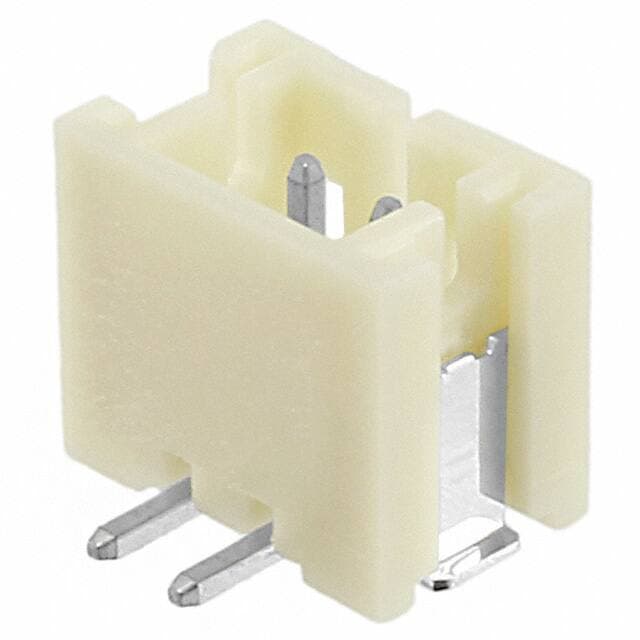

JST B2B-PH-SM4-TBT(LF)(SN)

Manufacturer No:

B2B-PH-SM4-TBT(LF)(SN)

Manufacturer:

JST

Package:

Description:

PH Series 1-Row Header Solder Tape & Reel (TR) Surface Mount 2-Position Board to Cable/Wire 0.260 6.60mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

B2B-PH-SM4-TBT(LF)(SN) information

JST B2B-PH-SM4-TBT(LF)(SN) technical specifications, attributes, parameters and parts with similar specifications to JST B2B-PH-SM4-TBT(LF)(SN).

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Contact Shape
Square

Contact Finish Mating
Tin

Contact Length-Mating
0.130 3.30mm

Contact Materials
Copper Alloy

Insulation Materials
Polyamide (PA6T), Nylon 6T

Voltage Rated
100V

Operating Temperature
-25°C~85°C

Packaging
Tape & Reel (TR)

Series
PH

Published
2008

JESD-609 Code
e2

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

ECCN Code
EAR99

Connector Type
Header

Number of Positions
2

Number of Rows
1

Additional Feature
LOW PROFILE

HTS Code
8536.69.40.40

Fastening Type
Detent Lock

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Contact Type
Male Pin

Mixed Contacts
NO

Option
GENERAL PURPOSE

Current Rating (Amps)
2A

Total Number of Contacts
2

Insulation Height
0.260 6.60mm

Style
Board to Cable/Wire

Number of Positions Loaded
All

Pitch - Mating
0.079 2.00mm

Insulation Color
Natural

Shrouding
Shrouded - 4 Wall

UL Flammability Code
94V-0

Features
Pick and Place, Solder Retention

Stack Height (Mating)
8.6mm

Material Flammability Rating
UL94 V-0

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for JST B2B-PH-SM4-TBT(LF)(SN).

Datasheets:

adafruitindustriesllc-2566-datasheets-6882.pdf

B2B-PH-SM4-TBT(LF)(SN) Overview

A Header package is included with it.Its mounting type is Surface Mount.Packaging is performed using a Tape & Reel (TR) case.It is part of the PH Series of products.Additionally, there are other features, such as LOW PROFILE.Surface Mount mounts the part.There is no operating temperature for the device.
