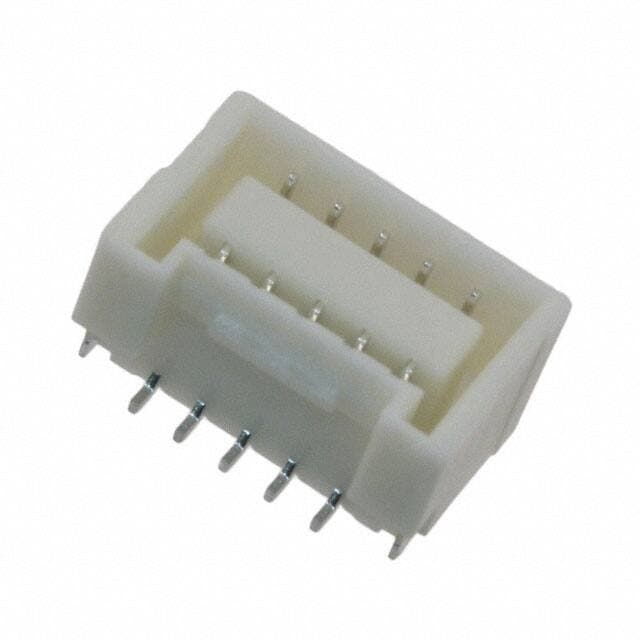

JST BM10B-ZPDSS-TF(LF)(SN)

Manufacturer No:

BM10B-ZPDSS-TF(LF)(SN)

Manufacturer:

Package:

Description:

ZPD Series 2-Row Header Solder Copper Alloy Tape & Reel (TR) Surface Mount Tin Polyamide (PA), Nylon 10-Position Board to Cable/Wire 0.219 5.56mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BM10B-ZPDSS-TF(LF)(SN) information

JST BM10B-ZPDSS-TF(LF)(SN) technical specifications, attributes, parameters and parts with similar specifications to JST BM10B-ZPDSS-TF(LF)(SN).

Type
Parameter

Factory Lead Time
16 Weeks

Contact Material
Copper Alloy

Mounting Type
Surface Mount

Contact Shape
Rectangular

Insulation Material
Polyamide (PA), Nylon

Operating Temperature
-25°C~85°C

Packaging
Tape & Reel (TR)

Series
ZPD

Published
2010

JESD-609 Code
e3

Feature
Solder Retention

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

Connector Type
Header

Number of Positions
10

Number of Rows
2

Voltage - Rated
100V

Fastening Type
Locking Ramp

Contact Finish - Mating
Tin

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Contact Type
Outer Shroud Contact

Mixed Contacts
NO

Option
GENERAL PURPOSE

Current Rating (Amps)
2A

Total Number of Contacts
10

Terminal Pitch
1.5mm

Insulation Height
0.219 5.56mm

Style
Board to Cable/Wire

Number of Positions Loaded
All

Pitch - Mating
0.059 1.50mm

Insulation Color
Natural

Shrouding
Shrouded - 4 Wall

Contact Gender
MALE

UL Flammability Code
94V-0

Stack Height (Mating)
9.5mm

Material Flammability Rating
UL94 V-0

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for JST BM10B-ZPDSS-TF(LF)(SN).

Datasheets:

jstsalesamericainc-szpd002tp03-datasheets-3011.pdf

BM10B-ZPDSS-TF(LF)(SN) Overview

This product is packaged in a Header box.Surface Mount indicates that the device is mounted.An Tape & Reel (TR) case is utilized for packaging the product.The product is a part of the ZPD Series.In many ways, Solder Retention makes it more powerful.Operating temperature is set to -25°C~85°C.

BM10B-ZPDSS-TF(LF)(SN) Features

ZPD series

BM10B-ZPDSS-TF(LF)(SN) Applications

There are a lot of JST Sales America Inc.
BM10B-ZPDSS-TF(LF)(SN) Rectangular Connectors applications.

Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
