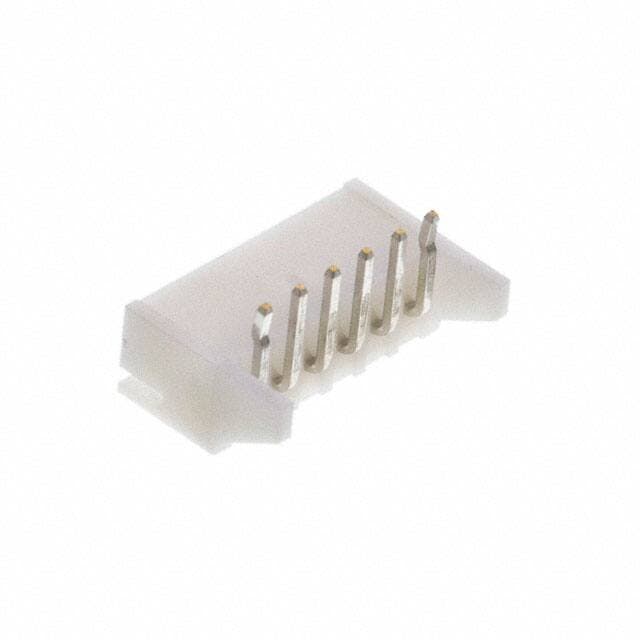

JST S6B-XH-A-1(LF)(SN)

Manufacturer No:

S6B-XH-A-1(LF)(SN)

Manufacturer:

Package:

Description:

XH Series 1-Row Header Press-Fit, Solder Brass Bulk Through Hole, Right Angle Tin Polyamide (PA66), Nylon 6/6 6-Position Board to Cable/Wire 0.240 6.10mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

S6B-XH-A-1(LF)(SN) information

JST S6B-XH-A-1(LF)(SN) technical specifications, attributes, parameters and parts with similar specifications to JST S6B-XH-A-1(LF)(SN).

Type
Parameter

Factory Lead Time
13 Weeks

Contact Material
Brass

Mount
Through Hole

Mounting Type
Through Hole, Right Angle

Contact Shape
Square

Insulation Material
Polyamide (PA66), Nylon 6/6

Material
Polyamide

Operating Temperature
-25°C~85°C

Packaging
Bulk

Series
XH

Published
2010

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Press-Fit, Solder

Connector Type
Header

Number of Positions
6

Number of Rows
1

Gender
Male

Voltage - Rated
250V

Additional Feature
SHROUDED, SIDE ENTRY

Fastening Type
Detent Lock

Contact Finish - Mating
Tin

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Contact Type
Male Pin

Mixed Contacts
NO

Option
GENERAL PURPOSE

Terminal Pitch
2.5mm

Insulation Height
0.240 6.10mm

Style
Board to Cable/Wire

Number of Positions Loaded
All

Current Rating
3A

Pitch - Mating
0.098 2.50mm

Insulation Color
Natural

Contact Length - Post
0.134 3.40mm

Shrouding
Shrouded - 4 Wall

UL Flammability Code
94V-0

Insulation Resistance
1GOhm

Material Flammability Rating
UL94 V-0

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for JST S6B-XH-A-1(LF)(SN).

Datasheets:

jstsalesamericainc-sxh001tp06n-datasheets-2394.pdf

S6B-XH-A-1(LF)(SN) Overview

Packaging for this item is Header.There is a mounting type of Through Hole, Right Angle for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the XH Series.Moreover, there are a number of other features, including SHROUDED, SIDE ENTRY, to name just a few.Through Hole is used to mount the part.In this case, the device operates at -25°C~85°C Operating Temperature.

S6B-XH-A-1(LF)(SN) Features

XH series

S6B-XH-A-1(LF)(SN) Applications

There are a lot of JST Sales America Inc.
S6B-XH-A-1(LF)(SN) Rectangular Connectors applications.

Transportation
Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
