Microchip ATSAMA5D27C-D5M-CU
Microchip ATSAMA5D27C-D5M-CU

Microchip ATSAMA5D27C-D5M-CU

Manufacturer No:

ATSAMA5D27C-D5M-CU

Manufacturer:

Microchip

Package:

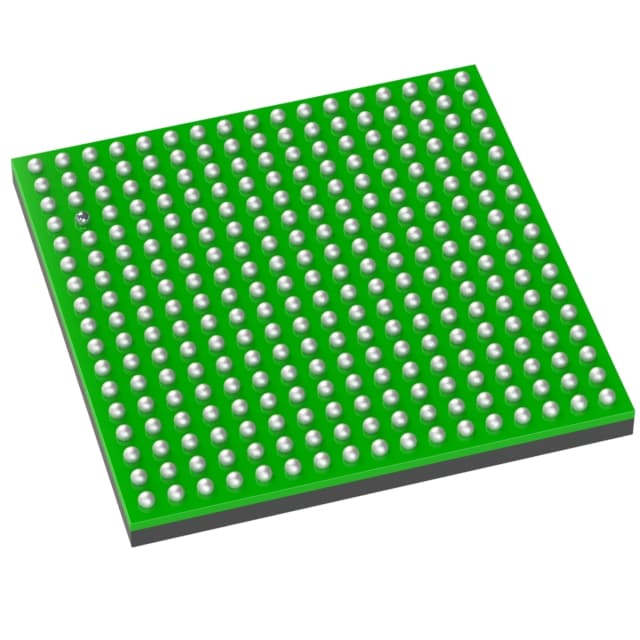

289-LFBGA

Description:

ATSAMA5D27C-D5M

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ATSAMA5D27C-D5M-CU information

Microchip ATSAMA5D27C-D5M-CU technical specifications, attributes, parameters and parts with similar specifications to Microchip ATSAMA5D27C-D5M-CU.

  • Type
  • Parameter
  • ADC Resolution (bits)
  • 12
  • ADC Sampling Rate (ksps)
  • 1000
  • Anti-Tampering Inputs
  • 8
  • Secure Bootloader
  • Yes
  • CAN/CAN-FD
  • 2
  • Type of CAN module
  • CAN
  • Camera Interface
  • Yes
  • Internal DRAM MB (megabyte)
  • 64
  • Ext. DRAM Bus
  • 16
  • Int. DRAM Type
  • DDR2
  • Number of EBIs
  • 1
  • ECC bits on NAND interface
  • 32
  • Ethernet PTP & AVB Support
  • Ethernet PTP
  • FPU
  • Yes
  • Graphic LCD Interface
  • 24
  • Hardware RTCC/RTC
  • Yes
  • I/O Pins Max
  • 128
  • Secure Key Storage (bits)
  • 544
  • L1 Cache Memory (Data) (KB)
  • 32
  • L1 Cache Memory (Instructions) (KB)
  • 32
  • LIN
  • Yes
  • CPU Speed Max MHz (megahertz)
  • 500
  • NAND Interface
  • Yes
  • Operation Voltage Max.(V)
  • 1.32
  • Internal Oscillator
  • 32kHz, 12MHz
  • Part Family
  • SAMA5D2
  • QSPI
  • 2
  • SDIO/SD-CARD/eMMC
  • 2
  • Temp. Sensor
  • Yes
  • Watch Dog Timer
  • Yes
  • Direct Memory Access (DMA) Channels
  • 51
  • Graphics Controller/GPU
  • Yes
  • Quadrature Encoder Interface
  • 2
  • ADC Channels
  • 12
  • Pincount
  • 289
  • Crypto Engine
  • Yes
  • TempRange Min
  • -40
  • TempRange Max
  • 85

Download datasheets and manufacturer documentation for Microchip ATSAMA5D27C-D5M-CU.

User Guide:

Data Sheets:

Application Notes:

Legacy Collaterals:

Errata:

Brochures:

The SAMA5D27C-D5M is a high-performance, low-power Arm Cortex-A5 CPU-based embedded microprocessor (MPU) running up to 500 MHz, with 512Mbit DDR2 memory. The device integrates powerful peripherals for connectivity and user interface applications, and offers advanced security functions (Arm TrustZone® , tamper detection, secure data storage, secure boot, etc.), as well as high-performance crypto accelerators AES, SHA and TRNG.

The SAMA5D2 series is delivered with free Linux® distributions, MPLAB X IDE, MPLAB Harmony v3 and bare metal C examples.

Microchip provides fully tested and validated power management solutions complying with the SAMA5D27C-D5M specific power sequencing needs -enabling a risk-free solution immediately on first power-up. Go to the Treelinktool -> DC/DC converters and select SAMA5D2 and DDR2 memory to find more details.



    Low System Cost and High Value Integration:
  • 512Mbit DDR2, 16-bit databus
  • Peripheral Touch Controller
  • Embedded audio subsystem
  • 0.8mm ball pitch package reduces PCB design complexity
  • Simple power management scheme
    Ultra-Low Power Consumption:
  • Low-power architecture for extensive battery life
  • <200uA retention mode with fast wake-up
  • 5uA in backup mode
    State-of-the-Art Security:
  • Secure Boot
  • Execution of encrypted code with an “on-the-fly” encryption-decryption process
  • Integrity Check Monitor of the memory content
  • Hardware encryption engine
  • Tamper pins and secure key storage
    Extensive Ecosystem:
  • Free Linux® distributions
  • MPLAB X Integrated Development Environment
  • MPLAB Harmony 3
  • Complete set of C examples for bare metal users
  • Multiple third-party software and hardware partners
