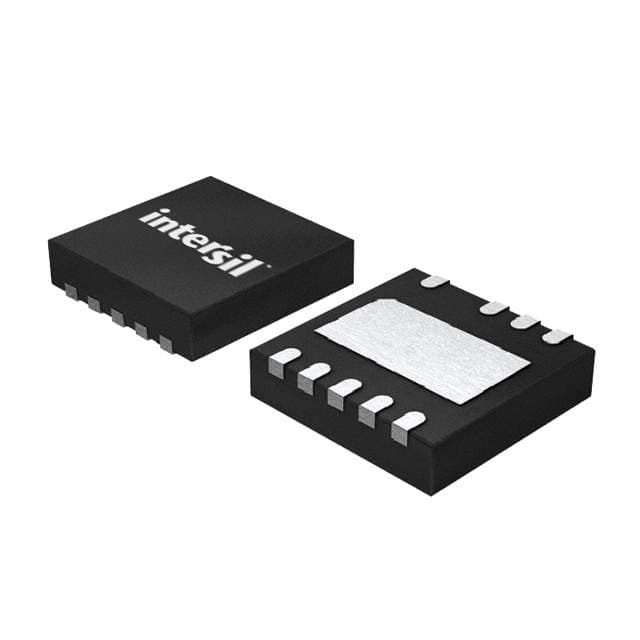

Renesas HIP2120FRTBZ

Manufacturer No:

HIP2120FRTBZ

Manufacturer:

Renesas

Package:

Description:

Active Gate Drivers ICs 2

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HIP2120FRTBZ information

Renesas HIP2120FRTBZ technical specifications, attributes, parameters and parts with similar specifications to Renesas HIP2120FRTBZ.

Type
Parameter

Mount
Surface Mount

Number of Pins
9

Published
2010

JESD-609 Code
e3

Part Status
Active

Number of Terminations
9

Max Operating Temperature
125°C

Min Operating Temperature
-40°C

Subcategory
MOSFET Drivers

Technology
CMOS

Terminal Position
DUAL

Number of Functions
1

Supply Voltage
12V

Terminal Pitch
0.8mm

Pin Count
9

Temperature Grade
AUTOMOTIVE

Max Supply Voltage
14V

Min Supply Voltage
8V

Power Dissipation-Max
3.1W

Nominal Supply Current
4mA

Max Supply Current
4mA

Current - Output
2A

Rise Time
600ns

Fall Time (Typ)
600 ns

Number of Drivers
2

High Side Driver
YES

Turn Off Time
60 µs

Length
4mm

Height Seated (Max)
0.75mm

Width
4mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas HIP2120FRTBZ.

Datasheets:

intersil-hip2120frtbz-datasheets-7539.pdf

intersil-hip2120frtbz-datasheets-7360.pdf

HIP2120FRTBZ Overview

Configuration is supported by 2 drivers.The configuration starts with 9 terminations.In this case, Surface Mount indicates how the device is to be mounted.As a result, it is configured with 9 pins when it is designed.With a supply voltage of 12V, it is designed to operate.Mosfet driver utilizes the interface IC HALF BRIDGE BASED MOSFET DRIVER.There are several useful electronic components within its subcategory MOSFET Drivers.The board has a total of 9 component pins.125°C is the maximum operating temperature that can be tolerated.Temperatures below -40°C are allowable as a minimum.For higher stability, the supply current should be kept at 4mA.For operation, it requires a voltage of 14V.This device operates at 8V as the minimum supply voltage.As a result, it outputs a 2A current.

HIP2120FRTBZ Features

2 drivers
9 pins

HIP2120FRTBZ Applications

There are a lot of Intersil (Renesas Electronics America)
HIP2120FRTBZ gate drivers applications.

High-speed communications
RGB applications
Broadcast equipment
Active filtering
Head-up and Head mounted displays
High current laser/LED systems
LCD/LCoS/DLP portable and embedded pico projectors
Multicolor LED/laser displays
Smart Phones
Portable Navigation Devices
