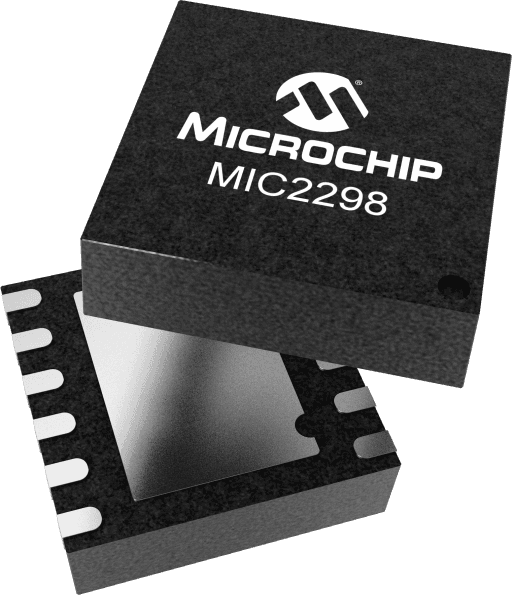

Microchip MIC2298-15YML-TR
Manufacturer No:
MIC2298-15YML-TR
Manufacturer:
Package:
12-VFDFN Exposed Pad, 12-MLF®
Description:
7W 1MHz White LED Driver
Quantity:
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
MIC2298-15YML-TR Information
Microchip MIC2298-15YML-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC2298-15YML-TR.
- Type
- Parameter
- Topology
- Boost
- +Vin min (V)
- 2.5
- +Vin max (V)
- 10
- Output Current
- 6A BJT
- Dimming
- PWM / Analog
- Package
- VDFN
- Product Type
- LED Backlight
- VOUT
- 30
- llim Typ (A)
- 4.75
- llim Max (A)
- 8
- Type
- Parameter
- lq Typ
- 15mA
- Vfb (V)
- 0.2
- Tol Typ %
- ±8
- Duty Cycle Max
- 0.9
- Freq (Hz)
- 1.0M
- OVP
- Yes
- VEN (V)
- 1.5
- EN
- Yes
- Soft Start
- Yes
- UVLO Typ (V)
- 2.1
Download datasheets and manufacturer documentation for Microchip MIC2298-15YML-TR.
User Guide:
Data Sheets:
The MIC2298 is a high power boost-switching regulator that is optimized for constant-current control. The MIC2298 is capable of driving up to two series 1A white LED for photoflash, flashlight and other applications. The feedback voltage is only 200mV, minimizing ballast power dissipa-tion in constant-current control applications for improved operating efficiency.
The MIC2298 has a brightness pin that allows for a programmable torch mode as well full flash with a single pin when driving high current LEDs.
The MIC2298 implements a constant frequency 1MHz PWM control scheme to make the smallest possible design.
The 2.5V to 10V input voltage range of MIC2298 allows direct operation from 1- and 2-cell Li-Ion as well as 3- to 6-cell NiCad/NiMH/Alkaline battery sources. Maximum battery life is assured with a low 1µA shutdown current.
- 3.5A minimum switch current delivers at least 7W of output power over temperature
- 200mV ±10% feedback voltage
- 2.5V to 10V input voltage
- Output voltage up to 30V (max)
- Output over voltage protection (OVP)
- 1MHz operation
- Programmable output current
- <1% line regulation
- 1µA shutdown current
- Over-temperature protection
- Externally programmable soft-start
- Under voltage lockout (UVLO)
- -40°C to +125°C junction temperature range
