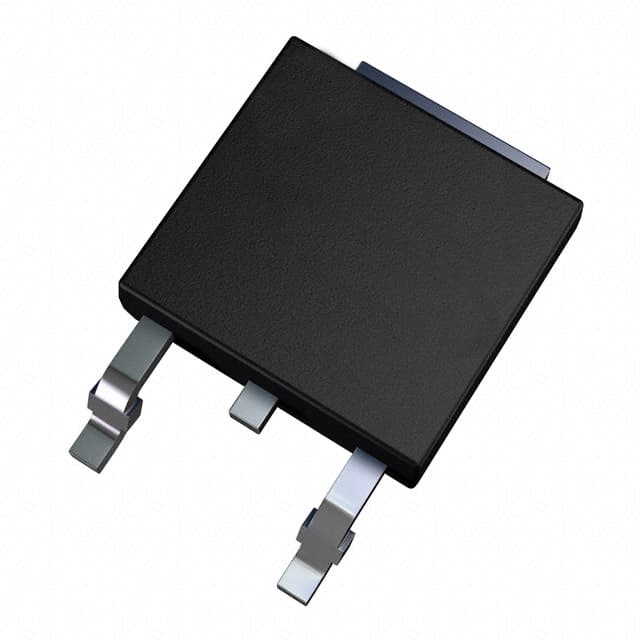

AOS AOD464

Manufacturer No:

AOD464

Manufacturer:

AOS

Package:

TO-252-3, DPak (2 Leads + Tab), SC-63

Description:

MOSFET (Metal Oxide) N-Channel Tape & Reel (TR) 28m ? @ 20A, 10V ±25V 2445pF @ 25V 46nC @ 10V 105V TO-252-3, DPak (2 Leads + Tab), SC-63

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AOD464 information

AOS AOD464 technical specifications, attributes, parameters and parts with similar specifications to AOS AOD464.

Type
Parameter

Factory Lead Time
18 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
TO-252-3, DPak (2 Leads + Tab), SC-63

Number of Pins
3

Operating Temperature
-55°C~175°C TJ

Packaging
Tape & Reel (TR)

Published
2010

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Technology
MOSFET (Metal Oxide)

Number of Elements
1

Power Dissipation-Max
2.3W Ta 100W Tc

Power Dissipation
2.3W

FET Type
N-Channel

Rds On (Max) @ Id, Vgs
28m ? @ 20A, 10V

Vgs(th) (Max) @ Id
4V @ 250?A

Input Capacitance (Ciss) (Max) @ Vds
2445pF @ 25V

Current - Continuous Drain (Id) @ 25°C
40A Tc

Gate Charge (Qg) (Max) @ Vgs
46nC @ 10V

Drain to Source Voltage (Vdss)
105V

Drive Voltage (Max Rds On,Min Rds On)
6V 10V

Vgs (Max)
±25V

Continuous Drain Current (ID)
40A

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for AOS AOD464.

AOD464 Overview

Input capacitance, CI, is defined as the capacitance between two input terminals of an op amp with one input grounded, and the input capacitance of this device is 2445pF @ 25V.This device has a continuous drain current (ID) of [40A], which is its maximum continuous current.Gate-source voltage, or VGS, is the voltage across a FET transistor's gate-source terminal, and can be 25V volts.In order to operate this transistor, a voltage of 105V is needed from the drain to the source (Vdss).Its overall power consumption can be reduced by using drive voltage (6V 10V).

AOD464 Features

a continuous drain current (ID) of 40A
a 105V drain to source voltage (Vdss)

AOD464 Applications

There are a lot of Alpha & Omega Semiconductor Inc.
AOD464 applications of single MOSFETs transistors.

Uninterruptible Power Supply
AC-DC Power Supply
Synchronous Rectification for ATX 1 Server I Telecom PSU
Motor drives and Uninterruptible Power Supplies
Micro Solar Inverter
DC/DC converters
Power Tools
Motor Drives and Uninterruptible Power Supples
Synchronous Rectification
Battery Protection Circuit
