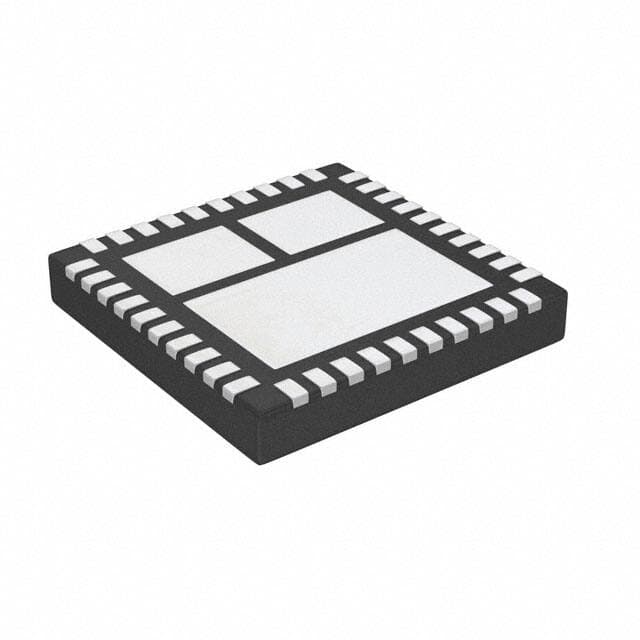

ONSEMI NCP3230MNTXG

Manufacturer No:

NCP3230MNTXG

Manufacturer:

ONSEMI

Package:

40-VFQFN Exposed Pad

Description:

40 Terminals 4.5V DC DC Voltage Regulator SWITCHING REGULATOR 1 Outputs 500kHz Tape & Reel (TR) 30A 40-VFQFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NCP3230MNTXG information

ONSEMI NCP3230MNTXG technical specifications, attributes, parameters and parts with similar specifications to ONSEMI NCP3230MNTXG.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 23 hours ago)

Factory Lead Time
4 Weeks

Mounting Type
Surface Mount

Package / Case
40-VFQFN Exposed Pad

Surface Mount
YES

Operating Temperature
-40°C~90°C TA

Packaging
Tape & Reel (TR)

Published
2016

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
40

Terminal Finish
Tin (Sn)

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Terminal Pitch
0.5mm

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
30

JESD-30 Code
S-XQCC-N40

Function
Step-Down

Number of Outputs
1

Voltage - Input (Max)
18V

Voltage - Input (Min)
4.5V

Input Voltage-Nom
12V

Analog IC - Other Type
SWITCHING REGULATOR

Output Configuration
Positive

Current - Output
30A

Voltage - Output (Min/Fixed)
0.6V

Topology
Buck

Control Mode
VOLTAGE-MODE

Frequency - Switching
500kHz

Control Technique
PULSE WIDTH MODULATION

Synchronous Rectifier
Yes

Voltage - Output (Max)
5.4V

Length
6mm

Width
6mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ONSEMI NCP3230MNTXG.

Datasheets:

onsemiconductor-ncp3230mntxg-datasheets-1673.pdf

ReachStatement:

onsemiconductor-6svp22m-reachstatement-6839.pdf

NCP3230MNTXG Overview

It uses the Tape & Reel (TR) package in order to optimize the performance of this voltage regulator. During the development of this harley voltage regulator, 40 terminations were made. A SWITCHING REGULATOR type of analog IC is equipped with this regulator voltage, which is the type of analog IC that is used in it. The harley voltage regulator is available as a 40-VFQFN Exposed Pad package to save space. The voltage regulator is configured with 1 outputs. As you can see, this DC DC switching regulator generates Adjustable output on its output pins. A Surface Mount mounting is required for this switching regulator. Voltage regulators should be operated at -40°C~90°C TA temperature while operating. DC-DC switching regulators reach 500kHz switching frequencies. Despite its low input voltage, this voltage regulator can operate. In this adjusting voltage regulator, the output voltage (Min/Fixed) equates to 0.6V. Featuring a 30A output current, dc to dc voltage regulator offers maximum design flexibility. There is a voltage regulator maximum input voltage of 18V. This voltage regulator's peak reflow temperature is so high as to make it virtually indestructible. For operation, voltage regulator provides a nominal input voltage of 12V. By using 5.4V as the maximum output voltage, adjusting voltage regulator is easy to operate.

NCP3230MNTXG Features

1 outputs
Peak reflow temperature (Cel) of 260

NCP3230MNTXG Applications

There are a lot of ON Semiconductor
NCP3230MNTXG Voltage Regulators applications.

Linear guide
Ball screw pair
Computer application technology
Network technology
Automation technology
CMM
Various precision measuring instruments
Various precision measuring detectors
Flaw detection equipment
Balance equipment
