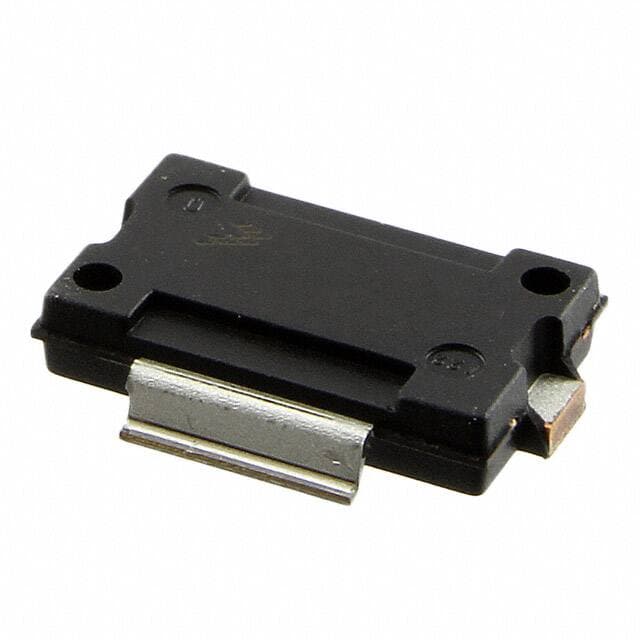

NXP AFT09MS031GNR1
Manufacturer No:
AFT09MS031GNR1
Manufacturer:
Package:
TO-270BA
Description:
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
AFT09MS031GNR1 information
NXP AFT09MS031GNR1 technical specifications, attributes, parameters and parts with similar specifications to NXP AFT09MS031GNR1.
- Type
- Parameter
- Factory Lead Time
- 10 Weeks
- Package / Case
- TO-270BA
- Surface Mount
- YES
- Packaging
- Tape & Reel (TR)
- Published
- 2006
- JESD-609 Code
- e3
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- ECCN Code
- EAR99
- Terminal Finish
- Matte Tin (Sn)
- Voltage - Rated
- 40V
- HTS Code
- 8541.29.00.40
- Subcategory
- FET General Purpose Power
- Peak Reflow Temperature (Cel)
- 260
- Frequency
- 870MHz
- Time@Peak Reflow Temperature-Max (s)
- 40
- Base Part Number
- AFT09MS031
- Operating Temperature (Max)
- 150°C
- Configuration
- Single
- Current - Test
- 500mA
- Polarity/Channel Type
- N-CHANNEL
- Transistor Type
- LDMOS
- Gain
- 17.2dB
- Power - Output
- 31W
- Power Dissipation-Max (Abs)
- 317W
- Voltage - Test
- 13.6V
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for NXP AFT09MS031GNR1.
Environmental Information:
PCN Design/Specification:
PCN Packaging:
AFT09MS031GNR1 Description
AFT09MS031GNR1 transistor is an N-channel MOS field-effect RF power transistor designed to be used in signal applications. The special low thermal resistance packaging makes AFT09MS031GNR1 MOSFET suitable for ISM applications in which reliability and durability are essential. NXP USA Inc. AFT09MS031GNR1 has the common source configuration.
AFT09MS031GNR1 Features
Gold metalization
Excellent thermal stability
Common source configuration
Thermally enhanced packaging
AFT09MS031GNR1 Applications
ISM applications
DC large signal applications
