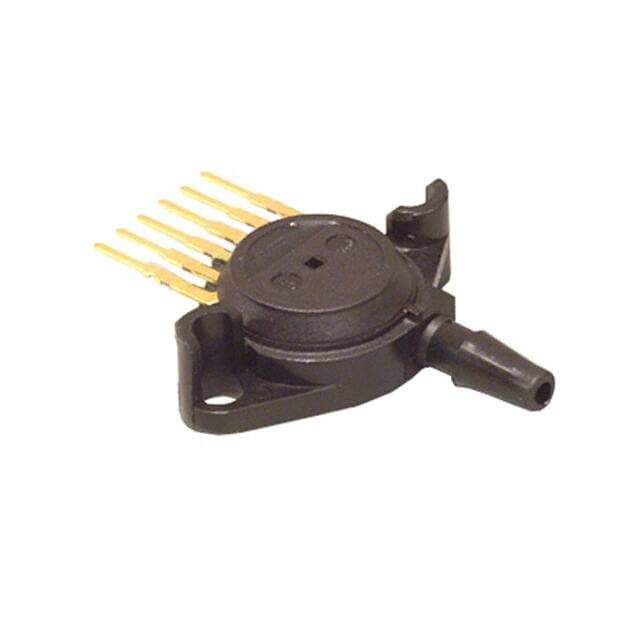

NXP MPX4100AP

Manufacturer No:

MPX4100AP

Manufacturer:

NXP

Package:

6-SIP Module

Description:

MPX4100A Series Absolute Pressure Sensor Analog Voltage -40°C~125°C 2.9PSI ~ 15.23PSI (20kPa ~ 105kPa) Barbed ±1.8% 0.3 V ~ 4.9 V 4.85V~5.35V Temperature Compensated

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MPX4100AP information

NXP MPX4100AP technical specifications, attributes, parameters and parts with similar specifications to NXP MPX4100AP.

Type
Parameter

Factory Lead Time
8 Weeks

Package / Case
6-SIP Module

Surface Mount
NO

Mounting Feature
THROUGH HOLE MOUNT

Operating Temperature
-40°C~125°C

Series
MPX4100A

Published
2008

Feature
Temperature Compensated

Part Status
Not For New Designs

Moisture Sensitivity Level (MSL)
Not Applicable

ECCN Code
EAR99

Applications
Board Mount

HTS Code
8542.39.00.01

Voltage - Supply
4.85V~5.35V

Output
0.3 V ~ 4.9 V

Termination Style
PC Pin

Body Length or Diameter
29.46mm

Body Breadth
8 mm

Output Type
Analog Voltage

Accuracy
±1.8%

Response Time
1000 ?s

Operating Pressure
2.9PSI ~ 15.23PSI (20kPa ~ 105kPa)

Pressure Type
Absolute

Port Style
Barbed

Linearity
1.8 %

Maximum Pressure
58.02PSI (400kPa)

Sensors/Transducers Type
PRESSURE SENSOR,PEIZORESISTIVE

Housing
PLASTIC

Pressure Range-Max
15.2 Psi

Offset-Nom
0.30V

Sensitivity (mV/V)
54 mV/V

Body Height
28.7mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NXP MPX4100AP.

MPX4100AP Description

The MPX4100AP Manifold Absolute Pressure (MAP) sensor for engine control is designed to sense absolute air pressure within the intake manifold. This measurement can be used to compute the amount of fuel required for each cylinder. The small form factor and high reliability of on-chip integration make the MAP sensor a logical and economical choice for automotive system designers. The MPX4100AP piezoresistive transducer is a state-of-the-art, monolithic, signal-conditioned, silicon pressure sensor. This sensor combines advanced micromachining techniques, thin film metallization, and bipolar semiconductor processing to provide an accurate, high-level analog output signal that is proportional to applied pressure.

MPX4100AP Features

1.8% Maximum Error Over 0° to 85°C

Specifically Designed for Intake Manifold Absolute Pressure Sensing in Engine Control Systems

Ideally Suited for Microprocessor Interfacing or Microcontroller Based Systems

Temperature Compensated Over -40°C to +125°C

Durable Epoxy Unibody Element

Ideal for Non-Automotive Applications

Available as Standard Fluorosilicone Gel (MPXA4100A, MPX4100A) or Media Resistant Gel (MPXAZ4100A)

Durable Thermoplastic (PPS) Surface Mount Package

MPX4100AP Applications

Manifold Sensing for Automotive Systems

Also Ideal for Non-Automotive Applications
