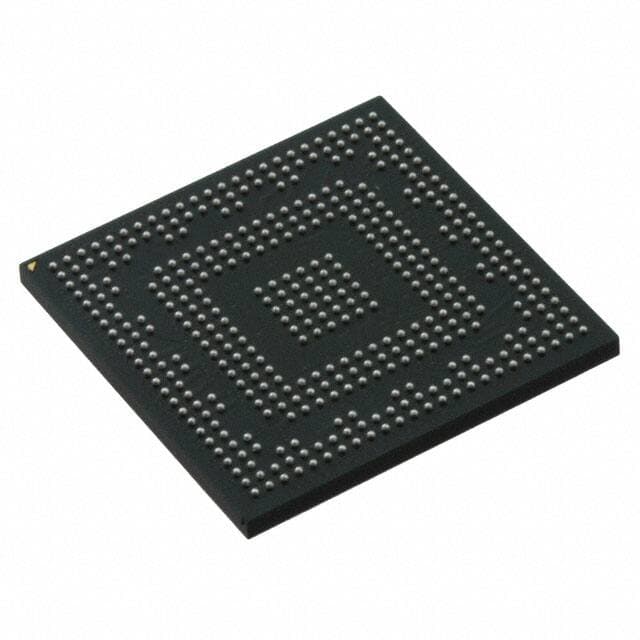

NXP MCIMX27VOP4AR2
NXP MCIMX27VOP4AR2

NXP MCIMX27VOP4AR2

Manufacturer No:

MCIMX27VOP4AR2

Manufacturer:

NXP

Package:

404-LFBGA

Description:

0.65mm ARM926EJ-S 32-bit Microprocessor i.MX27 Series MCIMX27 1.45V 404-LFBGA

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MCIMX27VOP4AR2 information

NXP MCIMX27VOP4AR2 technical specifications, attributes, parameters and parts with similar specifications to NXP MCIMX27VOP4AR2.

  • Type
  • Parameter
  • Factory Lead Time
  • 15 Weeks
  • Package / Case
  • 404-LFBGA
  • Surface Mount
  • YES
  • Operating Temperature
  • -20°C~85°C TA
  • Packaging
  • Tape & Reel (TR)
  • Series
  • i.MX27
  • Published
  • 2004
  • JESD-609 Code
  • e1
  • Part Status
  • Not For New Designs
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 404
  • ECCN Code
  • 5A992.C
  • Terminal Finish
  • Tin/Silver/Copper (Sn/Ag/Cu)
  • HTS Code
  • 8542.31.00.01
  • Technology
  • CMOS
  • Terminal Position
  • BOTTOM
  • Terminal Form
  • BALL
  • Peak Reflow Temperature (Cel)
  • 260
  • Supply Voltage
  • 1.45V
  • Terminal Pitch
  • 0.65mm
  • Time@Peak Reflow Temperature-Max (s)
  • 40
  • Base Part Number
  • MCIMX27
  • JESD-30 Code
  • S-PBGA-B404
  • Supply Voltage-Max (Vsup)
  • 1.52V
  • Speed
  • 400MHz
  • uPs/uCs/Peripheral ICs Type
  • MICROPROCESSOR
  • Core Processor
  • ARM926EJ-S
  • Clock Frequency
  • 32MHz
  • Bit Size
  • 32
  • Address Bus Width
  • 26
  • Boundary Scan
  • YES
  • Low Power Mode
  • YES
  • External Data Bus Width
  • 32
  • Format
  • FIXED POINT
  • Integrated Cache
  • YES
  • Voltage - I/O
  • 2.0V 2.5V 2.7V 3.0V
  • Ethernet
  • 10/100Mbps (1)
  • Number of Cores/Bus Width
  • 1 Core 32-Bit
  • Graphics Acceleration
  • Yes
  • RAM Controllers
  • DDR
  • USB
  • USB 2.0 + PHY (3)
  • Additional Interfaces
  • 1-Wire, AC97, I2C, I2S, IDE, MMC/SD, SPI, SSI, UART
  • Co-Processors/DSP
  • Security; SAHARAH2
  • Security Features
  • Cryptography, Random Number Generator, RTIC, Secure Fusebox, Secure Memory
  • Display & Interface Controllers
  • Keypad, LCD
  • Length
  • 17mm
  • Height Seated (Max)
  • 1.4mm

Download datasheets and manufacturer documentation for NXP MCIMX27VOP4AR2.

Datasheets:

Environmental Information:

MCIMX27VOP4AR2 Overview


The embedded microprocessor ships overseas conveniently packed in 404-LFBGA. A high level of reliability is provided by using an advanced packaging method Tape & Reel (TR). In the CPU, there are 1 Core 32-Bit cores and 1 Core 32-Bit bus width. It is important to understand the operating temperature around -20°C~85°C TA. i.MX27 is its series number. Core-wise, this CPU has a ARM926EJ-S processor. It has DDR RAM controllers. A 1-Wire, AC97, I2C, I2S, IDE, MMC/SD, SPI, SSI, UART interface has been added to this microprocessor in order to serve the user better. As far as I/O is concerned, this CPU runs at 2.0V 2.5V 2.7V 3.0V. There is MICROPROCESSOR MICROPROCESSOR in the uPs, uCs, or peripheral ICs categories. To find variants of the microprocessor, try searching with MCIMX27. A total of 404 terminations have been recorded. Turn on the cpu microprocessor and let it run with a 1.45V voltage supply. There are 32 bits in its architecture. With a maximum supply current of 1.52V, it has a maximum power consumption. The CPU's external data bus width is 32. In this CPU microprocessor, the clock frequency is 0 Hz.

MCIMX27VOP4AR2 Features


ARM926EJ-S Core
32-Bit Structure


MCIMX27VOP4AR2 Applications


There are a lot of NXP USA Inc.
MCIMX27VOP4AR2 Microprocessor applications.


  • Toys
  • Robots
  • Radio
  • Television
  • Heater/Fan
  • Calculator
  • Kindle
  • Christmas lights
  • 3D printers
  • Washing machine
