ADI ADG824BCPZ-REEL7
ADI ADG824BCPZ-REEL7

ADI ADG824BCPZ-REEL7

Manufacturer No:

ADG824BCPZ-REEL7

Manufacturer:

ADI

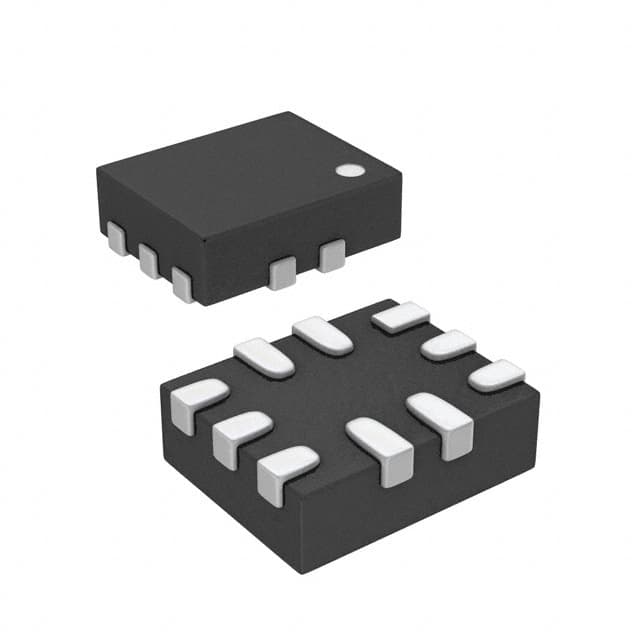

Package:

10-UFQFN, CSP

Description:

9.5ns, 7.7ns SPDT 800mOhm QUAD Analog Switches BREAK-BEFORE-MAKE ADG824 10 Pins 200pA Typ 1.8V 10-UFQFN, CSP

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ADG824BCPZ-REEL7 information

ADI ADG824BCPZ-REEL7 technical specifications, attributes, parameters and parts with similar specifications to ADI ADG824BCPZ-REEL7.

  • Type
  • Parameter
  • Lifecycle Status
  • PRODUCTION (Last Updated: 1 week ago)
  • Factory Lead Time
  • 8 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 10-UFQFN, CSP
  • Number of Pins
  • 10
  • Turn Off Delay Time
  • 8.6 ns
  • Operating Temperature
  • -40°C~85°C TA
  • Packaging
  • Tape & Reel (TR)
  • JESD-609 Code
  • e4
  • Pbfree Code
  • no
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 10
  • ECCN Code
  • EAR99
  • Resistance
  • 800mOhm
  • Terminal Finish
  • Nickel/Palladium/Gold (Ni/Pd/Au)
  • Terminal Position
  • QUAD
  • Peak Reflow Temperature (Cel)
  • 260
  • Number of Functions
  • 2
  • Supply Voltage
  • 1.8V
  • Base Part Number
  • ADG824
  • Pin Count
  • 10
  • Number of Outputs
  • 4
  • Max Supply Voltage
  • 3.6V
  • Min Supply Voltage
  • 1.65V
  • Nominal Supply Current
  • 3nA
  • Max Supply Current
  • 500mA
  • Turn On Delay Time
  • 10.8 ns
  • Data Rate
  • 180 Mbps
  • Number of Inputs
  • 2
  • -3db Bandwidth
  • 90MHz
  • On-State Resistance (Max)
  • 800mOhm
  • Multiplexer/Demultiplexer Circuit
  • 2:1
  • Off-state Isolation-Nom
  • 71 dB
  • Current - Leakage (IS(off)) (Max)
  • 200pA Typ
  • Channel Capacitance (CS(off), CD(off))
  • 25pF
  • On-state Resistance Match-Nom
  • 0.01Ohm
  • Switch Circuit
  • SPDT
  • Switch Time (Ton, Toff) (Max)
  • 9.5ns, 7.7ns
  • Charge Injection
  • 27pC
  • Channel-to-Channel Matching (ΔRon)
  • 3m Ω
  • Switching
  • BREAK-BEFORE-MAKE
  • Switch-on Time-Max
  • 19.3ns
  • Voltage - Supply, Single (V+)
  • 1.65V~3.6V
  • Drain to Source Resistance
  • 800mOhm
  • On-State Resistance
  • 500mOhm

Download datasheets and manufacturer documentation for ADI ADG824BCPZ-REEL7.

Datasheets:

ConflictMineralStatement:

ADG824BCPZ-REEL7 Overview


Presented in 10-UFQFN, CSP, this electrical component is convenient for overseas shipping. High reliability is ensured by the advanced packaging method Tape & Reel (TR). Surface Mount is where this multiplexer is located. Multiplexer and demultiplexer circuits have a number 2:1. Increasing operating temperature to around -40°C~85°C TA. Totally, there are 10 terminations. A high-quality output is provided by the electrical component's 1 channels. It is safe to turn on and run the electronic component with a 1.8V voltage supply. A total of 10 pins are injected into the electrical part body. A SPDT switching circuit is used for these analog switches. Using the ADG824 search parameter, you can discover variants of the switch. In this multiplexer, the internal resistance is 800mOhm. For details about the functions of 10 pins, please refer to the datasheets. It is generally not recommended to supply a voltage higher than 3.6V to the switch device in normal circumstances. 1.65V is the lowest voltage the electrical component should receive. An analogue multiplexer drains from a single voltage supply at 1.65V~3.6V. Putting voltage greater than 500mA on the multiplexer may cause damage. The 2 inputs need to be operated in order to work. A Drain to Source resistance of 800mOhm is shown for this electronic part. In this digital multiplexer, there are 4 outputs.

ADG824BCPZ-REEL7 Features


1 Channels
Switch Circuit: SPDT
-3db Bandwidth: 90MHz
Drain-to-Source resistance: 800mOhm


ADG824BCPZ-REEL7 Applications


There are a lot of Analog Devices Inc.
ADG824BCPZ-REEL7 Analog Switches & Multiplexers ICs applications.


  • Precision data acquisition
  • Battery-powered systems
  • Sample-and-hold systems
  • Communication systems
  • Data Acquisition Systems
  • Relay Replacement
  • Battery Powered Systems
  • Existing multiplexer applications (both fault-protected and nonfault-protected)
  • New designs requiring multiplexer functions
  • Cellular phones
