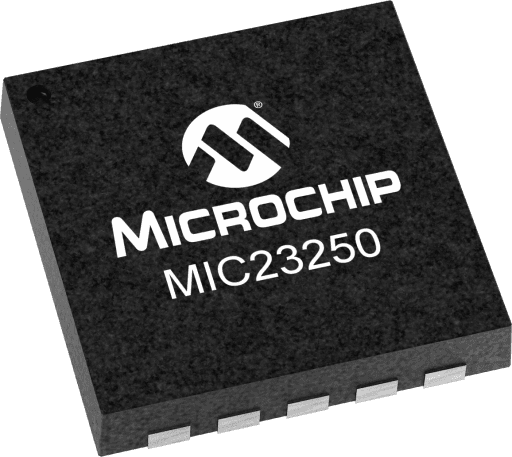

Microchip MIC23250-W4YMT-TR

Manufacturer No:

MIC23250-W4YMT-TR

Manufacturer:

Microchip

Package:

10-UFDFN, 10-TMLF®

Description:

High Efficiency Dual 400mA Synchronous Buck Switcher

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC23250-W4YMT-TR information

Microchip MIC23250-W4YMT-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC23250-W4YMT-TR.

Type
Parameter

Target Application
Multi-platform

Target Processor
N/A

VIN Max V (volt)
5.5

VIN Min (V) V (volt)
2.7

# of Regulated Outputs (Bucks)
2

Maximum Buck Output I (A)
0.4

Buck Switching Typ Frequency (kHz)
4000

Duty Cycle Max (%)
100

# of Regulated Outputs (Linear)
0

Maximum LDO Output I (mA)
0

RESET Output
No

Auto PFM Mode
No

ϴja (°C/W)
65

Download datasheets and manufacturer documentation for Microchip MIC23250-W4YMT-TR.

Application Notes:

ca8707b5a492f0c29b1ad61a98751203.pdf

Data Sheets:

2d204a71aa95668a0c79f7257faadf11.pdf

The MIC23250 is a high efficiency 4MHz dual 400mA synchronous buck regulator with HyperLight Load^® mode. HyperLight Load^® provides very high efficiency at light loads and ultra-fast transient response which is perfectly suited for supplying processor core voltages. An additional benefit of this proprietary architecture is very low output ripple voltage throughout the entire load range with the use of small output capacitors.

The devices is designed for use with a 1µH inductor and a 4.7µF output capacitor that enables a sub-1mm height.

The MIC23250 has a very low quiescent current of 33µA with both outputs enabled and can achieve over 85% efficiency at 1mA. At higher loads the MIC23250 provides a constant switching frequency around 4MHz while providing peak efficiencies up to 94%

The MIC23250 is designed to operate over the junction operating range from -40°C to +125°C.

Input voltage range: 2.7V to 5.5V

Dual output current 400mA

Up to 94% peak efficiency and 85% efficiency at 1mA

33µA dual quiescent current

1µH inductor with a 4.7µF capacitor

4MHz in PWM operation

Ultra fast transient response

20mVpp ripple in HyperLight Load® mode

3mV output voltage ripple in full PWM mode

0.01µA shutdown current

-40°C to +125°C junction temperature range
