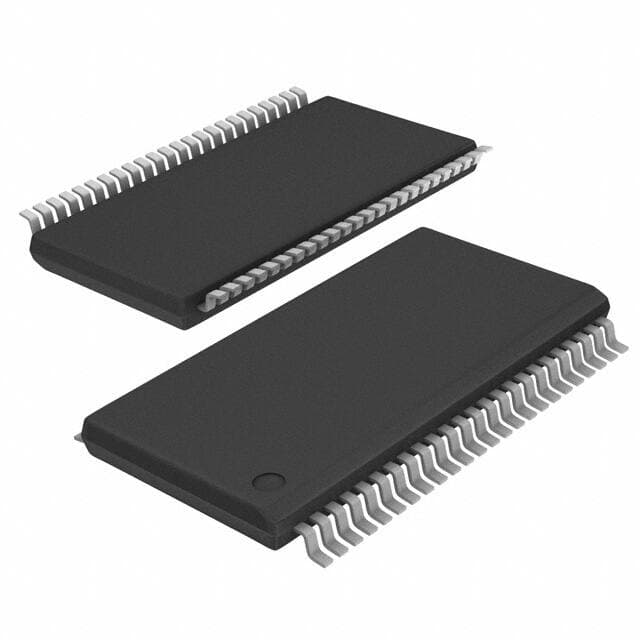

TI 74ALVTH16244VRE4

Manufacturer No:

74ALVTH16244VRE4

Manufacturer:

Package:

48-TFSOP (0.173, 4.40mm Width)

Description:

DUAL Buffer, Non-Inverting 2.3V~2.7V 3V~3.6V 3-State Buffers 74ALVTH Series 74ALVTH16244 48 Pins 32mA 64mA 48-TFSOP (0.173, 4.40mm Width)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

74ALVTH16244VRE4 information

TI 74ALVTH16244VRE4 technical specifications, attributes, parameters and parts with similar specifications to TI 74ALVTH16244VRE4.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 4 days ago)

Factory Lead Time
6 Weeks

Contact Plating
Gold

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
48-TFSOP (0.173, 4.40mm Width)

Number of Pins
48

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

Series
74ALVTH

JESD-609 Code
e4

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
48

Additional Feature
ALSO OPERATES AT 3.3V SUPPLY

Subcategory
Bus Driver/Transceivers

Packing Method
TR

Technology
BICMOS

Voltage - Supply
2.3V~2.7V 3V~3.6V

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
4

Base Part Number
74ALVTH16244

Pin Count
48

Output Type
3-State

Number of Elements
4

Polarity
Non-Inverting

Supply Voltage-Max (Vsup)
3.6V

Power Supplies
3.3V

Supply Voltage-Min (Vsup)
2.3V

Load Capacitance
50pF

Number of Ports
2

Number of Bits
4

Propagation Delay
2.5 ns

Quiescent Current
5mA

Turn On Delay Time
5.9 ns

Logic Function
AND, Buffer, Inverting

Current - Output High, Low
32mA 64mA

Logic Type
Buffer, Non-Inverting

Control Type
ENABLE LOW

Number of Input Lines
16

Count Direction
UNIDIRECTIONAL

Translation
N/A

Height
1.2mm

Length
9.7mm

Download datasheets and manufacturer documentation for TI 74ALVTH16244VRE4.

74ALVTH16244VRE4 Overview

This package uses 48-TFSOP (0.173, 4.40mm Width). A logical driver using the Tape & Reel (TR) external packaging is used in this application. Buffers like this are available in the Surface Mount-mount form factor. Buffer, Non-Inverting logic integrated circuits see a wide range of applications, as shown here. There is a supply voltage of 2.3V~2.7V 3V~3.6V applied to this ethernet transceiver in order to power it. In ambient temperatures up to -40°C~85°C TA, this voltage buffer is designed to operate. There is a 32mA 64mA output current for the high and low logic states. A total of 3-State outputs can be dealt with by transceiver. It is necessary to use all 4 elements. A transceiver of the 74ALVTH series, it belongs to the 74ALVTH series. Thebuffer features 48 terminations that serve different purposes. 2.5V is the required supply voltageWith the electrical component, 48 pins are set. This logical driver is suitable for Surface Mount different applications. In total, it has 48 pins. The transceiver features 2 ports for enhanced functionality. In addition to these electrical components, you can also search for them on 74ALVTH16244. Bus Driver/Transceiverss are specifically types of them. During quiescent state, the electronic part uses 5mA. The recommended power supply is 3.3V. TR packages are usually sold. For the transceiver to be powered, it must have a minimum voltage of 2.3V. This electronic part includes 4 efficient bits that can be used to increase efficiency. With ALSO OPERATES AT 3.3V SUPPLY, you can better serve your customers. This unit is more cost-effective for transmitting signals due to its 16 lines level input capability. Buffer ICs are controlled by ENABLE LOW control technology during startup.

74ALVTH16244VRE4 Features

Bus Driver/Transceivers
ALSO OPERATES AT 3.3V SUPPLY

74ALVTH16244VRE4 Applications

There are a lot of Texas Instruments
74ALVTH16244VRE4 Buffers & Transceivers applications.

Cordless telephone
Desktop PC
Notebook
Pocket PC
Desktop radio
Clock radio
Tuner
Portable radio
Car radio
Satellite radio receiver
