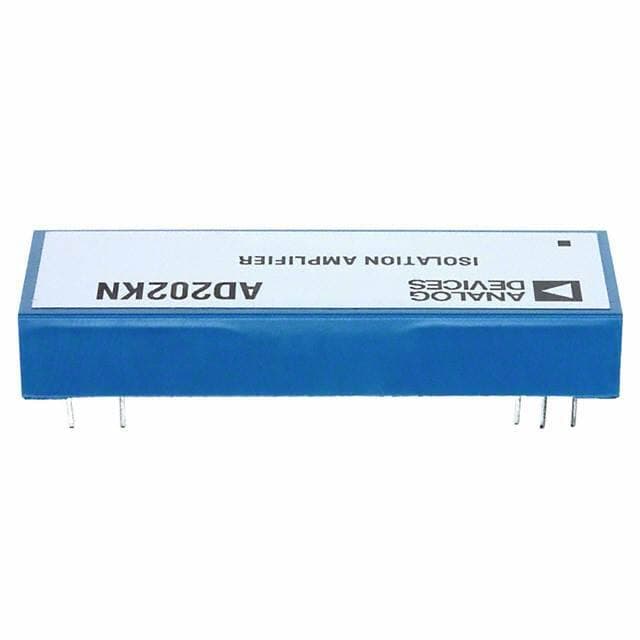

ADI AD202KN

Manufacturer No:

AD202KN

Manufacturer:

ADI

Package:

38-DIP (0.600, 15.24mm), 11 Leads

Description:

1 Channels 400?A per Channel 30pA 130 dB Instrumentational OP Amps 15V AD202 38-DIP (0.600, 15.24mm), 11 Leads

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AD202KN information

ADI AD202KN technical specifications, attributes, parameters and parts with similar specifications to ADI AD202KN.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 3 weeks ago)

Factory Lead Time
26 Weeks

Contact Plating
Lead, Tin

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
38-DIP (0.600, 15.24mm), 11 Leads

Number of Pins
10

Supplier Device Package
10-PDIP

Operating Temperature
0°C~70°C

Packaging
Tube

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Resistance
2GOhm

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Base Part Number
AD202

Operating Supply Voltage
15V

Number of Elements
1

Number of Channels
1

Number of Circuits
2

Max Supply Voltage
16.5V

Min Supply Voltage
13.5V

Operating Supply Current
5mA

Nominal Supply Current
35mA

Current - Supply
5mA

Amplifier Type
Isolation

Common Mode Rejection Ratio
130 dB

Current - Input Bias
30pA

Output Current per Channel
400?A

Input Offset Voltage (Vos)
5mV

Bandwidth
5 kHz

Gain Bandwidth Product
2kHz

Voltage Gain
40dB

Voltage - Input Offset
5mV

Current - Output / Channel
400?A

Isolation Voltage
1.5kV

Number of Amplifiers
1

Height
8.52mm

Length
53.3mm

Width
17.8mm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for ADI AD202KN.

AD202KN Overview

Packaging for the buffer amplifier is in the form of a 38-DIP (0.600, 15.24mm), 11 Leads case. A Isolation-type buffer amplifier is shown here. There is a Tube case that is delivered with the instrumentation amplifiers. An 10-pin op amp ic is included in the package. With regards to the offset voltage of the input, buffer amplifier is rated at 5mV. For this electrical component, the recommended mounting type is Through Hole, which is the most common. The buffer amplifier functions well at 0°C~70°C as far as operating temperature is concerned. Using a supply current of 5mA , this buffer op amp will be able to operate. Keeping the voltage gain at 40dB is the best course of action. The buffer amp consists of 2 circuits in total. 1 channels are available on the instrumentation amplifier. This op amp needs to be operated at a temperature of not less than -40°C degrees Celsius in order to function properly. You should not use op amp above 85°C degrees. A total of 1 elements are present in this linear amplifier. The operating supply voltage of the buffer op amp is rated at 15V. A supply of 5mA or higher is recommended for use with this electronic part. Regarding the voltage of the supply, this electrical part can work from a voltage as low as 16.5V, and this is an excellent feature. In order to ensure that the instrumentation amplifier's supply voltage remains above 13.5V, it is recommended to keep it higher. It is recommended to keep the buffer amps resistance within the range of 2GOhm. As you can see, the linear amplifier has 1 amplifiers.
