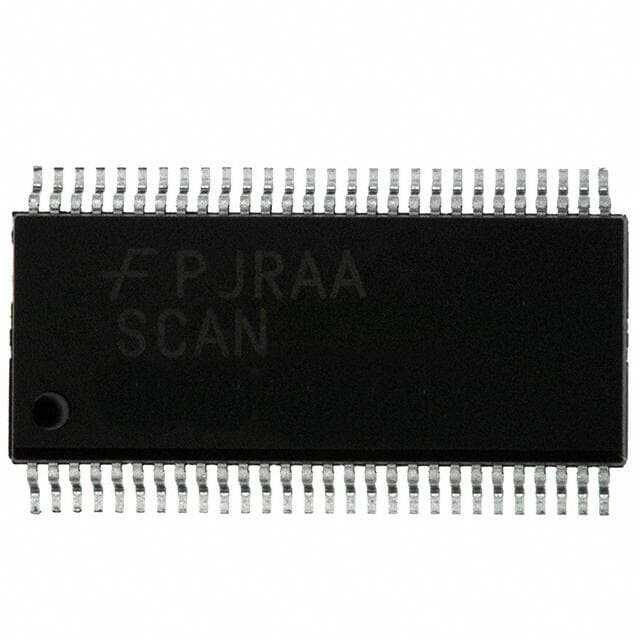

Rochester 74ABT16543CSSCX

Manufacturer No:

74ABT16543CSSCX

Manufacturer:

Rochester

Package:

56-BSSOP (0.295, 7.50mm Width)

Description:

DUAL Transceiver, Non-Inverting 4.5V~5.5V 3-State Buffers 74ABT Series 56 Pins 8 Bit per Element 32mA 64mA 56-BSSOP (0.295, 7.50mm Width)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

74ABT16543CSSCX information

Rochester 74ABT16543CSSCX technical specifications, attributes, parameters and parts with similar specifications to Rochester 74ABT16543CSSCX.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
56-BSSOP (0.295, 7.50mm Width)

Surface Mount
YES

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

Series
74ABT

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
56

Terminal Finish
MATTE TIN

Additional Feature
WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION

Technology
BICMOS

Voltage - Supply
4.5V~5.5V

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
2

Supply Voltage
5V

Terminal Pitch
0.635mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
56

JESD-30 Code
R-PDSO-G56

Output Type
3-State

Number of Elements
2

Supply Voltage-Max (Vsup)
5.5V

Supply Voltage-Min (Vsup)
4.5V

Number of Ports
2

Family
ABT

Current - Output High, Low
32mA 64mA

Logic Type
Transceiver, Non-Inverting

Output Polarity
TRUE

Number of Bits per Element
8

Propagation Delay (tpd)
5.5 ns

Width
7.5mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Rochester 74ABT16543CSSCX.

Datasheets:

rochesterelectronicsllc-74abt16543csscx-datasheets-3402.pdf

74ABT16543CSSCX Overview

Buffer uses a neat 56-BSSOP (0.295, 7.50mm Width) package. This logic IC uses the Tape & Reel (TR) external packaging. This digital buffer is available in the Surface Mount mount. This is a typical Transceiver, Non-Inverting logic integrated circuit that sees a broad field of applications. This network transceiver is fed with a supply voltage of 4.5V~5.5V. This automotive buffer is qualified to operate within the ambient temperature of -40°C~85°C TA. The high and low logic state output current of It is 32mA 64mA. Digital buffer can deal with 3-State output (s). All of the 2 elements are put into use. It is one of the 74ABT series transceivers. 56 terminations with different functions. It reuqires a supply voltage of 5V. This electronic component belongs to the ABT family. 56 pins are set with the electrical part. Enhanced with 2 ports. The network transceiver employs 8 bits for each element. To supply the digital buffer, a minimum voltage of 4.5V is a must. Buffer features WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION to better serve the need.
