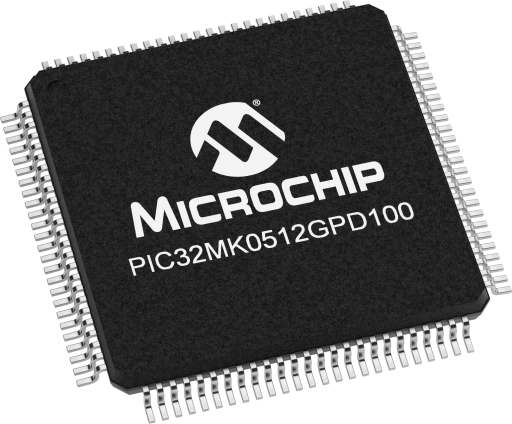

Microchip PIC32MK0512GPD100T-I/PT
Microchip PIC32MK0512GPD100T-I/PT

Microchip PIC32MK0512GPD100T-I/PT

Manufacturer No:

PIC32MK0512GPD100T-I/PT

Manufacturer:

Microchip

Package:

100-TQFP

Description:

512KB Flash, 100 pin, 120 MHz,

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PIC32MK0512GPD100T-I/PT information

Microchip PIC32MK0512GPD100T-I/PT technical specifications, attributes, parameters and parts with similar specifications to Microchip PIC32MK0512GPD100T-I/PT.

  • Type
  • Parameter
  • Part Family
  • PIC32MKGP
  • CPU Type
  • 32-Bit MIPS MCU
  • MaxSpeed (MHz)
  • 120
  • Program Memory Size (KB)
  • 512
  • SRAM (KB)
  • 128
  • Temp. Range Min.
  • -40
  • Temp. Range Max.
  • 125
  • Operation Voltage Min.(V)
  • 2.2
  • Operation Voltage Max.(V)
  • 3.6
  • SPI
  • 6
  • I2C
  • 0
  • UART
  • 6
  • Crypto Engine
  • No
  • Internal Oscillator
  • 8Mhz
  • Pin Count
  • 100

Download datasheets and manufacturer documentation for Microchip PIC32MK0512GPD100T-I/PT.

Application Notes:

Data Sheets:

Errata:

Tech Brief:

Reference Manual:

Programming Specifications:

Brochures:

User Guide:

Legacy Collaterals:

Recommended Alternative Device - PIC32MK0512GPK100


PIC32MK family devices combine 32-Bit, 120Mhz performance with up to 1MB of Flash memory, and a rich peripheral set targeting applications such as motor control, industrial control and Industrial Internet of Things (IIoT) and multi-channel CAN applications.


These devices feature 7x 12-Bit ADC's each operating at up to 3.75MSPS, which can be combined and sequenced to provide up to 18MSPS sampling rates!



  • Recommended Alternative Device: PIC32MK0512GPK100
  • 120Mhz MIPS32 microAptiv MCU Core
  • Floating Point Unit for single and double precision math
  • MicroMIPS Mode for 40% smaller code size
  • Four 64-bit Accumulators
  • Single Cycle MAC supporting saturating and fractional math
  • 512KB Dual Panel Flash with Live Update support
  • 4KB EEPROM
  • 7x 12-bit 3.75MSPS ADC Cores up to 42 analog inputs
  • Four Op amps
  • Five analog comparators
  • Up to three 12-bit DACs
  • 16 Output Compare
  • 16 Input Capture
  • RTCC
  • Dual FS USB2.0
  • Up to six UART Modules (up to 25Mbps) with LIN and IrDA support
  • Up to six SPI/I2S modules
  • Peripheral Pin Select  (PPS) to enable remapable pin functions
  • AEC-Q100 REVG (Grade 1 -40ºC to +125ºC) (planned)
  • Class B Safety Library, IEC 60730 (planned)
  • Back-up internal oscillator
  • Programmable High/Low-Voltage Detect module
  • Clock monitor with Back-up Internal Oscillator
  • Global register locking
  • In-circuit and in-application programming
  • 2-wire or 4-wire MIPS® Enhanced JTAG interface
  • Unlimited software and 12 complex breakpoints
  • IEEE 1149.2-compatible (JTAG) boundary scan
  • Non-intrusive hardware-based instruction trace
  • MPLAB X Integrated Development Environment (IDE)
  • MPLAB® Harmony Integrated Software Framework
  • USB, Graphics, and mTouch™ middleware
  • MFi, Android™, and Bluetooth® audio frameworks
  • RTOS Kernels: Express Logic ThreadX, FreeRTOS™, OPENRTOS®, Micriµm® µC/OS™, and SEGGER
  • SCILAB X2C Open Source Rapid Prototyping Tool
