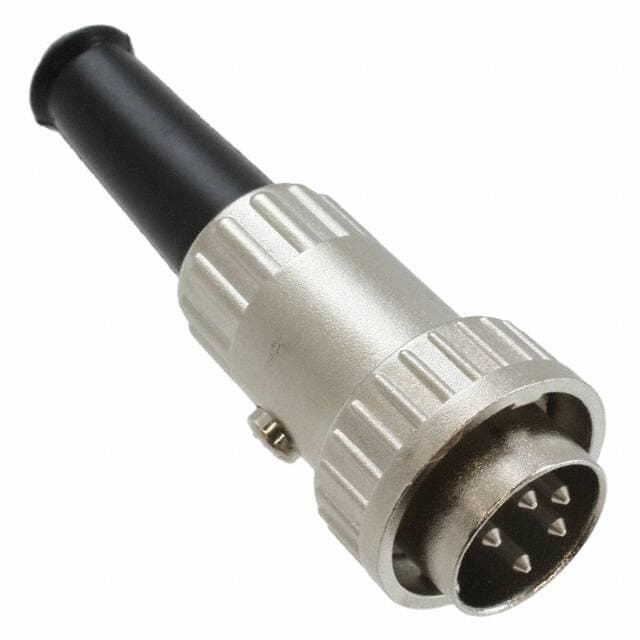

Switchcraft Inc. 12CL5MX

Manufacturer No:

12CL5MX

Manufacturer:

Switchcraft Inc.

Package:

Description:

Plug, Male Pins Zinc Die Cast Free Hanging (In-Line) 5 Positions Solder Tin Nickel Bulk 4 Push-Twist

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

12CL5MX information

Switchcraft Inc. 12CL5MX technical specifications, attributes, parameters and parts with similar specifications to Switchcraft Inc. 12CL5MX.

Type
Parameter

Factory Lead Time
8 Weeks

Mount
Cable, Free Hanging, Jam Nut

Mounting Type
Free Hanging (In-Line)

Shell Material
Zinc Die Cast

Weight
19.999993g

Insert Material
Plastic

Body Material
Metal

Packaging
Bulk

Published
2005

JESD-609 Code
e3

Feature
Backshell, Cable Clamp, Strain Relief

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
Solder

ECCN Code
EAR99

Connector Type
Plug, Male Pins

Number of Positions
5

Color
Silver

Gender
Male

Voltage - Rated
34VDC

Fastening Type
Push-Twist

Subcategory
DIN Connectors

Contact Finish - Mating
Tin

DIN Conformance
YES

IEC Conformance
NO

Option
GENERAL PURPOSE

Total Number of Contacts
5

Orientation
4

Current Rating
3A

Shell Finish
Nickel

Shell Size - Insert
DIN 240 Degree

Reliability
COMMERCIAL

Rated Current (Signal)
3A

Contact Style
RND PIN-SKT

Contact Resistance
30mOhm

Polarization Key
POLAR PIN POSITION

Dielectric Withstanding Voltage
700VAC V

Number of Ports
1

EMI Shielded
NO

Contact Pitch Circle Diameter
7mm

Length
59.2mm

REACH SVHC
Unknown

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Switchcraft Inc. 12CL5MX.

12CL5MX Overview

This product is packaged in a Plug, Male Pins box.Free Hanging (In-Line) indicates that the device is mounted.An Bulk case is utilized for packaging the product.In many ways, Backshell, Cable Clamp, Strain Relief makes it more powerful.By Cable, Free Hanging, Jam Nut, the part is mounted.

12CL5MX Features

12CL5MX Applications

There are a lot of Switchcraft Inc.
12CL5MX Circular Connectors applications.

Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
Blowers
Control panels
