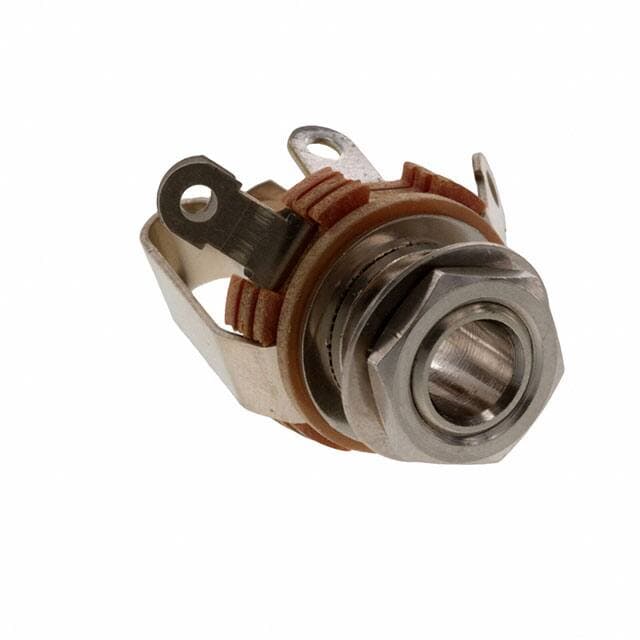

Switchcraft Inc. 13E

Manufacturer No:

13E

Manufacturer:

Switchcraft Inc.

Package:

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

13E information

Switchcraft Inc. 13E technical specifications, attributes, parameters and parts with similar specifications to Switchcraft Inc. 13E.

Type
Parameter

Factory Lead Time
12 Weeks

Contact Material
Copper Alloy

Mount
Cable, Chassis, Chassis Mount, Panel, Through Hole

Mounting Type
Panel Mount, Through Hole

Housing Material
Plastic

Body Material
Copper Alloy

Contact Material - Plating
Nickel

Operating Temperature
-20°C~65°C

Series
LITTEL-JAX®

Feature
Mounting Hardware, Thread Lock

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Number of Terminations
2

Termination
Solder Eyelet(s)

ECCN Code
EAR99

Connector Type
Phone Jack

Gender
Female

Voltage - Rated
25VDC

Contact Finish - Mating
NOT SPECIFIED

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Option
GENERAL PURPOSE

Orientation
Straight

Current Rating
1A

Max Current Rating
1A

Number of Ports
1

Number of Poles
2

Max Voltage Rating (DC)
25V

Thread Size
3/8-32

Number of Positions/Contacts
2 Conductors, 4 Contacts

Includes
3 pcs - 1 Connector, 1 Nut, 1 Washer

Internal Switch(s)
Single Switch

Body Color
Silver

Panel Hole Size
0.375 9.52mm

Industry Recognized Mating Diameter
6.35mm (0.250, 1/4) - Headphone

Actual Diameter
0.250 (6.35mm)

Signal Lines
Mono

Length
19.05mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead
