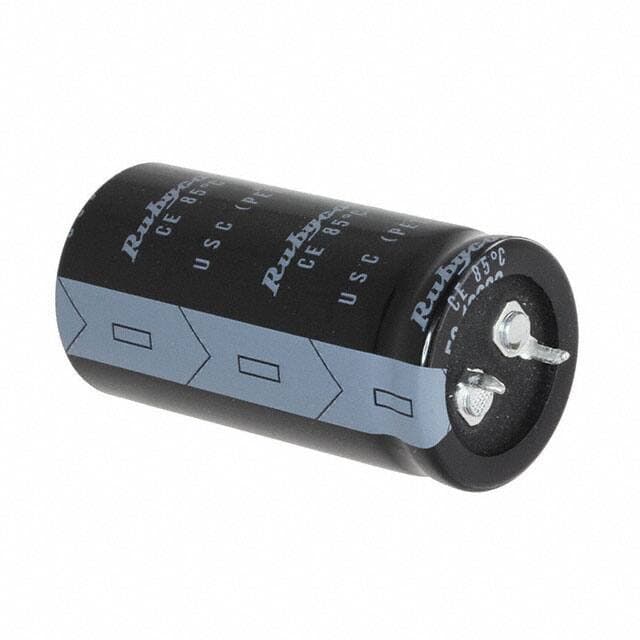

Rubycon 100USC3300MEFCSN25X50

Manufacturer No:

100USC3300MEFCSN25X50

Manufacturer:

Rubycon

Package:

Radial, Can - Snap-In

Description:

USC 3300?F Capacitor ±20% Bulk Through Hole 4.06A 0.984Dia 25.00mm -40°C~85°C Polar 10.0076mm Radial, Can - Snap-In

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

100USC3300MEFCSN25X50 information

Rubycon 100USC3300MEFCSN25X50 technical specifications, attributes, parameters and parts with similar specifications to Rubycon 100USC3300MEFCSN25X50.

Type
Parameter

Factory Lead Time
18 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can - Snap-In

Dielectric Material
ALUMINUM (WET)

Operating Temperature
-40°C~85°C

Packaging
Bulk

Series
USC

Published
2015

Size / Dimension
0.984Dia 25.00mm

Tolerance
±20%

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

ECCN Code
EAR99

Terminal Finish
Tin (Sn)

Applications
General Purpose

Voltage - Rated
100V

Capacitance
3300?F

Terminal Pitch
10mm

Lead Pitch
10.0076mm

Capacitor Type
ALUMINUM ELECTROLYTIC CAPACITOR

Rated (DC) Voltage (URdc)
100V

Lifetime @ Temp
3000 Hrs @ 85°C

Leakage Current
1.72337mA

Ripple Current
4.06A

Polarization
Polar

Life (Hours)
3000 hours

Tan Delta
0.2

Ripple Current @ Low Frequency
4.06A @ 120Hz

Ripple Current @ High Frequency
4.669A @ 10kHz

Diameter
25mm

Height Seated (Max)
2.047 52.00mm

Length
50mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Rubycon 100USC3300MEFCSN25X50.

100USC3300MEFCSN25X50 Overview

As far as the ripple current is concerned, it is 4.669A @ 10kHz at full charge.As far as the ripple current is concerned, it is 4.06A @ 120Hz at the lowest charge.The height seated (Max) should be kept below 2.047 52.00mm.The rated (DC) voltage (URdc) of the device should be set at 100V.The operating temperature should be maintained at -40°C~85°C for high efficiency.

100USC3300MEFCSN25X50 Features

the ripple current is 4.669A @ 10kHz.
the ripple current is 4.06A @ 120Hz.
an operating temperature of -40°C~85°C

100USC3300MEFCSN25X50 Applications

There are a lot of Rubycon
100USC3300MEFCSN25X50 applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
