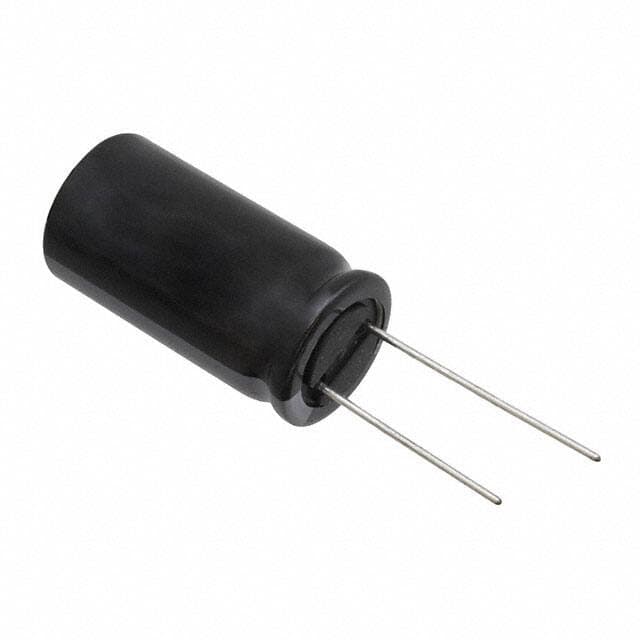

Rubycon 35YXF2200MEFC16X31.5

Manufacturer No:

35YXF2200MEFC16X31.5

Manufacturer:

Rubycon

Package:

Radial, Can

Description:

YXF 2200?F Capacitor ±20% Bulk Through Hole 1.6A 0.630Dia 16.00mm -40°C~105°C Polar 7.5mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

35YXF2200MEFC16X31.5 information

Rubycon 35YXF2200MEFC16X31.5 technical specifications, attributes, parameters and parts with similar specifications to Rubycon 35YXF2200MEFC16X31.5.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Number of Pins
2

Dielectric Material
Aluminium

Operating Temperature
-40°C~105°C

Packaging
Bulk

Series
YXF

Size / Dimension
0.630Dia 16.00mm

Tolerance
±20%

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
Radial

ECCN Code
EAR99

Applications
General Purpose

Capacitance
2200?F

Voltage - Rated DC
35V

Voltage - Rated AC
35V

Lead Pitch
7.5mm

Capacitor Type
ALUMINUM ELECTROLYTIC CAPACITOR

Lead Spacing
0.295 7.50mm

Lifetime @ Temp
10000 Hrs @ 105°C

Polarization
Polar

Life (Hours)
10000 hours

Impedance
29mOhm

Ripple Current @ Low Frequency
1.6A @ 120Hz

Ripple Current @ High Frequency
2A @ 100kHz

Diameter
16mm

Height
31.5mm

Height Seated (Max)
1.319 33.50mm

REACH SVHC
Unknown

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Rubycon 35YXF2200MEFC16X31.5.

35YXF2200MEFC16X31.5 Overview

In terms of ripple current, it is 2A @ 100kHz at full charge.When the charge is lowest, the ripple current is 1.6A @ 120Hz.Sitting height (Max) should not exceed 1.319 33.50mm.Voltage - Rated DC of 35V is required to operate this capacitor.The capacitor operates at a voltage of 35V volts.It is recommended to maintain the operating temperature at -40°C~105°C in order to maximize efficiency.

35YXF2200MEFC16X31.5 Features

the ripple current is 2A @ 100kHz.
the ripple current is 1.6A @ 120Hz.
voltage - Rated DC of 35V
an operating temperature of -40°C~105°C

35YXF2200MEFC16X31.5 Applications

There are a lot of Rubycon
35YXF2200MEFC16X31.5 applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
