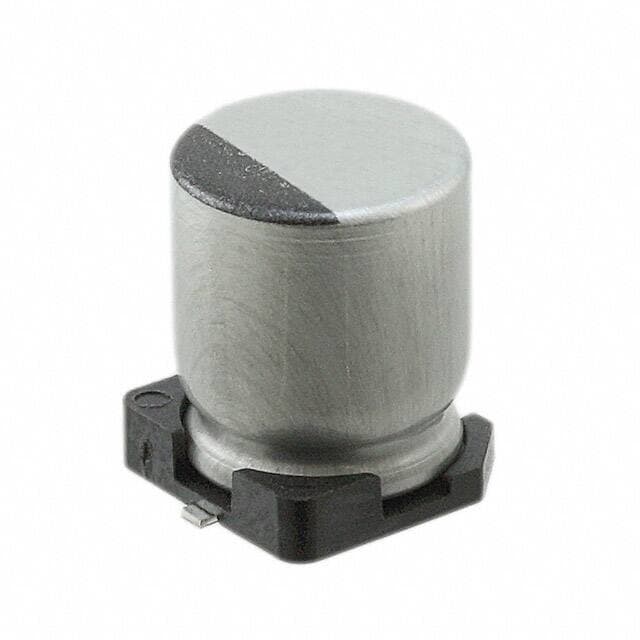

Rubycon 50TZV47M6.3X8
Rubycon 50TZV47M6.3X8

Rubycon 50TZV47M6.3X8

Manufacturer No:

50TZV47M6.3X8

Manufacturer:

Rubycon

Package:

Radial, Can - SMD

Description:

TZV 47?F Capacitor ±20% Cut Tape (CT) Surface Mount 195mA 0.248Dia 6.30mm -55°C~105°C Polar Radial, Can - SMD

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

50TZV47M6.3X8 information

Rubycon 50TZV47M6.3X8 technical specifications, attributes, parameters and parts with similar specifications to Rubycon 50TZV47M6.3X8.

  • Type
  • Parameter
  • Factory Lead Time
  • 91 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • Radial, Can - SMD
  • Terminal Shape
  • WRAPAROUND
  • Number of Pins
  • 2
  • Dielectric Material
  • ALUMINUM (WET)
  • Surface Mount Land Size
  • 0.260Lx0.260W 6.60mmx6.60mm
  • Operating Temperature
  • -55°C~105°C
  • Packaging
  • Cut Tape (CT)
  • Series
  • TZV
  • Size / Dimension
  • 0.248Dia 6.30mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e6
  • Feature
  • General Purpose
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin/Bismuth (Sn/Bi)
  • Applications
  • Automotive
  • Capacitance
  • 47?F
  • Voltage - Rated DC
  • 50V
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • ESR (Equivalent Series Resistance)
  • 680mOhm
  • Lifetime @ Temp
  • 2000 Hrs @ 105°C
  • Ripple Current
  • 195mA
  • Polarization
  • Polar
  • Life (Hours)
  • 2000 hours
  • Tan Delta
  • 0.1
  • Impedance
  • 680mOhm
  • Ripple Current @ Low Frequency
  • 62.4mA @ 120Hz
  • Ripple Current @ High Frequency
  • 195mA @ 100kHz
  • Ripple Current (AC)
  • 195mA
  • Diameter
  • 6.3mm
  • Height
  • 8mm
  • Height Seated (Max)
  • 0.315 8.00mm
  • Width
  • 6.6mm
  • REACH SVHC
  • No SVHC
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Ratings
  • AEC-Q200

Download datasheets and manufacturer documentation for Rubycon 50TZV47M6.3X8.

Datasheets:

50TZV47M6.3X8 Overview


At full charge, the ripple current is 195mA @ 100kHz.It is necessary to provide the ESR (Equivalent Series Resistance) of 680mOhm so that it can fully perform its functions.The ripple current is 62.4mA @ 120Hz at the lowest charge.It is recommended to keep the height seated (Max) below 0.315 8.00mm.The capacitor operates at a voltage of 50V - Rated DC.For high efficiency, the operating temperature should be -55°C~105°C.

50TZV47M6.3X8 Features


the ripple current is 195mA @ 100kHz.
the ripple current is 62.4mA @ 120Hz.
voltage - Rated DC of 50V
an operating temperature of -55°C~105°C


50TZV47M6.3X8 Applications


There are a lot of Rubycon
50TZV47M6.3X8 applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
