Unlocking Higher Power Supply Efficiency with Gallium Nitride ICs

You can now use less energy to power your devices because of gallium nitride integrated circuits. Many new systems use gan since it lowers energy loss by up to 40%. It also makes less heat.

• GaN-based 48V power setups in data centers work at 96% efficiency. They use 30% less space than silicon designs.
  Switching from silicon to gallium nitride gives higher efficiency and better thermal stability. This change helps make new ideas in electronics, cars, and renewable energy.

Key Takeaways

• Gallium nitride ICs can cut energy loss by 40%. This makes devices work better and stay cooler.

• Changing from silicon to GaN lets devices run at higher frequencies. This means power supplies can be smaller and lighter.

• GaN technology can reach 96% efficiency. This lowers power loss and helps devices last longer.

• Using GaN in power supplies gives more power in a small space. This is great for new electronics.

• GaN ICs are changing many industries. They help things like electronics, data centers, and electric cars work better and use less energy.

GaN and Power Supply Efficiency

Higher Frequency Operation

You can make your power supplies work better with gan technology. Gan circuits let power supplies run at much higher frequencies than silicon. This helps you build smaller and lighter devices that still work well.

• Gan power ICs work with new PWM controllers for high frequencies.

• You can find gan in bridge-less boost PFC circuits. These circuits go past the frequency limits of silicon.

• GanFast power ICs can reach up to 2 MHz. Most silicon converters only reach 50-60 kHz.

• With gan, you can put power FETs, drivers, and control parts on one chip. This makes high-frequency systems more reliable.

Tip: When you use higher frequencies, transformers and capacitors can be smaller. This lets you make your power supply smaller and lighter.

The JETA100-LP power supply shows this well. Using gan made it 20% smaller and 25% lighter. Its power density went from 17 W/in³ to 21 W/in³. This shows how gan helps real products.

Reduced Power Losses

Gan helps lower power losses in many ways. Gan transistors have lower Ron resistance than silicon. This means less energy turns into heat.

• Gan switches on and off faster than silicon FETs. This cuts down the time when both voltage and current are high. So, you lose less energy during switching.

• Gan devices do not have a body diode. This means there are no reverse recovery losses like in silicon MOSFETs.

• With higher frequencies, gan lets you design power supplies that waste less energy and make less heat.

You can see these benefits in real numbers. Gan power supplies can reach up to 96% efficiency. Sometimes, you can cut power losses by as much as 80%. This keeps your devices cooler and saves electricity.

Note: Using gan saves energy and helps your devices last longer because they stay cooler.

Gan technology changes how you design power supplies. Now you can make products that are smaller, lighter, and more efficient. Gallium nitride lets you do more with power electronics.

What Are Gallium Nitride Integrated Circuits?

Material Properties of GaN

Gallium nitride works well in power electronics. It has a wide bandgap of 3.4 eV. This lets it handle high voltages and high frequencies. The Wurtzite crystal structure makes it hard and stable. You can use gallium nitride where heat and stress happen often.

• Gallium nitride is a wide bandgap semiconductor.

• It gives higher power density and efficiency than silicon.

• GaN can lower power loss by up to 80% in converters.

• You can make smaller and lighter systems with it.

• GaN has high breakdown voltages and fast electron movement.

• It works at temperatures up to 400 °C, much higher than silicon.

Note: Gallium nitride keeps working even when it gets very hot.

GaN vs. Silicon ICs

You may wonder how gallium nitride integrated circuits compare to silicon ones. GaN-based devices have lower on-state resistance and less parasitic capacitance. You can run these circuits at higher junction temperatures. This means you get better performance and more reliable power supplies.

Here is a quick comparison:

Property	Gallium Nitride (GaN)	Silicon (Si)
Breakdown Strength	Higher	Lower
Switching Speed	Faster	Slower
Thermal Conductivity	Higher	Lower
On-Resistance	Lower	Higher

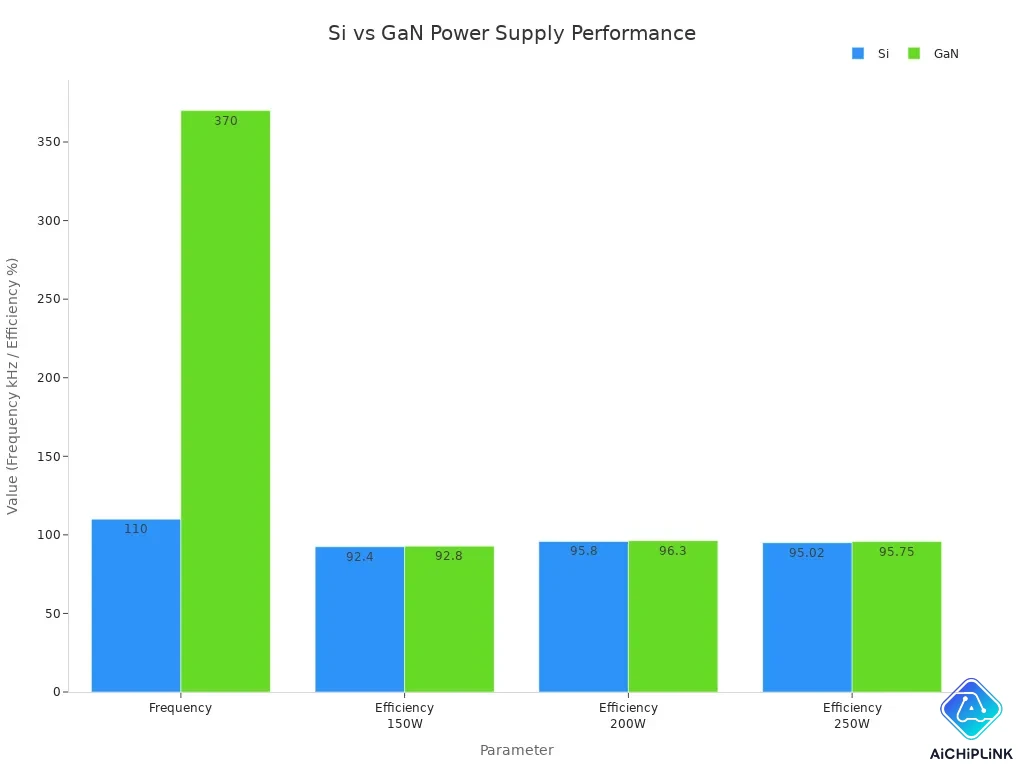

You can see the difference in real power supply tests:

Parameter	Si	GaN
Frequency	110 kHz	370 kHz
Efficiency at 150W	92.4%	92.8%
Efficiency at 200W	95.8%	96.3%
Efficiency at 250W	95.02%	95.75%

Gallium nitride gives higher frequency, lower on-resistance, and better blocking capacity. When you use gan integrated circuits, you can build faster and smaller power systems. These benefits make gan the best choice for new circuit designs.

Key Benefits of GaN Power ICs

Faster Switching and Speed

Gan power ICs can switch much faster than silicon. Gan can reach up to 40 MHz. Silicon usually stays under 100 kHz. This is because gan has higher electron mobility. Gan works well in the MHz range. This means your power supplies can run faster and use less energy.

• Gan power ICs can switch up to 40 MHz.

• Silicon devices usually stay below 100 kHz.

• Gan works well in the MHz range, so you can use smaller parts and get more power in less space.

Faster switching helps you make smaller and better systems. You can use smaller transformers and capacitors. This makes your system smaller. Gan lets switches work at higher temperatures and with more power. This makes your system work better in many places, like data centers and electric cars.

Tip: Gan switches faster, so there is less interference and heat. This makes your designs safer and saves energy.

Smaller Size and Weight

Gan power ICs help you make power supplies smaller and lighter. Gan lets you switch at higher frequencies. This means you can use smaller inductors and capacitors. Your products become smaller and weigh less.

• A 100W USB PD power supply with gan reached 33 W/inch³. It is about three times smaller than other products.

• Gan power ICs put many functions on one chip, so you need fewer extra parts.

• High-frequency use makes passive parts like inductors and capacitors smaller.

• Monolithic integration with gan cuts down on outside parts, making designs even smaller.

Evidence Description	Key Points
Gan power ICs put many functions on one chip.	This makes power electronics smaller and lighter.
High-frequency use makes passive parts smaller.	This helps you make more compact designs.
Monolithic integration cuts down on outside parts.	This makes power electronics even smaller.
Gan half-bridge power ICs cut losses and make things simpler.	This gives you a tough solution with fewer parts, making designs simple and small.

Gan helps you build smaller, lighter, and better power supplies for new devices.

Lower Heat Output

Gan power ICs make less heat than silicon ones. They do this because they switch well and have lower on-resistance. You can check this with tools like Raman spectroscopy or scanning thermal microscopy.

Material Combination	Temperature (°C)	Power Density (W/mm)
GaN-BA	60	< 15
GaN-Diamond	110	< 15
GaN-SiC	140	< 15

Gan keeps things cooler even when power is high. You need smaller cooling parts, so you save space and money. Silicon needs bigger cooling systems, but gan’s good switching keeps things cool.

Note: Gan power ICs make less heat, so your devices last longer and work better.

Enhanced Power Density

Gan technology helps you get more power in a small space. Gan can handle higher voltages and bigger currents. Your devices stay small but powerful. This is important for things like data centers and electric cars.

• Gan is best for high-frequency, high-power jobs because it switches faster and works better.

• Vertical gan semiconductors handle more voltage and current in less space.

• Gan switches 100 times faster and works 20 times better than silicon, so you get more power and smaller size.

High power density means you fit more power in less space. This is important for new electronics that need to be strong and easy to carry. Gan power ICs with built-in drivers help you reach these goals. Your systems become smarter and better.

Callout: Gan technology lets you make power supplies that are smaller, cooler, and stronger than before.

Real-World Applications of GaN ICs

Consumer Electronics Charging

You can see gan changing how you charge things. Many companies use gallium nitride transistors in fast chargers now. These chargers have more power in a smaller size. Your phone or laptop charges faster and stays cooler. Gan helps you save time and keeps your devices from getting hot.

Brand	Product Type	Efficiency Improvement
Dell	GaN Fast Charger	Higher power densities
Lenovo	GaN Fast Charger	Reduced size of components
Samsung	GaN Fast Charger	Enhanced switching frequencies
Xiaomi	GaN Fast Charger	Minimized size of semiconductors
LG	GaN Fast Charger	Improved EMI filtering
OPPO	GaN Fast Charger	Smaller output capacitors
Belkin	Aftermarket Charger	Higher efficiency
Anker	Aftermarket Charger	Compact design
AUKEY	Aftermarket Charger	Enhanced performance
Hyper	Aftermarket Charger	Reduced bulk capacitors
Baseus	Aftermarket Charger	Improved power density

• Gan power devices make charging quicker and use less energy.

• You spend less time charging your phone or laptop.

• Gallium nitride transistors help keep your devices cool.

Tip: Gan chargers are small and light, so you can travel easily and keep your devices ready.

Data Centers and Cloud

Gan is making a big difference in data centers. Gan power supplies are smaller and lighter than before. They use less energy and cost less money. Gallium nitride transistors switch fast, so there is less noise and more stable power.

• Gan power modules save up to 20% energy and are 30-40% smaller.

• Server makers use gan to save money and help the planet.

• Gan lets you use higher frequencies, so you can design in new ways.

• Data centers use gan to reach Net-Zero carbon goals.

Cloud companies use gan for AI servers. These systems can be over 97% efficient. Gan raises power density from 98W/in³ to 137W/in³. Gan helps data centers handle more work with less energy.

Note: Gan helps data centers stay cool and use less energy, which saves money.

Electric Vehicles

Gan is changing electric vehicles too. Gan power systems make cars go farther and use less energy. Gallium nitride transistors switch faster than silicon, above 500 kHz. This means up to 80% less power loss and better energy use.

Feature	GaN ICs Performance	Silicon Performance
Switching Frequency	Above 500 kHz	Below 100 kHz
Power Loss Reduction	Up to 80%	N/A
Efficiency	Up to 96.5%	N/A
Power Density	Increased from 3.9 kW/L to 10.5 kW/L	N/A
Specific Power	Increased from 1.6 to 9.6 kW/kg	N/A

• Gan lets traction inverters change dc to ac with almost no loss.

• Onboard chargers with gan are 99% efficient and much smaller.

• Fast-charging stations use gan to charge three times faster without getting bigger.

• Gan cuts losses in DC-DC converters, so car parts are lighter.

New gan onboard chargers reach 99% efficiency at 100 kHz. They are 53% smaller and 79% lighter than silicon ones. Gan helps electric cars go farther and charge faster.

Renewable and Industrial Power

Gan is making renewable energy and factories better. Gallium nitride transistors give you more control in motor drives and work well in tough places.

Application	Efficiency Improvement	Loss Reduction
Solar Inverters	99%	N/A
Wind Turbine Converters	N/A	40%

Application	Size Reduction	Energy Savings
Motor Drives	50%	N/A
Variable Frequency Drives	N/A	30%

Benefit	Description
Power Density	3x higher power density (>1.2 kW/L) and lower weight than existing AC/DC and DC/DC converters.
Fast Switching	The fast-switching properties of gan at 140kHz increase 20% higher power density over SiC FETs.
Cost Efficiency	System cost parity due to lower-cost magnetics versus 2-level SiC topology.

Gan helps solar inverters reach 99% efficiency. Wind turbines lose 40% less power. Motor drives are half as big. You get more energy savings and reliable power with gan.

Callout: Gan technology helps you build cleaner and more efficient energy systems for the future.

Design Challenges with GaN Integrated Circuits

Thermal Management

When you use gan, you face new heat problems. Gan can work at higher temperatures than silicon. But it makes heat in different ways. You cannot always cool gan the same way as old power electronics. In electric cars and other hard places, you must keep gan cool so it does not get damaged.

Challenge	Description
Lack of Standardized Thermal Characterization	Old silicon rules do not match gan’s special heat behavior. This can make reports on performance not match up.
Reliability Testing Under Thermal Stress	Gan fails in different ways than silicon. You need new tests for reliability, especially where layers meet.

• Gan can wear out faster at the layer edges when heated and cooled many times.

• Old ways to guess device life do not work well for gan.

Note: You need new cooling ideas and tests to keep gan working well, especially in hot places like electric cars.

Cost and Supply

Gan costs more than silicon right now. The materials and ways to make it are newer and not used as much. This can make gan power electronics cost more for now. There are not as many gan factories, so you may wait longer or pay more.

• Gan wafers are harder to make than silicon ones.

• Not many places make gan, so supply is limited.

• As more people use gan, prices should drop and supply will get better.

Tip: If you plan ahead and pick good suppliers, you can skip many supply problems.

Reliability Factors

You want your gan power electronics to last a long time. To do this, you must think about some important things:

• Devices must stay safe with high voltage and heat.

• The gate oxide layer can break after a while.

• Channel movement can slow down, which hurts how it works.

• Problems with packaging can make things fail.

You should test gan circuits in real life. This helps you find weak spots before they cause problems. If you fix these early, your gan designs will work better and last longer.

Callout: Good design and testing help you get the best from gan power electronics, even in hard jobs.

Future Trends in GaN Power Electronics

Innovation and Adoption

You will see lots of new changes as gan gets used more. Many companies put high-performance gan in new products now. Gan is found in fast chargers, electric cars, and quick communication systems. This technology helps make devices smaller and better. It also helps them last longer.

Next generation power supplies use smart gan chips. These chips have control, protection, and power all together. You can build front-end circuits that handle more power and less heat. This makes devices safer and more reliable.

Tip: Gan lets you design products that are lighter, faster, and save energy.

Market Outlook

Gan has a bright future ahead. Experts think gan will be the main material for new power electronics. More companies will use gan because it saves energy and space.

• The gallium nitride power electronics market may grow at a CAGR of 22.7% from 2025 to 2033.

• New devices will show up in many industries, like cars and renewable energy.

• Gan will be in more consumer products as prices go down and supply goes up.

Gan will lead the way in new designs. This technology helps you build smarter, smaller, and stronger systems. As gan gets more popular, you will see even more new ideas soon.

Note: If you want to stay ahead, learn about gan and how it can help your next projects.

You can make power supplies work better with gallium nitride integrated circuits. These chips help you build smaller devices. They also keep things cooler and make them run faster. You use less energy and fit more power in a small space.

• Chargers, cars, and data centers work better with these chips.

• Your designs get lighter and last longer.

GaN ICs will change electronics in the future. Try using GaN for your next project.
