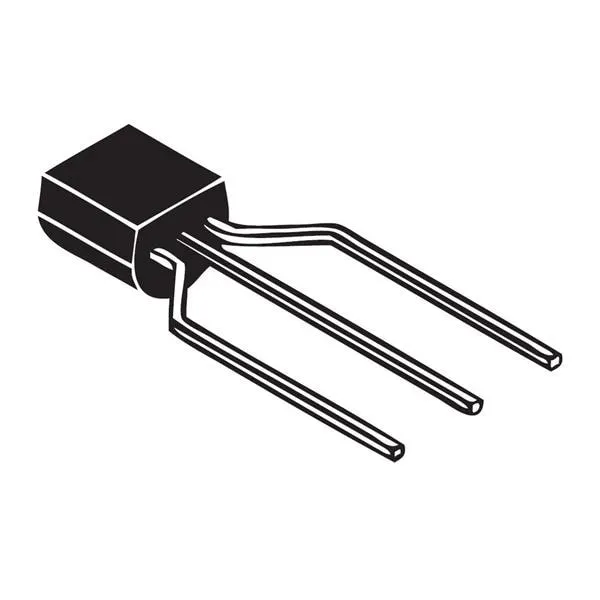

Transistor hFE, also known as the hybrid parameter forward current transfer ratio or dc current gain, measures how much a bipolar transistor amplifies current. Engineers define hFE as the ratio of collector current to base current (IC/IB), which directly reflects current gain. For example, if hFE equals 100, a base current of 1 mA produces a collector current of 100 mA. This gain plays a crucial role in amplification, biasing, and switching. The importance of hFE becomes clear when examining its impact on circuit design, as typical values range widely with different transistor types.
| Transistor Type | Typical hFE Range |
|---|---|
| NPN Transistor | 20 to 1000 |
| PNP Transistor | 20 to 1000 |
| Power Transistor | 10 to 100 |
| Small-Signal Transistor | 50 to 300 |
| High-Gain Transistor | 100 to over 1000 |
Understanding transistor hFE helps designers achieve reliable current gain and circuit stability, especially since gain changes with temperature, current, and manufacturing. Recognizing the importance of hFE allows anyone to see how bipolar transistor performance shapes real-world electronics.
Key Takeaways
-
Transistor hFE measures how much a transistor amplifies current by comparing collector current to base current.
-
hFE values vary widely due to temperature, current, and manufacturing differences, so designers must plan for these changes.
-
Higher hFE improves amplification and switching efficiency, but circuits must work reliably even at the lowest expected hFE.
-
Designers use hFE to set bias points, choose resistor values, and ensure stable operation in amplifiers and switches.
-
Measuring and understanding hFE helps troubleshoot circuits and select the right transistor for each application.
Transistor hFE Basics
What Is hFE?
Transistor hFE describes the hybrid parameter forward current transfer ratio in a bipolar transistor. This parameter, also called the dc current gain, measures how much the collector current increases for a given base current. In simple terms, hFE equals the ratio of collector current (IC) to base current (IB). When a small current enters the base, a much larger current flows from collector to emitter. This amplification effect forms the foundation of transistor gain in electronic circuits.
Tip: The hFE value is only valid when the bipolar transistor operates in its active region. In this mode, the device amplifies signals rather than acting as a switch.
The hFE value varies widely between devices and conditions. Most bipolar transistors show hFE values between 10 and 500, but some high-gain types can exceed 1000. The following table summarizes key properties and typical hFE ranges for different transistor types:
| Specification | Description |
|---|---|
| Definition | Common-emitter amplification factor, ratio of collector current to base current (hFE = IC/IB) |
| Typical Range | Generally between 10 and 500, with most values around 100 |
| Variability | Significant differences between transistors of the same type |
| Temperature Stability | hFE decreases with increasing temperature |
| Current Stability | hFE varies with collector current, generally decreasing as collector current increases |
| Usage in Circuits | Used to determine stable operating points and biasing in transistor circuits |
A practical example helps illustrate how hFE works. Suppose a bipolar transistor has a base current of 0.01 mA and a collector current of 1 mA. The hFE value in this case is 100. If the base current increases to 0.011 mA and the collector current rises to 1.12 mA, the small-signal current gain (hfe) becomes 120. This example shows how a small change in base current can produce a much larger change in collector current, which is the essence of transistor gain.
Designers must consider the variability of hFE values. Manufacturing differences, temperature, and collector current all affect the hFE value. Circuits should work reliably across the full range of hFE values specified for the chosen transistor. This approach ensures stable operation even when using different devices or when environmental conditions change.
hFE vs Beta and Alpha
The term hFE often appears alongside other parameters like beta (β) and alpha (α). In most datasheets and textbooks, hFE and beta refer to the same concept: the dc current gain of a bipolar transistor in common-emitter configuration. Both represent the ratio of collector current to base current. The formula is:
hFE = β = IC / IB
Alpha (α), on the other hand, describes the current gain in the common-base configuration. It is defined as the ratio of collector current to emitter current (IC/IE). Alpha values are always less than one, while hFE and beta are usually much greater than one. The relationship between these parameters is:
α = IC / IE
β = IC / IB
hFE = β
Note: hFE is only meaningful when the bipolar transistor operates in the active region. In saturation or cutoff, the hFE value loses its predictive power.
The hFE value is crucial for amplifier design, biasing, and switching circuits. Higher hFE values allow for greater amplification, but designers must account for the fact that hFE changes with temperature, collector current, and manufacturing. The hFE ranges for different transistor types help engineers select the right device for each application. For example, small-signal transistors often have higher hFE values than power transistors.
The following table summarizes the main properties of hFE and related parameters:
| Property | Description |
|---|---|
| Definition | Ratio of collector current (IC) to base current (IB), representing common-emitter dc gain (hFE) |
| Typical Range | Usually between 10 and 500, with most values near 100 |
| Variability | Significant variation between transistors of the same type due to manufacturing differences |
| Temperature Sensitivity | hFE decreases as temperature increases |
| Current Sensitivity | hFE typically decreases as collector current increases |
| Bias Setting | Important for setting transistor bias in amplifier design |
| Amplifier Design | Higher hFE can result in higher amplification |
| Transistor Matching | Transistors may be matched based on hFE for consistent performance |
| Usage in Circuits | Used in circuit design calculations, e.g., biasing resistors in amplifiers |
Transistor gain, as measured by hFE, forms the basis for most analog and digital circuit designs. Understanding the differences between hFE, beta, and alpha helps engineers and students interpret datasheets and build reliable circuits. The hFE value, while variable, remains a central parameter for predicting and controlling the behavior of bipolar transistors.
Measuring hFE
hFE Formula
The hFE formula stands as a fundamental concept in transistor operation. Engineers define hFE as the ratio of collector current (IC) to base current (IB):
hFE = IC / IB
This formula quantifies the current gain of a bipolar junction transistor (BJT). When a known base current flows into the transistor, the resulting collector current can be measured. The hFE value, also called dc current gain or beta, describes how much the transistor amplifies the input current. In practice, hFE is not a fixed number. It changes with temperature, device condition, and manufacturing differences. Designers must consider this variability when calculating gain for reliable circuit performance.
Practical Measurement Methods
Technicians and engineers use several methods to measure the hFE value in real-world scenarios. Laboratory setups often use a simple breadboard circuit with two resistors and a power supply. The table below shows a typical measurement approach:
| Measurement Aspect | Description / Values |
|---|---|
| Test Setup | Two-resistor breadboard circuit measuring voltage drops across base and collector |
| Example Device | 2N3906 PNP transistor |
| Power Supply Voltage | ~9.0 V |
| Resistor Values | Base: ~1 MΩ, Collector: ~1 kΩ |
| Measured Voltages | Vrb (base resistor), Vrc (collector resistor) |
| Calculated Currents | Ib = Vrb / Rb, Ic = Vrc / Rc |
| hFE Calculation Formula | hFE = Ic / Ib |
| Example Calculated hFE | 2N3906: hFE ≈ 92; 2N3904: hFE ≈ 162 |
| Instrumentation | Semiconductor analyzers, digital multimeters with hFE sockets |
| Measurement Considerations | Stable voltage, precise resistors, thermal stability, repeatability |
Modern digital multimeters and transistor testers simplify the process. To measure hFE value:
-
Insert the transistor into the tester, matching the correct pinout.
-
Select the transistor type (NPN or PNP).
-
Activate the tester and read the displayed hFE value.
-
Ensure stable temperature and calibrated instruments for accurate gain readings.
These steps help users determine the hFE value and understand the transistor's current gain in practical circuits.
Datasheet Values
Manufacturers publish hFE values in datasheets as a range, not a single number. Even transistors from the same batch can show different gain due to production differences. Datasheets reflect this by listing minimum and maximum hFE values under specific test conditions. Temperature, collector-emitter voltage, and current level all affect the hFE value. For example, higher temperatures or collector currents usually reduce gain. Some sample measurements show hFE value can vary by up to 200% between devices. Designers must always check the datasheet range and design circuits that tolerate these variations. This approach ensures stable operation, even when the hFE value changes due to environmental or manufacturing factors.
hFE in Circuits
Amplification and Biasing
Transistor gain plays a central role in amplification and biasing. The hFE parameter determines how much a small base current can control a larger collector current. In amplifier circuits, hFE directly influences voltage gain, distortion, and linearity. Designers often encounter challenges when hFE varies between transistors, which can lead to uneven gain or unwanted distortion. To address these issues, engineers use several strategies:
-
Emitter degeneration resistors help stabilize the functions of hfe by reducing the impact of hfe variations on overall circuit performance.
-
Transistor matching ensures that stages in multi-transistor amplifiers have similar hfe, which improves consistency.
-
Biasing calculations rely on hfe to set the correct base current for a desired collector current. Designers use the lowest expected hfe from datasheets and add safety margins to maintain reliable operation.
In signal conditioning circuits, a high and stable hfe supports low noise and accurate signal processing. Biasing resistors and careful design adjustments keep the transistor operating in its linear region, even as hfe changes.
The current amplification capability of a transistor depends on hfe. When hfe drops due to temperature or device aging, the amplifier may lose gain or become less linear. For this reason, designers always account for the lowest possible hfe in their calculations.
Switching Applications
Switching circuits use transistors as electronic switches, turning current flow on or off. The functions of hfe extend to switching efficiency and speed. A higher hfe allows the transistor to reach full saturation with less base current, which improves switching speed and reduces heat generation. In practice, designers select transistors with a minimum expected hfe and apply a safety factor to the base current to ensure reliable switching.
-
Experimental tests comparing PMBT2369 and MMBT2369 transistors revealed that differences in hfe and saturation charge storage affect switching speed. The PMBT2369 showed faster switching times, highlighting the importance of hfe in transient performance.
-
Variations in hfe complicate transistor selection for switching circuits. Designers must consider not only the hfe value but also package size and availability.
-
Datasheets often lack detailed information about switching behavior, making it harder to predict how hfe variations will affect real-world performance.
A stable current amplification capability ensures that the transistor can switch quickly and efficiently. If hfe drops below the expected value, the transistor may not fully saturate, leading to slower switching and increased power dissipation.
Variability Factors
Several factors cause hfe variations in practical circuits. Temperature changes, collector current levels, and manufacturing differences all influence transistor gain. For example, as temperature rises, hfe typically decreases. This effect can cause amplifiers to lose gain or oscillators to drift in frequency.
-
In voltage regulator circuits, stable hfe helps maintain accurate output voltage. However, as hfe decreases with temperature or aging, voltage regulation can suffer.
-
Oscillator circuits depend on hfe for loop gain. Changes in hfe can cause frequency drift or amplitude variation, so some designs use automatic gain control to compensate.
-
An experiment with a voltage regulator and a transistor driving a PIEZO sounder showed that heating the regulator and PCB tracks increased the transistor's temperature. This change altered the transistor's internal resistance, shifting the frequency output and demonstrating the challenge of maintaining stable operation as hfe varies.
Designers must always account for hfe variations by using conservative estimates and adding safety margins. Circuits that ignore these changes risk instability, distortion, or failure.
Transistor gain remains a variable parameter, even among devices of the same type. Careful design, component selection, and testing help ensure that circuits perform reliably despite the natural variability of hfe.
Applications of Transistor hFE
Amplifier Design
Engineers rely on hfe when designing amplifiers. The hfe value determines how much a small base current can control a larger collector current. In audio amplifiers, a higher hfe allows for greater signal amplification with less input current. Designers often select transistors with stable hfe values to ensure consistent gain and low distortion. For example, a small-signal amplifier may use a transistor with an hfe of 100 to achieve the desired voltage gain. The applications of transistor hfe in amplifiers include setting bias points, choosing resistor values, and predicting circuit behavior. When hfe varies, the amplifier’s performance can change, so designers use feedback and emitter resistors to stabilize the gain.
Note: Amplifier circuits work best when the hfe remains within a predictable range. This helps maintain sound quality and prevents unwanted distortion.
Switching Circuits
Switching circuits use transistors as electronic switches. The hfe value plays a critical role in these applications. A higher hfe means the transistor can reach full saturation with less base current. This improves switching speed and reduces heat. If hfe is too low, the transistor may not fully saturate, causing slower transitions and higher power loss. For instance, the TIP41C transistor shows hfe values from 15 to 75, which affects its ability to switch loads efficiently. Designers must consider the lowest expected hfe to ensure reliable operation. They often calculate base resistor values using a conservative hfe, sometimes as low as 10, to guarantee the transistor turns on fully under all conditions. The applications of transistor hfe in switching circuits include relay drivers, LED controls, and logic gates.
A table below summarizes key points:
| Application | Importance of hfe | Design Consideration |
|---|---|---|
| Amplifiers | Sets gain and bias | Stable hfe for low distortion |
| Switches | Ensures full saturation | Use minimum hfe for base resistor |
Troubleshooting
Understanding hfe helps technicians diagnose circuit problems. If a transistor fails to amplify or switch correctly, checking the hfe can reveal if the device has degraded. Technicians often use a multimeter to measure hfe and compare it to datasheet values. If the measured hfe is much lower than expected, the transistor may need replacement. In switching circuits, using a base resistor calculated for a higher hfe can cause incomplete switching if the actual hfe is lower. Simulation tools like SPICE help visualize how hfe changes affect circuit performance. When troubleshooting, always consider hfe variability due to temperature, aging, or manufacturing differences.
Tip: Always design and troubleshoot with the lowest expected hfe in mind to ensure reliable circuit operation.
Understanding transistor hFE remains essential for anyone designing or troubleshooting electronic circuits. hFE directly influences current amplification, bias settings, and switching reliability. Designers who account for hFE achieve more stable and efficient circuits.
-
hFE controls gain in amplifiers and switching circuits
-
Higher hFE values improve current amplification
-
Variations in hFE require careful measurement and design adjustments
Engineers should always check hFE values and plan for changes to ensure dependable circuit performance.
FAQ
What does hFE mean on a transistor datasheet?
hFE shows the DC current gain of a bipolar transistor. It tells how much the collector current increases for a given base current. Manufacturers list hFE as a range because it changes with temperature, current, and device differences.
Can hFE change during circuit operation?
Yes, hFE can change as the transistor heats up or as the collector current changes. Manufacturing differences also affect hFE. Designers must plan for these changes to keep circuits working reliably.
How does hFE affect amplifier performance?
A higher hFE allows more current amplification. If hFE drops, the amplifier may lose gain or distort signals. Engineers use feedback and emitter resistors to help stabilize amplifier performance when hFE varies.
Is hFE important for switching circuits?
Absolutely! hFE affects how much base current is needed to fully turn on a transistor. If hFE is too low, the switch may not work properly. Designers use the lowest expected hFE to choose safe base resistor values.
