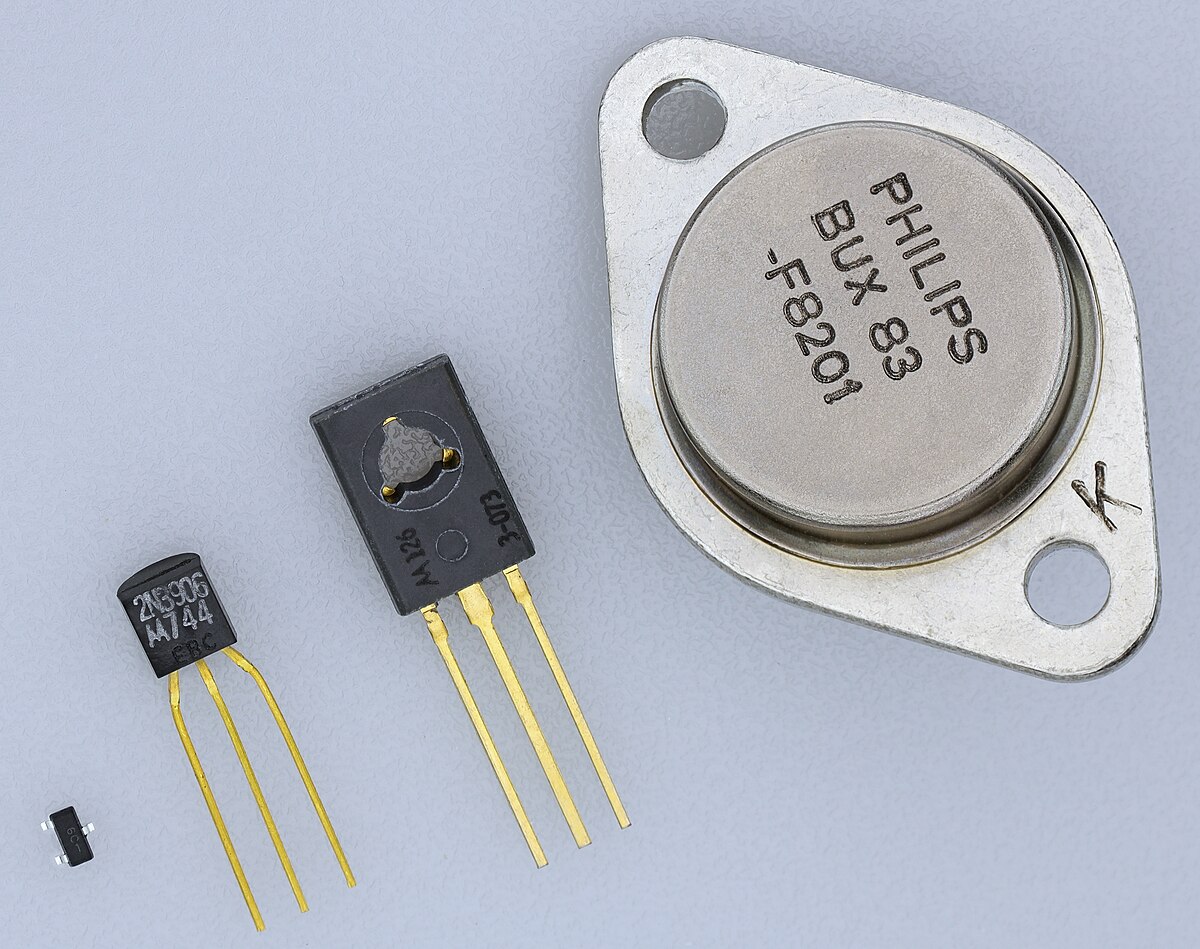

Transistors are the building blocks of modern electronic circuits. From amplifiers to microprocessors, these tiny semiconductor devices play a crucial role in enabling technology to function. When working with transistors, one key parameter often encountered is the "hFE," also known as the "DC current gain" or simply the "beta" (β). Understanding this value is essential for designing and troubleshooting circuits that rely on transistors.
In this blog, we’ll dive deep into what transistor hFE is, how it works, its significance, and how to measure it. We will also include a comparison table to clarify its relationship with other parameters, and an FAQ section to answer common questions about hFE.
Table of Contents:
1. What is hFE?
2. How Transistor hFE Works
3. Significance of hFE in Transistor Circuits
4. Types of Transistors and Their hFE
5. How to Measure hFE
6. hFE vs. Other Transistor Parameters
7. Common Applications of hFE
8. Conclusion
9. FAQs
What is hFE?
hFE (also referred to as β, or DC current gain) is a parameter that represents the ratio of the output current (collector current) to the input current (base current) in a bipolar junction transistor (BJT). In simpler terms, it tells us how many times the base current is amplified to produce the collector current.
For an NPN transistor, the hFE value can be calculated as:
hFE=ICIBhFE = \frac{I_C}{I_B}
Where:
• ICI_C is the collector current
• IBI_B is the base current
How Transistor hFE Works
Transistors are designed to control the flow of current through their collector-emitter paths by using a smaller current to control a larger one. The hFE parameter defines how efficiently the transistor amplifies the base current.
• When a small current flows into the base of a BJT transistor, it controls a larger current between the collector and emitter.
• The value of hFE indicates how much larger the collector current is compared to the base current. For instance, if a transistor has an hFE of 100, it means that for every 1 mA of base current, the transistor can allow 100 mA of current to flow from the collector to the emitter.
hFE can vary depending on the transistor type (NPN or PNP), the transistor’s material, the operating conditions (such as temperature), and the specific model of the transistor. For practical purposes, hFE is often used in calculations for amplifiers, switches, and other transistor-based circuits.
Significance of hFE in Transistor Circuits
The hFE value is essential for understanding how a transistor will behave in a circuit. In particular, it affects the performance of amplifiers and switching circuits.
• Amplifier Circuits: In amplifier circuits, the hFE determines how much the signal is amplified. A high hFE value can result in greater amplification, making it ideal for applications requiring high-gain circuits.
• Switching Circuits: In switching circuits, hFE plays a key role in determining whether the transistor is operating in saturation (fully on) or cut-off (fully off). A transistor with a high hFE is often preferred for switching applications because it can be driven by smaller input currents to produce larger output currents.
• Load Handling: In cases where the transistor is used to drive heavy loads, hFE helps ensure the device will provide adequate current gain, allowing it to manage the load without overstretching its capabilities.
Types of Transistors and Their hFE
Different types of transistors will have varying hFE values. In general, BJTs have higher hFE values compared to Field Effect Transistors (FETs). However, the specific value of hFE can vary by manufacturer and transistor model.
| Transistor Type | Typical hFE Range |
|---|---|
| NPN Transistor | 20 – 1000 |
| PNP Transistor | 20 – 1000 |
| Power Transistor | 10 – 100 |
| Small-Signal Transistor | 50 – 300 |
| High Gain Transistor | 100 – 1000+ |
• Small-Signal Transistors: These are typically used in low-power applications, such as in audio amplifiers. They usually have moderate to high hFE values.
• Power Transistors: Power BJTs often have lower hFE values due to their focus on handling high current, rather than high gain.
How to Measure hFE
Measuring the hFE of a transistor can be done in a few different ways:
1. Using a Multimeter with hFE Function
Many modern digital multimeters come with an hFE testing function. Here’s how to use it:
- Place the transistor into the correct socket on the multimeter.
- Ensure you’ve connected the base, collector, and emitter leads of the transistor according to the multimeter’s instructions.
- The multimeter will display the hFE value directly.
2. Using a Test Circuit
To measure hFE manually, you can create a small test circuit by applying a known base current and measuring the collector current. From there, you can calculate the hFE using the formula:
hFE=ICIBhFE = \frac{I_C}{I_B}
3. Using a Transistor Tester
A more precise way to measure hFE is by using a dedicated transistor tester. This device is designed specifically to test the hFE of a transistor and can be more accurate than a multimeter in some cases.
hFE vs. Other Transistor Parameters
Transistor hFE is just one of several key parameters to consider when selecting or analyzing a transistor. Below is a comparison of hFE with other commonly encountered transistor parameters:
| Parameter | Description | Relation to hFE |
|---|---|---|
| VBE (Base-Emitter Voltage) | The voltage drop between the base and emitter when the transistor is conducting. Typical values range from 0.6V to 0.7V for silicon BJTs. | A high hFE can result in a lower base-emitter voltage drop at higher currents. |
| VCE (Collector-Emitter Voltage) | The voltage difference between the collector and emitter when the transistor is conducting. Affects the transistor's operation in saturation or active regions. | Higher hFE values help ensure consistent current flow under varying VCE conditions. |
| IC (Collector Current) | The current flowing from the collector to the emitter when the transistor is on. | hFE determines how much IC can be controlled by IB. |
| Thermal Runaway | The tendency of a transistor to increase current and temperature, leading to damage if not properly managed. | High hFE can contribute to thermal runaway if not managed with proper biasing. |
Common Applications of hFE
Transistor hFE is important in a wide range of applications:
• Amplifiers: hFE is used in designing amplifiers, as it determines the gain of the amplifier.
• Switching Circuits: hFE is critical when using transistors as switches in logic circuits and power supplies.
• Oscillators: In oscillating circuits, a high hFE ensures stable waveform generation.
• Signal Processing: In audio and RF circuits, the hFE value affects signal amplification, clarity, and distortion.
Conclusion
In conclusion, understanding the concept of hFE, or the current gain of a transistor, is essential in the field of electronics. This parameter provides us with crucial insights into how a transistor functions, specifically in terms of its capacity to amplify current. hFE (Beta, β) allows us to determine the behavior of transistors in various applications such as signal amplification, biasing, and digital switching.
However, it is important to note that this parameter can vary based on several factors such as manufacturing differences, temperature, and operating conditions. Therefore, while hFE is a vital factor in circuit design, engineers should ensure that their designs don't rely solely on a specific hFE value for correct operation. Additionally, other types of transistor gain, such as hfe, alpha, voltage gain, and power gain, each have their unique importance and applications. Understanding these different aspects of transistor operation is foundational to the design and analysis of electronic circuits.
Transistor hFE is a fundamental parameter that defines how a transistor amplifies the input current. Whether you are designing amplifiers, switches, or oscillators, understanding the hFE value is critical to achieving the desired performance. By knowing how to measure and interpret hFE, you can make informed decisions when selecting transistors for specific applications.
FAQs
1. What is a good hFE value for a transistor?
A good hFE value depends on the specific application. For small-signal amplifiers, an hFE between 50 and 300 is typical. For power applications, lower hFE values around 20 to 100 are more common.
2. Can hFE be too high?
Yes, a high hFE can lead to instability in some circuits. It's important to consider other parameters like thermal stability and the operating point when choosing a transistor.
3. Does hFE change with temperature?
Yes, hFE can decrease at higher temperatures, which is why temperature management is crucial in high-power transistor applications.
4. How do I choose the right transistor based on hFE?
When choosing a transistor, consider the current gain (hFE), but also ensure the transistor meets other criteria such as voltage, current handling, and thermal stability for your specific circuit.
