Air Core Inductors vs Iron Core Inductors: Differences, Uses, and Applications

Air Core Inductors offer stable high-frequency performance, while iron core inductors provide higher inductance for power applications. Compare uses and benefits.

Components & Parts

Air Core Inductors vs Iron Core Inductors

Air core inductors have air or plastic in the center. Iron core inductors use a magnetic iron core instead. The core material changes how the inductor holds magnetic energy. Air core inductors have low inductance. They do not lose much signal at high frequencies, even up to 1 GHz. Iron core inductors have higher inductance. But they lose more signal above 100 MHz. The iron core works better at lower frequencies. But it can get saturated and lose more energy at high frequencies. Picking the right inductor is important. The core material affects efficiency, frequency response, and energy storage. Engineers choose air core or iron core inductors based on what their circuits need.

Key Takeaways

  • Air core inductors use air or non-magnetic stuff. They give steady inductance and work well at high frequencies up to 1 GHz.

  • Iron core inductors have magnetic cores. These give more inductance and store more energy. This makes them good for power supplies and low-frequency circuits.

  • Air core inductors do not get saturated or lose energy from magnetism. But they are bigger, cost more, and have more resistance than iron core inductors.

  • Iron core inductors are smaller and work better in power uses. They also cost less. But they can get saturated and lose signal quality at high frequencies.

  • Picking the right inductor depends on frequency, current, size, and cost. Air core inductors are best for high-frequency signals. Iron core inductors are better for power and audio uses.

Air Core Inductors

Definition

Air core inductors have air, plastic, or ceramic inside the coil. They do not use any magnetic material. Air is used most because it does not change the coil’s magnetism. Without a magnetic core, these inductors do not have problems like magnetic saturation. Their inductance stays steady even if the current goes up. Engineers pick air core inductors for circuits that need to work well and stay stable at high frequencies.

Construction

To make air core inductors, manufacturers wind wire into a coil. The wire wraps around a support made of plastic or ceramic. These supports are not magnetic. They just hold the coil in place. The coil can be shaped like a cylinder or a ring. The number of wire turns, the coil’s width, and the space between wires all change the inductance. Air core inductors do not use iron or other magnetic materials. This means they do not lose energy from hysteresis or eddy currents. Their design gives them a high Q factor. This helps them work well in radio frequency circuits.

Tip: Air core inductors with ceramic supports give high linearity and less core loss. This makes them good for switch mode uses.

How Air Core Inductors Work

Air core inductors store energy in a magnetic field made by the current in the coil. With no magnetic core, the magnetic field spreads out into the air. This makes the inductance lower than iron core inductors. The magnetic field is weaker and spreads more. Because of this, air core inductors give off more electromagnetic radiation. This can cause more interference in nearby circuits. But, with no magnetic core, the inductance stays steady even at high currents. Air core inductors do not saturate. They keep working well at high frequencies. Engineers use them in radio transmitters, receivers, and other circuits that need steady inductance at high frequencies.

FeatureAir Core Inductors
Core MaterialAir, plastic, ceramic
Inductance StabilityHigh
Frequency RangeUp to 1 GHz
Energy LossesVery low
Typical ApplicationsRF circuits, filters

Iron Core Inductors

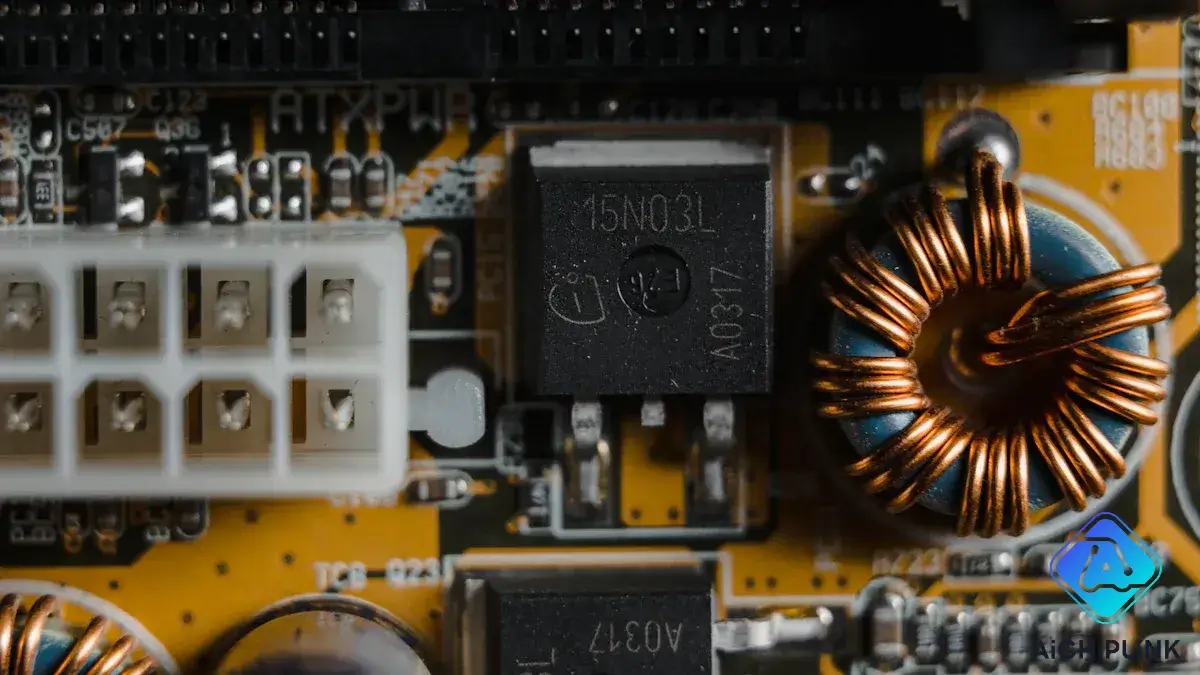

Iron Core Inductors

Image Source: pexels

Definition

Iron core inductors have a coil with an iron core inside. The iron core makes the magnetic field stronger. This helps iron core inductors reach higher inductance than air core ones. They work well in circuits that need strong magnetic fields. They also store more energy. You can find these inductors in power supplies, transformers, and audio equipment. The iron core lets the inductor handle more current and store more energy.

Construction

Manufacturers make iron core inductors by wrapping copper wire around a magnetic core. The core can be made from different materials:

  • Ferrite

  • Silicon steel

  • Powdered iron

  • Manganese-zinc (MnZn) ferrite

  • Nickel-zinc (NiZn) ferrite

  • Amorphous metal

  • Nanocrystalline cores

Each material changes how the inductor works. Ferrite cores help lower eddy current losses at high frequencies. Silicon steel is best for low-frequency circuits. Powdered iron cores can handle high currents and have high permeability. MnZn ferrite lets the inductor handle bigger current swings. NiZn ferrite helps filter out noise. Amorphous and nanocrystalline cores give low losses and high efficiency.

Construction TechniqueDescription
Laminated Iron CoresThin steel sheets stacked to lower eddy current losses.
Toroidal CoresDoughnut shapes that keep magnetic fields inside and reduce interference.
Winding TechniqueHelical winding of copper wire around the iron core, often coated with epoxy for insulation.
Core MaterialIron core shaped as rods, cylinders, or toroids, chosen for the application.

These building methods help iron core inductors have more inductance and lose less energy.

How Iron Core Inductors Work

Iron core inductors use the iron core’s high permeability to focus the magnetic field. The formula for inductance shows that higher permeability means more inductance. The iron core gives the magnetic field an easy path. This lets the inductor have more inductance with fewer wire turns. Iron core inductors can store more energy and handle more current. The iron core also keeps the magnetic field steady and reduces energy loss. This makes iron core inductors work better in power circuits. Iron core inductors can be smaller and lighter than air core types with the same inductance. Their strong magnetic field and high inductance make them good for transformers, chokes, and power filters.

Note: If too much current flows, iron core inductors can saturate. When this happens, the inductance drops and the inductor does not work as well.

Inductor Differences

Magnetic Properties

  • Air core inductors use plastic or ceramic, which are not magnetic. These materials do not let magnetism pass through easily, so inductance stays low.

  • Iron core inductors use iron, ferrite, or powdered iron inside. These materials let magnetism pass through well. The strong magnetic field in the iron core makes inductance higher and helps in power circuits.

  • Iron core inductors can store more energy and work well in transformers because of their high permeability.

  • Iron core inductors can lose energy from hysteresis and eddy currents. Air core inductors do not have these problems.

  • Air core inductors work well at high frequencies and keep the signal clear.

Efficiency

  • The core material affects how well an inductor works. Iron core inductors use special materials like ferrite, powdered iron, and nanocrystalline alloys to lower energy loss.

  • Powdered iron cores stay cool and cost less. Ferrite cores work well at high frequencies and help transformers run better.

  • Nanocrystalline alloys help cut down on energy loss and make the inductor work better.

  • Picking the right core material helps the inductor store energy, lose less energy, and handle heat. This makes power systems work better and last longer.

  • Air core inductors do not lose energy in the core but have higher DC resistance, which can lower efficiency.

  • Iron core inductors are often more efficient in power circuits, especially in transformers and high-current uses.

  • Good efficiency means less wasted energy and better performance.

  • Engineers pick the core material that fits the design best to get the most efficiency.

Frequency Response

  • Air core inductors work well at high frequencies. They do not get saturated and have less unwanted capacitance, so the signal stays clean.

  • Iron core inductors can use thicker wire and need fewer turns, which lowers DC resistance and signal loss. But they have more unwanted capacitance, which can hurt high-frequency performance.

  • Air core inductors give better sound and low frequencies in audio circuits. Their design helps keep the signal good.

  • Iron core inductors may not work as well at high frequencies because of saturation and extra capacitance.

  • For circuits that need to work at many frequencies, air core inductors often do better.

Size and Weight

ParameterAir Core Inductor (14 AWG)Air Core Inductor (12 AWG)Iron Core Inductor (14 AWG)
Inductance1.5 mHN/A1.5 mH
Coil Weight~1 pound~1.7 poundsN/A
DC Resistance (DCR)0.278 ohm~0.14 ohm0.084 ohm
  • Iron core inductors are smaller and lighter than air core ones with the same inductance. The iron core makes them more efficient, so less wire is needed.

  • Air core inductors need more wire and turns, so they are bigger and heavier. This can change how transformers and power devices are built.

  • Iron core inductors have lower DC resistance, which helps them work better.

Cost

Inductor TypeInductanceWire GaugeCost (USD)DC Resistance (ohms)
Air Core4 mH14 gauge$40+0.5
Iron Core4 mH15 gauge~$180.21
Core TypeCost Level
Air CoreModerate
Iron CoreLow
Ferrite CoreModerate
  • Air core inductors cost more than iron core ones for the same inductance. They use more wire and are bigger, which raises the price.

  • Iron core inductors are cheaper for many power and transformer uses.

  • Ferrite cores cost a medium amount and work well.

Saturation

  • Iron core inductors can get saturated. When this happens, inductance drops and the signal can get distorted.

  • Saturation in iron core inductors can cause distortion, especially at high currents.

  • Air core inductors do not get saturated. They keep working well even with high currents, but they cost more and have higher DC resistance.

  • Iron core inductors work well in power and transformer circuits if they are picked for the right current.

  • In low current circuits, iron core inductors with big air gaps can lower distortion and energy loss.

  • Air core inductors do not have saturation problems but need careful design to stay efficient and not get too big.

  • Engineers must think about saturation when picking iron core inductors for power and transformer circuits.

Air-Core Inductors vs Iron-Core Inductors: Applications

Air-Core Inductors Uses

Air-core inductors are important in high-frequency circuits. Engineers pick them when they want steady performance and little energy loss. Their design helps keep signals clear.

  • Oscillators in RF circuits use air-core inductors for steady frequencies.

  • Filters in telecom systems use them to block unwanted signals.

  • High-frequency transformers use air-core types to stop core saturation.

  • Amateur radios and RF amplifiers need air-core inductors for clear signals.

  • Tuning circuits use air-core inductors to pick exact frequencies.

Air-core inductors have low distortion and can handle high currents. They respond in a straight line and are very reliable. This makes them great for communication and signal filtering in telecom systems.

Iron-Core Inductors Uses

Iron-core inductors are used where strong magnetic fields and high inductance are needed. They work best in low-frequency and power circuits. They are small and cost less, so many industries use them.

  • Power supplies in factories use iron-core inductors to store and filter energy.

  • Audio gear, like budget systems and crossovers, use iron-core inductors for low sounds.

  • Power systems and inverters use iron-core inductors to handle big currents.

  • Trains and factory machines use iron-core inductors for strong power.

  • Power transformers use iron-core designs for high inductance and small size.

Iron-core inductors are easy to cover and simple to use. They work well in power and audio gear, but can cause distortion at high frequencies.

Application Comparison

Air-core and iron-core inductors are good for different jobs. Air-core inductors are best for high-frequency electronics. They lose little energy and keep working well. These inductors are used in telecom, RF circuits, and signal filters. They help keep signals clean and stop core saturation.

Iron-core inductors are used in power supplies and factory electronics. They can store more energy and handle bigger currents. This makes them good for power systems, transformers, and audio crossovers. In telecom, iron-core inductors help control power and keep big systems running well.

Application AreaAir-Core InductorsIron-Core Inductors
Frequency RangeHigh (RF, telecommunications)Low to medium (power, audio)
Signal FilteringExcellent for high-frequency noiseGood for low-frequency filtering
Power SuppliesUsed in high-frequency suppliesCommon in industrial supplies
Audio ElectronicsUsed in high-fidelity circuitsUsed in budget and mid-range gear
Size and CostLarger, more expensiveSmaller, cost-effective

Tip: If you need high-frequency and clear signals, pick air-core inductors. For power supplies, audio crossovers, and factory electronics, iron-core inductors save money and work better.

Engineers should pick the right inductor for each job. Air-core inductors work best in telecom and signal filters. Iron-core inductors are better for power and audio electronics.

Choosing the Right Inductor

Selection Tips

Picking the right inductor means thinking about many things. Engineers check the self-resonant frequency, or SRF, first. The SRF should be much higher than the circuit’s working frequency. This helps stop unwanted resonance and keeps the inductor steady. Ceramic core inductors work well above 100 MHz. They have low loss and a high Q factor. Air core inductors are best for high-frequency circuits where clear signals matter. Wirewound cores can cause problems at very high frequencies. Designers need to watch out for these issues.

The size and shape of the inductor also matter. Small inductors save space but might get hotter and have more resistance. Thin-film inductors give exact inductance and high Q at very high frequencies. But they cost more money. Engineers also look at parasitic capacitance and resistance. These can change how well the inductor works and how much power it can handle. Air core inductors have less core loss but lower inductance. For power circuits, designers try to balance core loss and copper loss. They want more copper loss to keep the inductor from getting too hot.

Tip: Always pick an inductor with the right current rating. This stops overheating and keeps the circuit working well.

Decision Factors

Engineers think about many things when picking air core or iron core inductors. The table below shows the main differences:

FactorAir Core InductorsIron Core Inductors
Inductance ValueLower inductance, requires more windingsHigher inductance with fewer windings
Q FactorHigh Q factor, better signal clarityLower Q factor, can reduce signal clarity
Frequency RangeSuitable for high frequencies (midrange and treble)Best suited for low frequencies (below 200-300Hz)
Size and ResistanceLarger size, higher resistanceSmaller size, lower resistance
Signal ClarityBetter clarity due to absence of core energy storageCan reduce clarity due to energy stored in core
CostGenerally higher due to size and wire gaugeLower cost due to smaller size and fewer windings

The inductance value should match the circuit’s needs. Q factor is important for clean signals and good efficiency. A higher Q gives cleaner signals but less inductance. The current rating matters for power circuits. It helps stop overheating and saturation. The inductor’s size and shape must fit the space in the device. Iron core inductors use magnetic cores to make the magnetic field stronger. This means they can use thinner wire and fewer turns. They are smaller and cost less, but may not keep signals as clear at high frequencies. Air core inductors do not have a magnetic core. They have low inductance, high Q, and a straight response. They are best for high-frequency circuits where clear signals are needed. But they are bigger and have more resistance.

Engineers must balance electrical needs, heat, and size. Good choices help the inductor work better and last longer. This keeps power systems and other devices running well.

FeatureAir Core InductorsIron Core Inductors
EfficiencyOver 95%Moderate
Frequency RangeWide, stableLimited, varies
CostHigherLower
ApplicationRF, audio, wirelessPower, automotive, industry

Air core inductors work very well and stay steady at high frequencies. Iron core inductors are good for power and car uses. They cost less and can hold more energy. Engineers need to pick the right inductor for the job. They should think about the frequency, how much energy is needed, and where the circuit will be used. This helps the circuit work well and last a long time.

Tip: Pick inductors that can handle heat and have the right ratings. This helps them last longer, even in tough places.

FAQ

What is the main difference between air core and iron core inductors?

Air core inductors have air or plastic inside. These are not magnetic. Iron core inductors use iron or ferrite, which are magnetic. The core material changes how much inductance the inductor has. It also affects how well it works and what frequencies it can handle.

Why do engineers choose air core inductors for high-frequency circuits?

Air core inductors work great at high frequencies. They do not get saturated. Their design helps keep signals strong and steady. Engineers use them in radios and telecom systems.

Can iron core inductors handle more current than air core inductors?

Iron core inductors can take more current. The magnetic core lets them store more energy. They are best for power supplies and transformers.

Do air core inductors cost more than iron core inductors?

Air core inductors usually cost more money. They need more wire and are bigger. Iron core inductors use less wire and are smaller, so they cost less.

How does saturation affect iron core inductors?

Saturation makes the inductance go down. The inductor might change signals and lose power. Engineers must pick the right core size to stop saturation.
