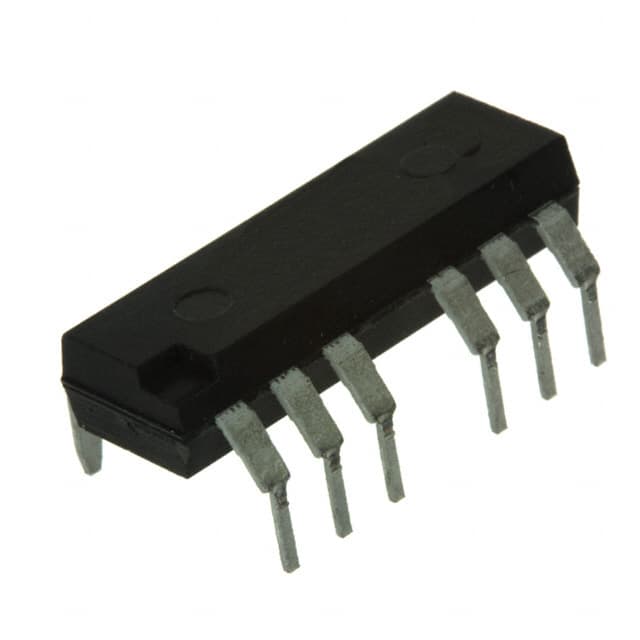

DIODES ZMC10D

Manufacturer No:

ZMC10D

Manufacturer:

DIODES

Package:

14-DIP (0.400, 10.16mm)

Description:

Magnetoresistive, Open Loop Sensor 1-Channel Bidirectional -25°C~100°C 100kHz

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ZMC10D information

DIODES ZMC10D technical specifications, attributes, parameters and parts with similar specifications to DIODES ZMC10D.

Type
Parameter

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
14-DIP (0.400, 10.16mm)

Number of Pins
12

Operating Temperature
-25°C~100°C

Packaging
Bulk

JESD-609 Code
e3

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
14

Terminal Finish
Matte Tin (Sn)

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
2.54mm

Reach Compliance Code
unknown

Current Rating
10A

Frequency
100kHz

Time@Peak Reflow Temperature-Max (s)
40

Output
Ratiometric, Voltage

Pin Count
14

Current - Supply (Max)
20mA

Qualification Status
Not Qualified

Operating Supply Voltage
12V

Analog IC - Other Type
ANALOG CIRCUIT

Polarization
Bidirectional

Max Supply Current
20mA

Sensor Type
Magnetoresistive, Open Loop

For Measuring
AC/DC

Height Seated (Max)
3.8mm

Width
7.62mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for DIODES ZMC10D.

ZMC10D Overview

As a safety precaution, current sensors are placed in 14-DIP (0.400, 10.16mm) packages. Bulk protects the current sensors from damage. There should be 20mA maximum current supplied by these current sensors. If the current supplied by the current sensor is greater than 20mA, then the sensor should be faulty. Sensors with 14 terminations measure current. Current sensors are designed for currents of 10A. In this current sensor, there are 12 pins. As long as the current sensors are operating, they could supply a voltage of 12V. An electronic part with 14 pins is available.

ZMC10D Features

Moisture Sensitivity Level: 1 (Unlimited)
Operating Temperature: -25°C~100°C
1 Channels
Mounting Type: Through Hole
Sensor Type: Magnetoresistive, Open Loop
Frequency: 100kHz
14-DIP (0.400, 10.16mm) Package

ZMC10D Applications

There are a lot of Diodes Incorporated
ZMC10D Current Sensors applications.

Overcurrent protection
DC and AC power monitoring
Closed-L oop DC- and AC-Current Sensor Modules
Leakage Current Sensors
Industrial Monitoring and Control Systems
Overcurrent Detection
Frequency, Voltage, and Solar Inverters
Electrical drives
General purpose inverters
AC variable speed drives
