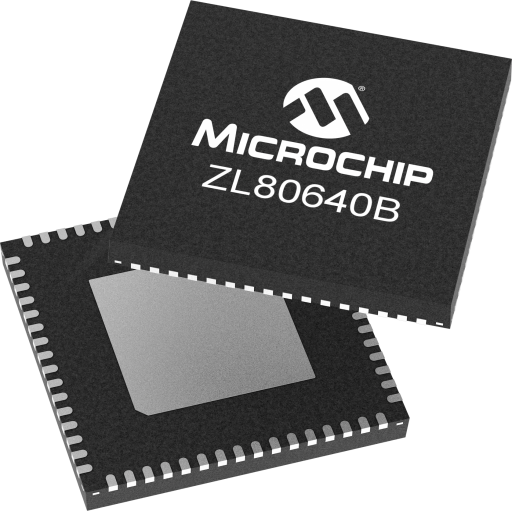

Microchip ZL80640BLDG1

Manufacturer No:

ZL80640BLDG1

Manufacturer:

Microchip

Package:

Description:

ePPS TimeBuffer with up to 4 Inputs and 12 Outputs

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ZL80640BLDG1 information

Microchip ZL80640BLDG1 technical specifications, attributes, parameters and parts with similar specifications to Microchip ZL80640BLDG1.

Type
Parameter

5G Product
Yes

Download datasheets and manufacturer documentation for Microchip ZL80640BLDG1.

The ZL80640B is a feature-rich ePPS TimeBuffer with up to 4 inputs and 12 outputs. This time-signal fanout solution with ePPS, fast & smooth Ref-Sync locking features is ideal for server-based 5G DU/CU applications.

The part can be used on OCP NIC daughter card or PCIe daughter card, or distribution with a large Telecom chassis system.

We also have ePPS ZL80132B Network Synchronizer and ePPS buffer ZL40268 to form full Timing solution for OCP solutions and 5G networks.

Time signal fanout
One DPLL for buffer channel
Second DPLL for input phase/frequency measurement
Time signal conversion between Ref-Sync pair and embedded Sync signals
Time signal phase/frequency measurement
Inputs: up to 4, differential or single-ended
Any input frequency from 1 kHz to 1250 MHz
Any frequency 0.5 Hz to 500 MHz
Outputs: up to 6 differential, up to 12 CMOS
Core power consumption <0.9W

Automatic self-configuration at power-up from internal Flash memory, 7 configurations
Input-to-output alignment <100 ps
Fast Ref-Sync locking for frequency and 1PPS phase alignment with lower-cost oscillator
Easy-to-configure design requires no external VCXO or loop filter components
5 GPIO pins with many possible behaviors, each REF can be GPI, each OUT can be GPO
SPI or I2C processor Interface
1.8V and 3.3V core VDD voltages
Easy-to-use evaluation/programming software
