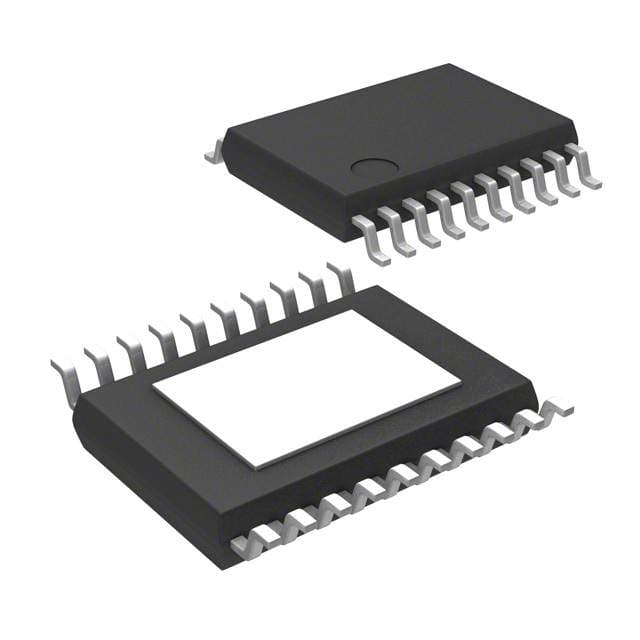

Renesas EL5624IREZ-T7

Manufacturer No:

EL5624IREZ-T7

Manufacturer:

Renesas

Package:

HTSSOP EP

Description:

6 Channels 140mA per Channel 50nA 45 dB Instrumentational OP Amps 0.05μA 8.25V 20 Pins HTSSOP EP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EL5624IREZ-T7 information

Renesas EL5624IREZ-T7 technical specifications, attributes, parameters and parts with similar specifications to Renesas EL5624IREZ-T7.

Type
Parameter

Mount
Surface Mount

Package / Case
HTSSOP EP

Packaging
Tape & Reel (TR)

Published
2003

JESD-609 Code
e3

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
20

ECCN Code
EAR99

Terminal Finish
MATTE TIN

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

HTS Code
8542.33.00.01

Subcategory
Buffer Amplifier

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
6

Supply Voltage
15V

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
20

JESD-30 Code
R-PDSO-G20

Qualification Status
Not Qualified

Operating Supply Voltage
8.25V

Number of Channels
6

Operating Supply Current
6.8mA

Nominal Supply Current
8.5mA

Current - Output
30mA

Slew Rate
15 V/μs

Amplifier Type
BUFFER

Common Mode Rejection Ratio
45 dB

Current - Input Bias
50nA

Output Current per Channel
140mA

Input Offset Voltage (Vos)
14mV

Gain Bandwidth Product
8MHz

Voltage Gain
0.069dB

Average Bias Current-Max (IIB)
0.05μA

-3db Bandwidth
12MHz

Min Dual Supply Voltage
2.25V

Height Seated (Max)
1.2mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas EL5624IREZ-T7.

EL5624IREZ-T7 Overview

Op amp is packaged in HTSSOP EP case. Op amps are BUFFER types of amplifier on the chip. Instrumentation amplifier is delivered in a Tape & Reel (TR) case. The number of terminations approaches 20. Linear amplifier has a total of 20 pins. Please take in mind that op amp should be run at 15V. Instrumentation amplifier is a part of Buffer Amplifier. Regarding input offset voltage, buffer amplifier rates 14mV voltage. Operational amplifier can operate supply current at 6.8mA. The voltage gain should stay at 0.069dB. Instrumentation amplifier has 6 channels on it. It should not lower than -40°C to operate buffer amplifier. It is recommended that op amp be used at temperatures below 85°C. The operating supply voltage of instrumentation amplifier is rated 8.25V voltage.

EL5624IREZ-T7 Features

20 Pins
supply voltage of 15V
0.069dB voltage gain

EL5624IREZ-T7 Applications

There are a lot of Intersil (Renesas Electronics America)
EL5624IREZ-T7 Instrumentational OP Amps applications.

Proportional operation circuits
Inverse/same-phase proportional circuit
Addition operation circuits
Subtraction operation circuits
single/dual op amp sum and difference circuits
Integrator circuits
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
