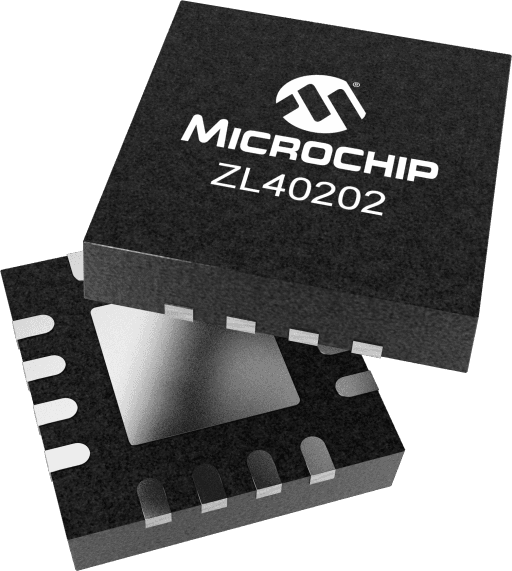

Microchip ZL40202LDG1
Manufacturer No:
ZL40202LDG1
Manufacturer:
Package:
16-VFQFN Exposed Pad
Description:
2.5/3.3V Low Jitter 1:4 LVPECL Fanout Buffer
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
ZL40202LDG1 information
Microchip ZL40202LDG1 technical specifications, attributes, parameters and parts with similar specifications to Microchip ZL40202LDG1.
- Type
- Parameter
- Description
- 1:4
- Input
- LVPECL, LVDS, HCSL, CML, LVCMOS
- Output
- LVPECL
- Supply Voltage
- 2.5/3.3
- Max Freq (GHz)
- 0.75
- Icc (mA)
- 140
- Max Within Device Skew (ps)
- 100
- OE
- False
- Input Mux
- False
- Number Of Outputs
- 2
- Buffer Type
- Fanout
- Fanout
- 1:4
- Max Prop Delay (ps)
- 2000
Download datasheets and manufacturer documentation for Microchip ZL40202LDG1.
Data Sheets:
Application Notes:
The ZL40202 is an LVPECL clock fanout buffer with four identical output clock drivers capable of operating at frequencies up to 750MHz.
Inputs to the ZL40202 are externally terminated to allow use of precision termination components and to allow full flexibility of input termination. The ZL40202 can accept DC coupled LVPECL or LVDS and AC coupled LVPECL, LVDS, CML or HCSL input signals; single ended input signals can also be accepted. A pin compatible device with internal termination is also available.
The ZL40202 is designed to fan out low-jitter reference clocks for wired or optical communications applications while adding minimal jitter to the clock signal. An internal linear power supply regulator and bulk capacitors minimize additive jitter due to power supply noise. The device operates from 2.5V+/-5% or 3.3V+/-5% supply. Its operation is guaranteed over the industrial temperature range -40°C to +85°C.
- Ultra low additive jitter of 39 fs RMS
- Accepts differential or single-ended inputs: LVPECL, LVDS, CML, HCSL, LVCMOS
- Four precision LVPECL outputs
- Operating frequency up to 750 MHz
- Option for 2.5 V or 3.3 V power supply with core current consumption of 62 mA
- On-chip Low Drop Out (LDO) Regulator for superior power supply noise rejection
