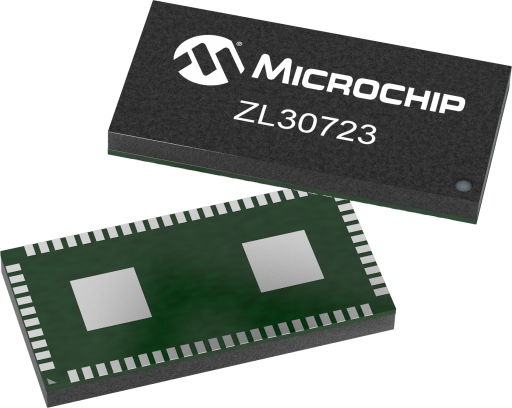

Microchip ZL30723LFG7Q09P

Manufacturer No:

ZL30723LFG7Q09P

Manufacturer:

Microchip

Package:

Description:

IEEE 1588 and Synchronous Ethernet Packet Dual Channel Network Synchronizer

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ZL30723LFG7Q09P information

Microchip ZL30723LFG7Q09P technical specifications, attributes, parameters and parts with similar specifications to Microchip ZL30723LFG7Q09P.

Type
Parameter

Download datasheets and manufacturer documentation for Microchip ZL30723LFG7Q09P.

Product Brief:

36661cbfd88a7319639a750d4d375808.pdf

The ZL30723 is a combined hardware and software platform including IEEE 1588TM-2008 Precision Time Protocol Stack, Synchronization Algorithm and Microsemi's dual channel System Synchronizer Clock Generation hardware. With two DPLLs/NCOs and two ultra-low jitter APLLs the device provides two independent timing channels. Six fully programmable inputs and outputs are included in the 5x10mm package providing for a highly integrated Synchronous Ethernet / IEEE 1588 timing solution.

Click here for secure documentation

Dual High Quality DPLL Channels
Packet Network Frequency and Phase Sync

Frequency accuracy for GSM, WCDMA-FDD, LTE-FDD base stations and small cells
Frequency performance for ITU-T G.823 and G.824 synchronization interface, G.8261 PNT, PEC and CES interfaces and G.8263 PEC-S-F
Phase synchronization performance for WCDMA-TDD, TD-SCDMA, CDMA2000, LTE-TDD and LTE-A applications
Client holdover and reference switching between multiple servers
Support for new ITU-T packet clock, drafts or recs: G.8263 PEC, G.8273.2 T-BC & T-TSC w/o SyncE and G.8273.4 T-BC-P, T-TSC-P
Hybrid Mode for mixing SyncE and IEEE 1588

Physical Layer Clock Synchronization

ITU-T G.8262 SyncE EEC options 1 and 2

Low-Bandwidth DPLL Per Channel

Programmable bandwidth from 0.1Hz to 500Hz
Hitless reference switching
High-resolution holdover averaging
Numerically controlled oscillator mode

Input Clocks Per Channel

Up to 3 inputs, 2 differential/CMOS, 1 CMOS
Any input frequency from 8kHz to 1250MHz (8kHz to 300MHz for CMOS)
Per-input activity and frequency monitoring

Low-jitter Fractional-N APLL and 3 Outputs Per Channel

Any output frequency from <1Hz to 1035MHz
High-resolution fractional frequency conversion with 0ppm error
Encapsulated design requires no external VCXO or loop filter components
Output jitter as low as 0.25ps RMS (12kHz-20MHz integration band)
Outputs are CML or 2xCMOS, can interface to LVDS, LVPECL, HSTL, SSTL and HCSL
Per-output supply pin with CMOS output voltages from 1.5V to 3.3V
Precise output alignment circuitry and per-output phase adjustment
Per-output enable/disable and glitchless start/stop (stop high or low)

General Features

Automatic self-configuration at power-up from internal EEPROM; up to four configurations
Input-to-output alignment with external feedback
SPI/I2C processor interface
Easy-to-use evaluation software

Typical Applications

ITU-T G.8262 system timing cards for Synchronous Ethernet systems
System timing cards which support ITU-T G.781 SETS (SDH Equipment Timing Source)
Mobile backhaul NID, cell-site router, edge switch/router, microwave or access aggregation node
EPON/GPON OLT and ONU/ONT
DSLAM and RT-DSLAM
10G, 40G and 100G line cards
SONET/SDH, Fibre channel, XAUI

Integrated base station reference synchronization for air interfaces for

GSM, WCDMA, TD-SCDMA, LTE and LTE-A
FDD or TDD mobile technology
Femtocells, small cells (residential, urban, rural, enterprise), picocells and macrocells
