TI OPA567AIRHGRG4

Manufacturer No:

OPA567AIRHGRG4

Manufacturer:

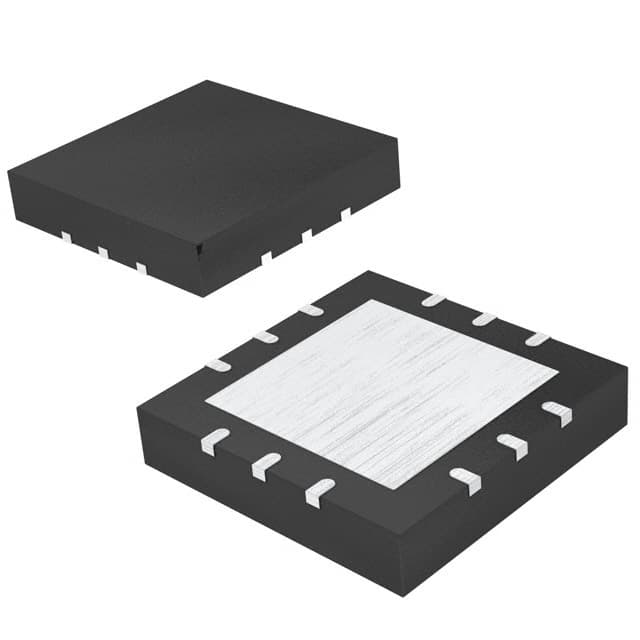

Package:

VQFN

Description:

1 Channels 2.4A per Channel 10pA 80 dB Instrumentational OP Amps 12 Pins VQFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

OPA567AIRHGRG4 information

TI OPA567AIRHGRG4 technical specifications, attributes, parameters and parts with similar specifications to TI OPA567AIRHGRG4.

Type
Parameter

Package / Case
VQFN

Surface Mount
YES

Number of Pins
12

Packaging
Tape & Reel (TR)

JESD-609 Code
e4

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
12

ECCN Code
EAR99

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Max Operating Temperature
125°C

Min Operating Temperature
-55°C

Subcategory
Operational Amplifier

Packing Method
TAPE AND REEL

Terminal Position
QUAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
5V

Pin Count
12

Power Supplies
3/5V

Temperature Grade
MILITARY

Number of Channels
1

Max Supply Voltage
5.5V

Min Supply Voltage
2.7V

Operating Supply Current
9mA

Current - Output
2A

Slew Rate
1.2 V/μs

Architecture
VOLTAGE-FEEDBACK

Amplifier Type
OPERATIONAL AMPLIFIER

Common Mode Rejection Ratio
80 dB

Current - Input Bias
10pA

Output Current per Channel
2.4A

Input Offset Voltage (Vos)
500μV

Bandwidth
1.2MHz

Gain Bandwidth Product
1.2MHz

Unity Gain BW-Nom
1200 kHz

Voltage Gain
126dB

Low-Offset
NO

Frequency Compensation
YES

Low-Bias
YES

Micropower
NO

Programmable Power
NO

Nominal Gain Bandwidth Product
1.2MHz

Max I/O Voltage
2mV

Power
YES

Length
5mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for TI OPA567AIRHGRG4.

OPA567AIRHGRG4 Overview

In order to protect the op amps, a VQFN case is used. There are two types of operational amplifiers in this circuit. In the case of Tape & Reel (TR) cases, linear amplifier will be delivered. In recent months, the number of terminations has approached 12. It consists of a total of 12 pins in total. It would be helpful if you could remember that this op amp ic should be powered by an 5V battery. A type of Operational Amplifier buffer op amp is what this device is specifically, to be more precise. It has 12 pins that make up the linear amplifier. In terms of input offset voltage, operational amplifier rates 500μV. In order for this instrumentation amplifier to operate, the supply current needs to be between 9mA and 10 . Maintain 126dB as the voltage gain. Buffer op amp is equipped with 1 channels on the device. It is recommended that the temperature of this op amp ic should not fall below -55°C degrees Fahrenheit at any time. Linear amplifier shouldn't be used above 125°C degrees. As a result of this, the buffer amplifier is packed in TAPE AND REEL. When it comes to the voltage from which this electrical part will operate, it can operate at a maximum of less than 5.5V. It is recommended that you keep the instrumentation amplifier's supply voltage higher than 2.7V when using it.

OPA567AIRHGRG4 Features

12 Pins
supply voltage of 5V
126dB voltage gain

OPA567AIRHGRG4 Applications

There are a lot of Texas Instruments
OPA567AIRHGRG4 Instrumentational OP Amps applications.

Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
Power control
Information processing
Weak signal detection
Signal amplification
