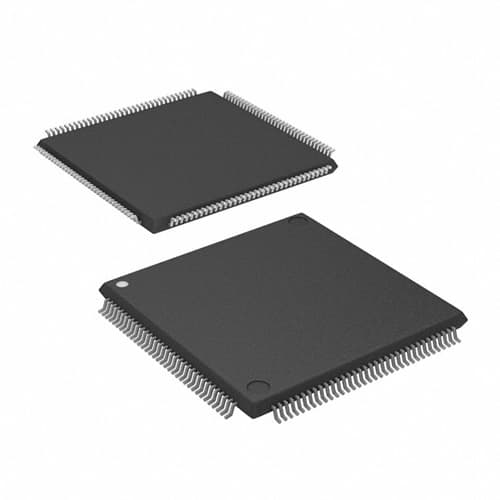

MAXLINEAR XR17C158CV-F

Manufacturer No:

XR17C158CV-F

Manufacturer:

MAXLINEAR

Package:

LQFP

Description:

5V V 1.6mm mm 20mm mm Interface - UARTs (Universal Asynchronous Receiver Transmitter) 20mm mm CMOS 144 250 144

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

XR17C158CV-F information

MAXLINEAR XR17C158CV-F technical specifications, attributes, parameters and parts with similar specifications to MAXLINEAR XR17C158CV-F.

Type
Parameter

Mount
Surface Mount

Package / Case
LQFP

Number of Pins
144

Weight
1.290414g

JESD-609 Code
e3

Pbfree Code
yes

Moisture Sensitivity Level (MSL)
4 (72 Hours)

Number of Terminations
144

Terminal Finish
Matte Tin (Sn)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
250

Supply Voltage
5V

Terminal Pitch
0.5mm

Pin Count
144

Operating Supply Voltage
5V

Temperature Grade
COMMERCIAL

Number of Channels
8

Max Supply Voltage
5.5V

Min Supply Voltage
4.5V

Memory Size
64B

Nominal Supply Current
5mA

uPs/uCs/Peripheral ICs Type
SERIAL IO/COMMUNICATION CONTROLLER, SERIAL

Clock Frequency
50MHz

Data Rate
6.25 Mbps

Address Bus Width
32

Boundary Scan
NO

Low Power Mode
YES

External Data Bus Width
32

Number of Serial I/Os
8

Bus Compatibility
PCI

Communication Protocol
ASYNC, BIT

Data Encoding/Decoding Method
NRZ

Length
20mm

Height Seated (Max)
1.6mm

Width
20mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for MAXLINEAR XR17C158CV-F.

XR17C158CV-F Overview

In addition, it is available in the cost-effective package LQFP.In order to transmit data, there are 8 channels available.There is a SERIAL IO/COMMUNICATION CONTROLLER, SERIAL used as the type of uPS/uCs/peripheral ICs.Configured with 144 terminations.The device operates at 5V voltage.Data communication is handled by 8 serial I/Os.UART is a type of 144-pin integrated circuUART.IC clock frequency is set to 50MHz.Ideally, the operating temperature should not exceed 0°C in order to ensure long-term performance.In order to ensure the normal functioning of the system for long periods of time, the operating temperature should not exceed 70°C.Initially, it will be configured with 144 pins.Using the Surface Mount method, it is mounted.Keeping the supply voltage below 5.5V will ensure reliability.Supply voltages above 4.5V are known to ensure reliability.In order to achieve high efficiency, it is provided with the supply voltage of 5V.Universal asynchronous receiver-transmitter operates at a supply current of 5mA, which is appropriate for specific applications.A memory with a size of 64B contains various information.

XR17C158CV-F Features

8 serial I/Os
Clock frequency of 50MHz
Operating supply voltage of 5V

XR17C158CV-F Applications

There are a lot of Exar Corporation
XR17C158CV-F UARTs applications.

Handheld Terminal
Personal Digital Assistants
Cellular Phones DataPort
Wireless Infrared Data Communications Systems
Handheld Terminals and Tablets
Handheld Computers
Wireless Portable Point-of-Sale Terminals
GPS Devices
Personal Digital Assistants Modules
Battery Operated Instruments
