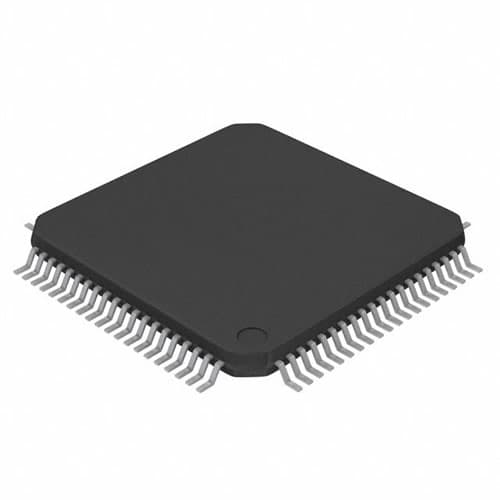

MAXLINEAR XR16V654IV80-F

Manufacturer No:

XR16V654IV80-F

Manufacturer:

MAXLINEAR

Package:

LQFP

Description:

3.3V V 1.6mm mm 12mm mm Interface - UARTs (Universal Asynchronous Receiver Transmitter) 12mm mm CMOS 80 260 80

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

XR16V654IV80-F information

MAXLINEAR XR16V654IV80-F technical specifications, attributes, parameters and parts with similar specifications to MAXLINEAR XR16V654IV80-F.

Type
Parameter

Mount
Surface Mount

Package / Case
LQFP

Number of Pins
80

Weight
639.990485mg

JESD-609 Code
e3

Pbfree Code
yes

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
80

Terminal Finish
MATTE TIN

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Additional Feature
ALSO OPERATES AT 2.5V SUPPLY @ 50MHZ

Subcategory
Serial IO/Communication Controllers

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Supply Voltage
3.3V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
80

Qualification Status
Not Qualified

Power Supplies
2.5/3.3V

Temperature Grade
INDUSTRIAL

Max Supply Voltage
3.6V

Min Supply Voltage
2.25V

Memory Size
64B

Operating Supply Current
3mA

Nominal Supply Current
3mA

uPs/uCs/Peripheral ICs Type
SERIAL IO/COMMUNICATION CONTROLLER, SERIAL

Data Rate
16 Mbps

Address Bus Width
3

Boundary Scan
NO

Low Power Mode
YES

External Data Bus Width
8

Number of Serial I/Os
4

Data Transfer Rate-Max
2 MBps

Communication Protocol
ASYNC, BIT

Length
12mm

Height Seated (Max)
1.6mm

Width
12mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for MAXLINEAR XR16V654IV80-F.

Datasheets:

exar-xr16v654iv80f-datasheets-8697.pdf

exar-xr16v654iv80f-datasheets-8698.pdf

XR16V654IV80-F Overview

There is a cost-effective LQFP package available for this product.The transmission of data takes place over 4 channels.The type SERIAL IO/COMMUNICATION CONTROLLER, SERIAL is used to identify the uPs/uCs/Peripheral ICs on the board.Configuration of this device involves 80 terminations.For its operation, it requires a supply voltage of 3.3V.Data is communicated via 4 serial I/Os.Electronic devices such as this are known as 80-pin integrated circuits.In light of numerous similarities, it is included in the subcategory of Serial IO/Communication Controllers.UART is recommended that the operating temperature does not exceed -40°C to ensure long-term, normal performance.Ideally, the operating temperature should not exceed 85°C in order to ensure long-term performance.The configuration of this device is based on the 80 pins.The mount is done using Surface Mount.UART is possible to ensure reliabilUARTy when the supply voltage is kept below 3.6V.When the supply voltage is kept above 2.25V, reliability can be ensured.When power supplies are provided of 2.5/3.3V, it is reliable and efficient for electronic designers.Furthermore, it has the ability to perform ALSO OPERATES AT 2.5V SUPPLY @ 50MHZ as well.With a supply current of 3mA, it is suitable for a variety of applications.Various information is stored in the memory with size 64B.

XR16V654IV80-F Features

4 serial I/Os
Power supplies of 2.5/3.3V
ALSO OPERATES AT 2.5V SUPPLY @ 50MHZ

XR16V654IV80-F Applications

There are a lot of Exar Corporation
XR16V654IV80-F UARTs applications.

Battery Operated Electronics
Handheld Terminal
Personal Digital Assistants
Cellular Phones DataPort
Wireless Infrared Data Communications Systems
Handheld Terminals and Tablets
Handheld Computers
Wireless Portable Point-of-Sale Terminals
GPS Devices
Personal Digital Assistants Modules
