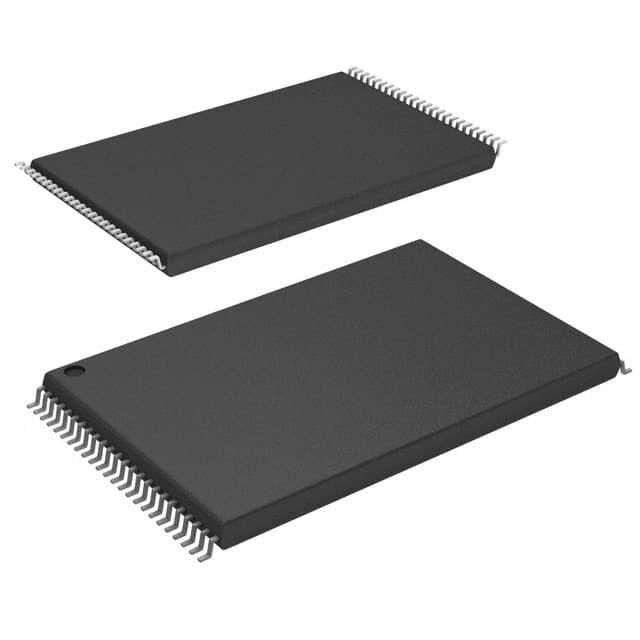

AMD XCF08PVOG48C

Manufacturer No:

XCF08PVOG48C

Manufacturer:

AMD

Package:

48-TFSOP (0.724, 18.40mm Width)

Description:

Surface Mount 8Mb Mb Tray Configuration Proms for FPGAs 3 (168 Hours) In System Programmable Active XCF*P

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

XCF08PVOG48C information

AMD XCF08PVOG48C technical specifications, attributes, parameters and parts with similar specifications to AMD XCF08PVOG48C.

Type
Parameter

Factory Lead Time
10 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
48-TFSOP (0.724, 18.40mm Width)

Number of Pins
48

Memory Types
FLASH

Operating Temperature
-40°C~85°C

Packaging
Tray

Published
1999

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
48

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

HTS Code
8542.32.00.51

Voltage - Supply
1.65V~2V

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
1.8V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
30

Base Part Number
XCF*P

Pin Count
48

Operating Supply Voltage
1.8V

Supply Voltage-Max (Vsup)
2V

Supply Voltage-Min (Vsup)
1.65V

Programmable Type
In System Programmable

Interface
Parallel

Memory Size
8Mb

Organization
8MX1

Standby Current-Max
0.001A

Memory Density
8388608 bit

Parallel/Serial
SERIAL

Endurance
20000 Write/Erase Cycles

Ambient Temperature Range High
85°C

Height
1.2mm

Length
12.1mm

Width
18.5mm

REACH SVHC
Unknown

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for AMD XCF08PVOG48C.

Product Description:

The XCF08PVOG48C is a high-density, 8-Megabit (8M x 1-bit) Flash configuration PROM designed by Xilinx Inc. for use in Field-Programmable Gate Arrays (FPGAs). This surface-mount device features a 48-pin, 48-terminal, 0.5mm pitch, gull-wing terminal package with a matte tin finish. The device operates within an ambient temperature range of -40°C to 85°C and has a supply voltage range of 1.65V to 2V.

Features:

High-density, 8-Megabit (8M x 1-bit) Flash memory
In-system programmable (ISP) for easy configuration
Parallel interface with a frequency of 50MHz
ECCN Code: EAR99
Lead-free and RoHS3 compliant
Operating supply voltage: 1.8V
Operating temperature range: -40°C to 85°C
Moisture sensitivity level (MSL): 3 (168 hours)
Mounting type: Surface mount
Package/case: 48-TFSOP (0.724, 18.40mm width)

Applications:

Primary applications: High-density, high-speed data storage and configuration for FPGAs
Secondary applications: Embedded systems, industrial control systems, and automotive electronics

Alternative Parts:

XCF08PVOG36C
XCF08PVOG32C
XCF08PVOG24C

Embedded Modules:

Xilinx Spartan-3 FPGA
Xilinx Virtex-2 FPGA
Xilinx Virtex-4 FPGA

Frequently Asked Questions (FAQs):

Q: What is the endurance of the XCF08PVOG48C? A: The XCF08PVOG48C has an endurance of 20,000 write/erase cycles.

Q: What is the operating frequency of the XCF08PVOG48C? A: The XCF08PVOG48C operates at a frequency of 50MHz.

Q: What is the supply voltage range of the XCF08PVOG48C? A: The XCF08PVOG48C operates within a supply voltage range of 1.65V to 2V.

Q: What is the packaging type of the XCF08PVOG48C? A: The XCF08PVOG48C is packaged in a 48-TFSOP (0.724, 18.40mm width) tray.

Q: What is the lead time for the XCF08PVOG48C? A: The lead time for the XCF08PVOG48C is 10 weeks.

Q: Is the XCF08PVOG48C lead-free? A: Yes, the XCF08PVOG48C is lead-free.

Q: Is the XCF08PVOG48C RoHS compliant? A: Yes, the XCF08PVOG48C is RoHS3 compliant.
