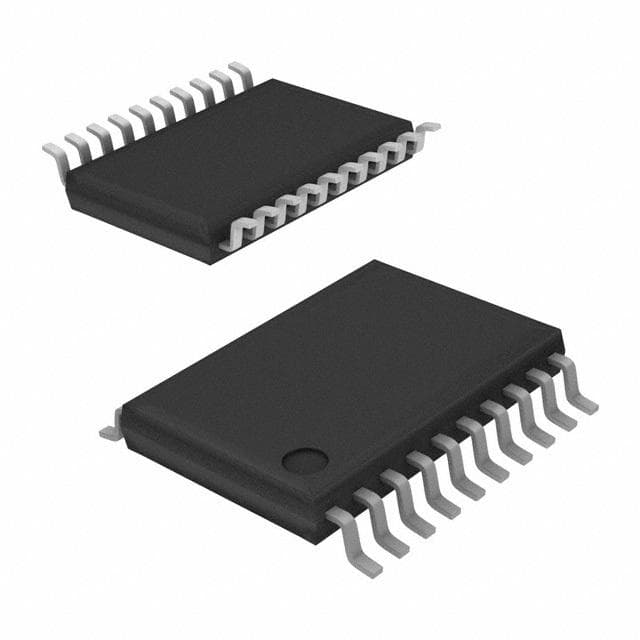

Renesas X9241AUVZ
Manufacturer No:
X9241AUVZ
Manufacturer:
Package:
TSSOP
Description:
20 Terminations 5V Digital Potentiometers I2C 64 Positions Min 4.5V V Max 5.5V V
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
X9241AUVZ information
Renesas X9241AUVZ technical specifications, attributes, parameters and parts with similar specifications to Renesas X9241AUVZ.
- Type
- Parameter
- Mount
- Surface Mount
- Package / Case
- TSSOP
- Number of Pins
- 20
- Packaging
- Bulk
- Published
- 2005
- Tolerance
- 20%
- JESD-609 Code
- e3
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Number of Terminations
- 20
- ECCN Code
- EAR99
- Temperature Coefficient
- 300 ppm/°C
- Resistance
- 50kOhm
- Number of Positions
- 64
- Terminal Finish
- Matte Tin (Sn) - annealed
- Max Operating Temperature
- 70°C
- Min Operating Temperature
- 0°C
- Subcategory
- Digital Potentiometers
- Technology
- CMOS
- Terminal Position
- DUAL
- Terminal Form
- GULL WING
- Peak Reflow Temperature (Cel)
- 260
- Number of Functions
- 4
- Supply Voltage
- 5V
- Frequency
- 100kHz
- Time@Peak Reflow Temperature-Max (s)
- 40
- Operating Supply Voltage
- 5V
- Power Supplies
- 5V
- Temperature Grade
- COMMERCIAL
- Interface
- I2C
- Number of Circuits
- 4
- Max Supply Voltage
- 5.5V
- Min Supply Voltage
- 4.5V
- Operating Supply Current
- 3mA
- Memory Type
- Non-Volatile
- Converter Type
- DIGITAL POTENTIOMETER
- Taper
- Linear
- Total Resistance
- 50000Ohm
- Resistor Terminal Voltage-Max
- 5V
- Resistor Terminal Voltage-Min
- -3V
- Length
- 6.5mm
- Height Seated (Max)
- 1.2mm
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for Renesas X9241AUVZ.
X9241AUVZ Overview
There are TSSOP packages in this package.Non-Volatile is the point at which this pentometer starts to be stored.This digital potentiometer has 4 embedded circuits.Bulk package provides access to it.Positions 64 make up this pentometer.Digital potentiometer is designed wdigital potentiometerh terminations of 20.Listed below are 4 functions included in this programmable potentiometer.Its total resistance will be 50000Ohm.The performance of 5V is provided by 5V.There is a possibility of limiting the flow by 50kOhm.By Surface Mount, digital potentiometer is mounted.There are 20 pins on this potentiameter.Convertor types can be classified by DIGITAL POTENTIOMETER.At 5V, the potentiometer conducts.At 5V, it can deliver voltage.70°C is the maximum value that ensures the stability of the digital resistor.For reliability, it must operate at 0°C degrees Celsius.There are pentometer in the Digital Potentiometers family.Maximum supply voltage is 5.5V.The unit can be powered by a voltage as low as 4.5V.In order for it to function properly, the supply current must be operated at 3mA.Despite its 100kHz frequency, it can maintain high accuracy.
X9241AUVZ Features
Available in TSSOP package
4 Circuits
20 pins
Operate supply voltage at the range of 5V
X9241AUVZ Applications
There are a lot of Intersil (Renesas Electronics America)
X9241AUVZ Digital Potentiometers applications.
- Modern office equipment
- Industrial control
- Medical equipment
- Refrigerator
- Programmable computer
- Power supply
- Power meter
- Automatic detection of equipment
- Optic fiber network
- Adjusting the LCD Display
