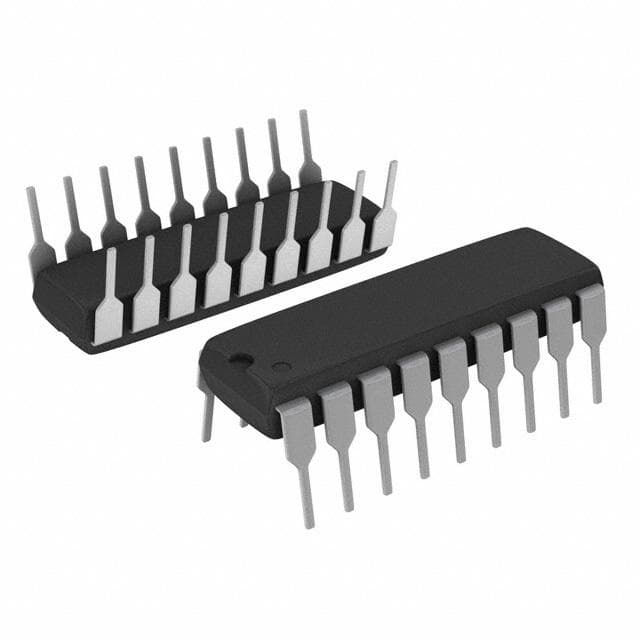

Renesas AD7521LN

Manufacturer No:

AD7521LN

Manufacturer:

Renesas

Package:

DIP

Description:

DAC 1.5 B B 7.62mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AD7521LN information

Renesas AD7521LN technical specifications, attributes, parameters and parts with similar specifications to Renesas AD7521LN.

Type
Parameter

Mount
Through Hole

Package / Case
DIP

Number of Pins
18

Packaging
Bulk

Published
2001

JESD-609 Code
e0

Pbfree Code
no

Number of Terminations
18

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Subcategory
Other Converters

Technology
CMOS

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
15V

Terminal Pitch
2.54mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
18

Qualification Status
Not Qualified

Temperature Grade
COMMERCIAL

Interface
Parallel

Power Dissipation-Max
20mW

Number of Bits
12

Converter Type
D/A CONVERTER

Supply Type
Single

Resolution
1.5 B

Sampling Rate
1 Msps

Settling Time
1 µs

Linearity Error-Max (EL)
0.05%

Input Bit Code
BINARY, OFFSET BINARY

Number of Converters
1

Height Seated (Max)
5.33mm

Width
7.62mm

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas AD7521LN.

Datasheets:

intersil-ad7521ln-datasheets-0122.pdf

AD7521LN Overview

A DIP package is provided with this component. An electrical supply voltage of 15V powers it. A Other Converters-series FPGA part. It is for space saving reasons that this FPGA model is contained in Bulk. As a whole, it has 18 terminations. 18 pins are designed into the device. As long as this FPGA is mounted in Through Hole, it should be able to function as it should in terms of its specifications, as well as its capabilities. As far as the maximum operating temperature of this module is concerned, it reaches 70°C. Operating temperatures should exceed 0°C. In addition to this, it has 18 pins.
