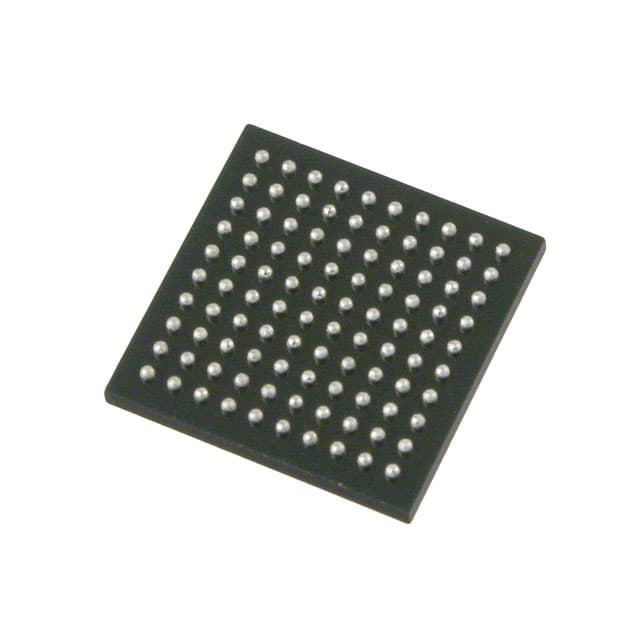

Microchip VSC8221XHH

Manufacturer No:

VSC8221XHH

Manufacturer:

Microchip

Package:

100-TFBGA

Description:

The VSC8221 is the smallest, lowest power Gigabit Ethernet (GE) over copper PHY available and is ideal for SFP/GBIC and Media Converter applications. It is the only triple speed copper SFP PHY to meet the stringent MSA power consumption requirement of 140m of Category 5, unshielded twisted pair (UTP) cable, with industry leading tolerance to NEXT, FEXT, Echo, and system noise.

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

VSC8221XHH information

Microchip VSC8221XHH technical specifications, attributes, parameters and parts with similar specifications to Microchip VSC8221XHH.

Type
Parameter

Automotive
No

DownstreamPorts
1

Energy Efficient Ethernet
No

EtherCAT
No

Port Speed
10/100/1000Mbps

Fiber Support
No

On-Chip Termination
Yes

InterfaceUpStream
SGMII

Internal Regulator
No

LinkMDCableDiag
Yes

MACsec
No

Supply Voltages
0

SyncE
No

Temperature Range Max
100

Temperature Range Min
0

Digital I/O Voltage
1 (differential)

WakeonLAN
No

IEEE 1588 v2
No

Download datasheets and manufacturer documentation for Microchip VSC8221XHH.

Microchip's complimentary and confidential MicroCHECK design review service, which offers insight from the initial concept to the final PCB layout, is available to customers who are using our products in their projects. You can confidently submit your design materials in a secure and private setting, and our expert engineers will provide individualized feedback to enhance your design. MicroCHECK design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

Very low power consumption: less than 700 mW

Single 3.3 V power supply with on-chip regulator

Supports PICMG 2.16 and 3.0 Ethernet backplanes at approximately 500 mW

High-performance 1.25 Gbps SerDes supports SGMII and SerDes-to-Cat5 interfaces

Full suite of BIST, MAC, far-end loopback, and connector loopback modes

Over 150 m of Cat5 reach with the industry's highest noise tolerance

VeriPHY™ cable diagnostics software suite

User Guide
