Nichicon UWX1E100MCL1GB
Nichicon UWX1E100MCL1GB

Nichicon UWX1E100MCL1GB

Manufacturer No:

UWX1E100MCL1GB

Manufacturer:

Nichicon

Package:

Radial, Can - SMD

Description:

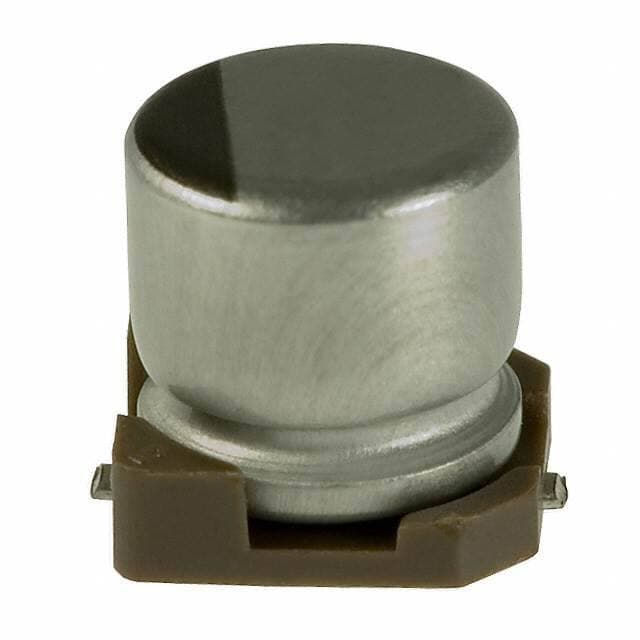

UWX 10?F Capacitor ±20% Tape & Reel (TR) Surface Mount 27mA 0.197Dia 5.00mm -40°C~85°C Polar 1.3mm Radial, Can - SMD

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UWX1E100MCL1GB information

Nichicon UWX1E100MCL1GB technical specifications, attributes, parameters and parts with similar specifications to Nichicon UWX1E100MCL1GB.

  • Type
  • Parameter
  • Factory Lead Time
  • 18 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • Radial, Can - SMD
  • Number of Pins
  • 2
  • Dielectric Material
  • Aluminium
  • Surface Mount Land Size
  • 0.209Lx0.209W 5.30mmx5.30mm
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • UWX
  • Published
  • 2004
  • Size / Dimension
  • 0.197Dia 5.00mm
  • Tolerance
  • ±20%
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • SMD/SMT
  • Max Operating Temperature
  • 85°C
  • Min Operating Temperature
  • -40°C
  • Applications
  • General Purpose
  • Voltage - Rated
  • 25V
  • Capacitance
  • 10?F
  • Voltage - Rated DC
  • 25V
  • Lead Pitch
  • 1.3mm
  • Lead Diameter
  • 800 ?m
  • Lifetime @ Temp
  • 2000 Hrs @ 85°C
  • Leakage Current
  • 3?A
  • Ripple Current
  • 27mA
  • Polarization
  • Polar
  • Life (Hours)
  • 2000 hours
  • Ripple Current @ Low Frequency
  • 27mA @ 120Hz
  • Ripple Current @ High Frequency
  • 40.5mA @ 10kHz
  • Dissipation Factor
  • 0.14 %
  • Ripple Current (AC)
  • 27mA
  • Diameter
  • 5mm
  • Height
  • 5.4mm
  • Height Seated (Max)
  • 0.213 5.40mm
  • Length
  • 5.4mm
  • Width
  • 5.3mm
  • REACH SVHC
  • No SVHC
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Nichicon UWX1E100MCL1GB.

Datasheets:

UWX1E100MCL1GB Overview


A full charge has a ripple current of 40.5mA @ 10kHz volts.In the lowest charge, the ripple current is 27mA @ 120Hz.Sitting height should not exceed 0.213 5.40mm (Max).With 0.14 % dissipation factor, it operates normally.A voltage of 25V DC operates this capacitor.Maintaining -40°C~85°C as the operating temperature will maximize efficiency.

UWX1E100MCL1GB Features


the ripple current is 40.5mA @ 10kHz.
the ripple current is 27mA @ 120Hz.
a dissipation factor of 0.14 %
voltage - Rated DC of 25V
an operating temperature of -40°C~85°C


UWX1E100MCL1GB Applications


There are a lot of Nichicon
UWX1E100MCL1GB applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems

User Guide
