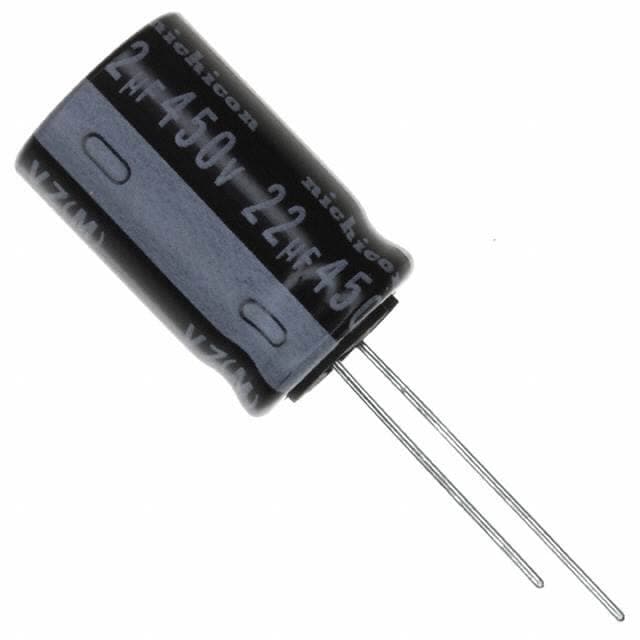

Nichicon UVZ2W220MHD
Nichicon UVZ2W220MHD

Nichicon UVZ2W220MHD

Manufacturer No:

UVZ2W220MHD

Manufacturer:

Nichicon

Package:

Radial, Can

Description:

UVZ 22?F Capacitor ±20% Bulk Through Hole 115mA 0.630Dia 16.00mm -25°C~105°C Polar 7.493mm Radial, Can

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UVZ2W220MHD information

Nichicon UVZ2W220MHD technical specifications, attributes, parameters and parts with similar specifications to Nichicon UVZ2W220MHD.

  • Type
  • Parameter
  • Factory Lead Time
  • 19 Weeks
  • Mount
  • PCB, Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can
  • Terminal Shape
  • WIRE
  • Number of Pins
  • 2
  • Dielectric Material
  • Aluminium
  • Operating Temperature
  • -25°C~105°C
  • Packaging
  • Bulk
  • Series
  • UVZ
  • Published
  • 2009
  • Size / Dimension
  • 0.630Dia 16.00mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • Radial
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn)
  • Applications
  • General Purpose
  • Capacitance
  • 22?F
  • Voltage - Rated DC
  • 450V
  • Lead Pitch
  • 7.493mm
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • Lead Spacing
  • 0.295 7.50mm
  • Lead Diameter
  • 800 ?m
  • Voltage
  • 450V
  • Lifetime @ Temp
  • 1000 Hrs @ 105°C
  • Leakage Current
  • 496?A
  • Ripple Current
  • 115mA
  • Polarization
  • Polar
  • Life (Hours)
  • 1000 hours
  • Ripple Current @ Low Frequency
  • 115mA @ 120Hz
  • Ripple Current @ High Frequency
  • 184mA @ 10kHz
  • Dissipation Factor
  • 0.25 %
  • Diameter
  • 16mm
  • Height
  • 25mm
  • Height Seated (Max)
  • 1.063 27.00mm
  • REACH SVHC
  • No SVHC
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Nichicon UVZ2W220MHD.

Datasheets:

UVZ2W220MHD Overview


Ripple current at full charge is 184mA @ 10kHz.It is 115mA @ 120Hz at the lowest charge for ripple current.Seating height (Max) should be kept below 1.063 27.00mm.Consequently, it operates with a dissipation factor of 0.25 % (0.25 %).Voltage - Rated DC - is 450V.It is recommended that the operating temperature be kept at -25°C~105°C to achieve high efficiency.

UVZ2W220MHD Features


the ripple current is 184mA @ 10kHz.
the ripple current is 115mA @ 120Hz.
a dissipation factor of 0.25 %
voltage - Rated DC of 450V
an operating temperature of -25°C~105°C


UVZ2W220MHD Applications


There are a lot of Nichicon
UVZ2W220MHD applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems

User Guide
