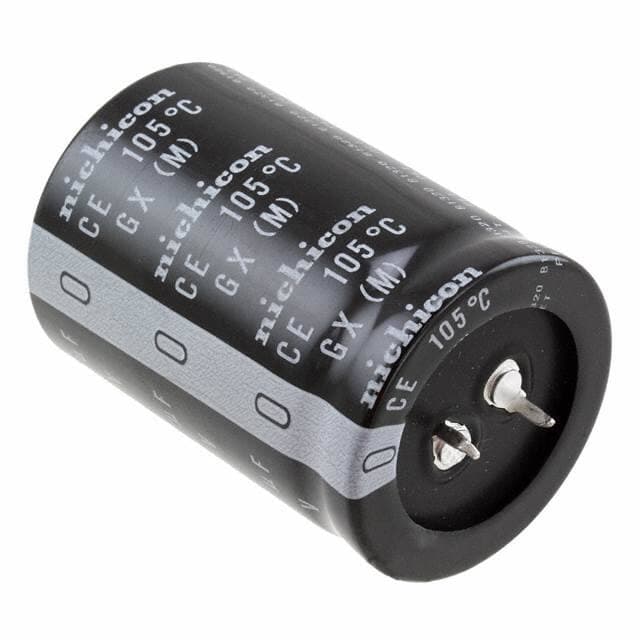

Nichicon LGX2H391MELC50
Nichicon LGX2H391MELC50

Nichicon LGX2H391MELC50

Manufacturer No:

LGX2H391MELC50

Manufacturer:

Nichicon

Package:

Radial, Can - Snap-In

Description:

LGX 390?F Capacitor ±20% Bulk Through Hole 1.78A 1.378Dia 35.00mm -25°C~105°C Polar 10.0076mm Radial, Can - Snap-In

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LGX2H391MELC50 information

Nichicon LGX2H391MELC50 technical specifications, attributes, parameters and parts with similar specifications to Nichicon LGX2H391MELC50.

  • Type
  • Parameter
  • Factory Lead Time
  • 19 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can - Snap-In
  • Dielectric Material
  • ALUMINUM (WET)
  • Operating Temperature
  • -25°C~105°C
  • Packaging
  • Bulk
  • Series
  • LGX
  • Published
  • 2009
  • Size / Dimension
  • 1.378Dia 35.00mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn)
  • Applications
  • General Purpose
  • Voltage - Rated
  • 500V
  • HTS Code
  • 8532.22.00
  • Capacitance
  • 390?F
  • Lead Pitch
  • 10.0076mm
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • Lifetime @ Temp
  • 5000 Hrs @ 105°C
  • Ripple Current
  • 1.78A
  • Polarization
  • Polar
  • Life (Hours)
  • 5000 hours
  • Ripple Current @ Low Frequency
  • 1.78A @ 120Hz
  • Ripple Current @ High Frequency
  • 2.5454A @ 50kHz
  • Height Seated (Max)
  • 2.047 52.00mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Nichicon LGX2H391MELC50.

LGX2H391MELC50 Overview


During full charge, the ripple current is 2.5454A @ 50kHz.When the battery is charged to its lowest level, the ripple current is 1.78A @ 120Hz.You should keep the height of the seat (Max) below 2.047 52.00mm.If you want high efficiency, you should keep the operating temperature at -25°C~105°C.

LGX2H391MELC50 Features


the ripple current is 2.5454A @ 50kHz.
the ripple current is 1.78A @ 120Hz.
an operating temperature of -25°C~105°C


LGX2H391MELC50 Applications


There are a lot of Nichicon
LGX2H391MELC50 applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
