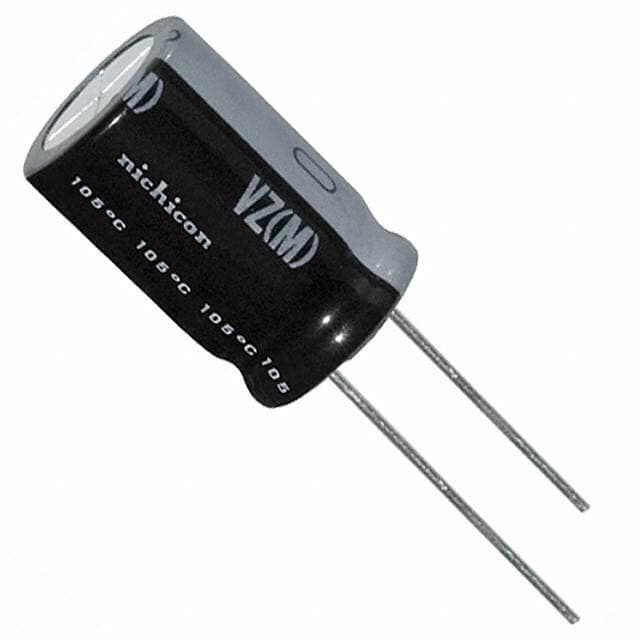

NICHICON UVZ1V222MHD

Manufacturer No:

UVZ1V222MHD

Manufacturer:

NICHICON

Package:

Radial, Can

Description:

UVZ 2200?F Capacitor ±20% Bulk Through Hole 1.26A 0.630Dia 16.00mm -55°C~105°C Polar 7.493mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UVZ1V222MHD information

NICHICON UVZ1V222MHD technical specifications, attributes, parameters and parts with similar specifications to NICHICON UVZ1V222MHD.

Type
Parameter

Factory Lead Time
19 Weeks

Mount
PCB, Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Terminal Shape
WIRE

Number of Pins
2

Dielectric Material
Aluminium

Operating Temperature
-55°C~105°C

Packaging
Bulk

Series
UVZ

Published
2009

Size / Dimension
0.630Dia 16.00mm

Tolerance
±20%

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
Radial

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Applications
General Purpose

Capacitance
2200?F

Voltage - Rated DC
35V

Lead Pitch
7.493mm

Capacitor Type
ALUMINUM ELECTROLYTIC CAPACITOR

Lead Spacing
0.295 7.50mm

Lead Diameter
800 ?m

Voltage
35V

Lifetime @ Temp
1000 Hrs @ 105°C

Leakage Current
2.31mA

Ripple Current
1.26A

Polarization
Polar

Life (Hours)
1000 hours

Tan Delta
0.18

Ripple Current @ Low Frequency
1.26A @ 120Hz

Ripple Current @ High Frequency
1.449A @ 10kHz

Dissipation Factor
0.14 %

Diameter
16mm

Height
25mm

Height Seated (Max)
1.063 27.00mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for NICHICON UVZ1V222MHD.

UVZ1V222MHD Overview

As far as the ripple current is concerned, it is 1.449A @ 10kHz at full charge.As far as the ripple current is concerned, it is 1.26A @ 120Hz at the lowest charge.The height seated (Max) should be kept below 1.063 27.00mm.It operates from a 0.14 % dissipation factor.This capacitor operates from a voltage - Rated DC of 35V.The operating temperature should be maintained at -55°C~105°C for high efficiency.

UVZ1V222MHD Features

the ripple current is 1.449A @ 10kHz.
the ripple current is 1.26A @ 120Hz.
a dissipation factor of 0.14 %
voltage - Rated DC of 35V
an operating temperature of -55°C~105°C

UVZ1V222MHD Applications

There are a lot of Nichicon
UVZ1V222MHD applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
