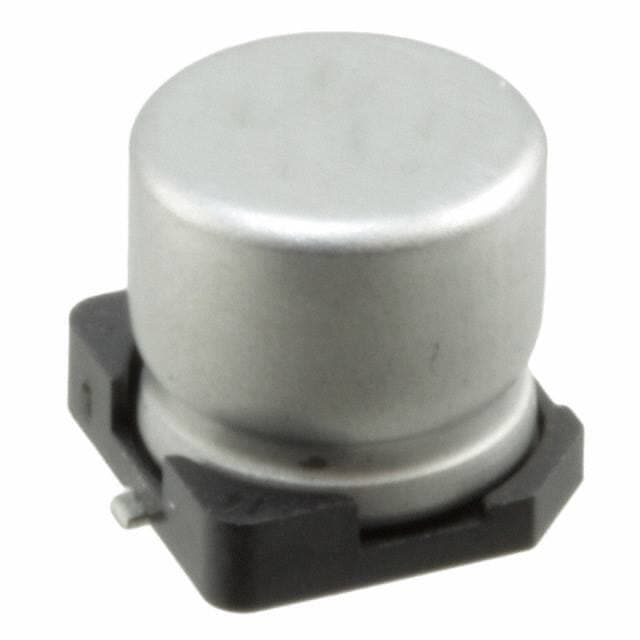

NICHICON UUP1C220MCL1GS

Manufacturer No:

UUP1C220MCL1GS

Manufacturer:

NICHICON

Package:

Radial, Can - SMD

Description:

UUP 22?F Capacitor ±20% Tape & Reel (TR) Surface Mount 37mA 0.248Dia 6.30mm -55°C~105°C Bi-Polar Radial, Can - SMD

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UUP1C220MCL1GS information

NICHICON UUP1C220MCL1GS technical specifications, attributes, parameters and parts with similar specifications to NICHICON UUP1C220MCL1GS.

Type
Parameter

Factory Lead Time
18 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
Radial, Can - SMD

Terminal Shape
FLAT

Dielectric Material
ALUMINUM (WET)

Surface Mount Land Size
0.260Lx0.260W 6.60mmx6.60mm

Operating Temperature
-55°C~105°C

Packaging
Tape & Reel (TR)

Series
UUP

Published
2015

Size / Dimension
0.248Dia 6.30mm

Tolerance
±20%

JESD-609 Code
e6

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
SMD/SMT

ECCN Code
EAR99

Terminal Finish
Tin/Bismuth (Sn/Bi)

Applications
General Purpose

HTS Code
8532.22.00

Capacitance
22?F

Capacitor Type
ALUMINUM ELECTROLYTIC CAPACITOR

Size Code
2626

Lifetime @ Temp
1000 Hrs @ 105°C

Leakage Current
108.8?A

Ripple Current
37mA

Polarization
Bi-Polar

Life (Hours)
1000 hours

Ripple Current @ Low Frequency
37mA @ 120Hz

Ripple Current @ High Frequency
55.5mA @ 10kHz

Dissipation Factor
0.17 %

Ripple Current (AC)
37mA

Diameter
6.3mm

Height
5.8mm

Height Seated (Max)
0.240 6.10mm

Length
7mm

Width
6.6mm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NICHICON UUP1C220MCL1GS.

Datasheets:

nichicon-pcj1a391mcl1gs-datasheets-5842.pdf

nichicon-pcf1a151mcl6gs-datasheets-6222.pdf

UUP1C220MCL1GS Overview

Full charge should result in a ripple current of 55.5mA @ 10kHz.If the charge is low, ripple current is 37mA @ 120Hz.Keep your seated height below 0.240 6.10mm.Based on the dissipation factor of 0.17 %, it operates.A voltage of 16V DC is used to operate this capacitor.The maximum efficiency can be achieved by maintaining -55°C~105°C as the operating temperature.

UUP1C220MCL1GS Features

the ripple current is 55.5mA @ 10kHz.
the ripple current is 37mA @ 120Hz.
a dissipation factor of 0.17 %
voltage - Rated DC of 16V
an operating temperature of -55°C~105°C

UUP1C220MCL1GS Applications

There are a lot of Nichicon
UUP1C220MCL1GS applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
