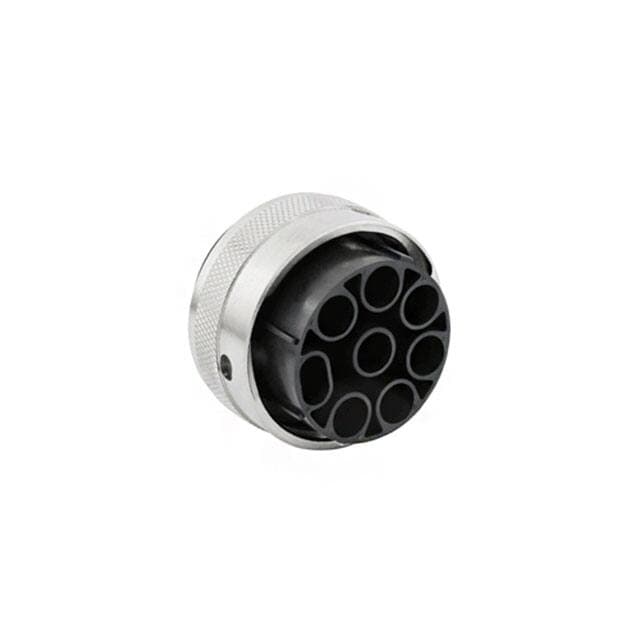

SOURIAU-SUNBANK UTG6247SN

Manufacturer No:

UTG6247SN

Manufacturer:

SOURIAU-SUNBANK

Package:

Metal

Description:

Plug Housing Brass Free Hanging (In-Line) Nickel 9 (8 + PE) Positions Bulk Bayonet Lock Unshielded Contacts Not Included Trim Trio® UTG

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UTG6247SN information

SOURIAU-SUNBANK UTG6247SN technical specifications, attributes, parameters and parts with similar specifications to SOURIAU-SUNBANK UTG6247SN.

Type
Parameter

Factory Lead Time
10 Weeks

Contact Material
NOT SPECIFIED

Mount
Free Hanging

Mounting Type
Free Hanging (In-Line)

Package / Case
Metal

Contact Shape
Circular

Shell Material
Brass

Insert Material
Thermoplastic, Glass Filled

Operating Temperature
-55°C~125°C

Packaging
Bulk

Series
Trim Trio® UTG

Feature
Coupling Nut

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Connector Type
Plug Housing

Type
For Female Sockets

Number of Positions
9 (8 + PE)

Additional Feature
COMPATIBLE CONTACTS: RC28M1D28; RC24M9D28; RC20M13D28, POLARIZED, 1 GROUND CONTACT AVAILABLE

Fastening Type
Bayonet Lock

Contact Finish - Mating
NOT SPECIFIED

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Contact Type
Crimp

Option
GENERAL PURPOSE

Total Number of Contacts
9

Orientation
N (Normal)

Shielding
Unshielded

Shell Finish
Nickel

Shell Size - Insert
24-7

Mating Information
UTG6247PN

Housing Color
Silver

Empty Shell
YES

Note
Contacts Not Included

Contact Size
8 7 16 2

Material Flammability Rating
UL94 V-0

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for SOURIAU-SUNBANK UTG6247SN.

datasheets:

souriausunbank-utg6247sn-datasheets-4308.pdf

UTG6247SN Overview

This product is packaged in a Plug Housing box.Free Hanging (In-Line) indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the Trim Trio® UTG Series.There are many benefits shared by this part and other products in the [0] category.It is possible to ensure that Coupling Nut remains constant during operation.This part must be mounted with a Free Hanging socket.Furthermore, there are other features such as COMPATIBLE CONTACTS: RC28M1D28; RC24M9D28; RC20M13D28, POLARIZED, 1 GROUND CONTACT AVAILABLE, to name a few.Metal refers to a package enclosing a device.

UTG6247SN Features

Trim Trio® UTG series

UTG6247SN Applications

There are a lot of SOURIAU-SUNBANK
UTG6247SN Circular Connectors applications.

CMOS Image sensors for mobile applications
Medical Instrumentation and medical imaging
Music recording
Digital signal processing
Scientific instruments
Rotary encoder
Displaying
Transducer
Microcontrollers.
Digital Storage Oscilloscope
