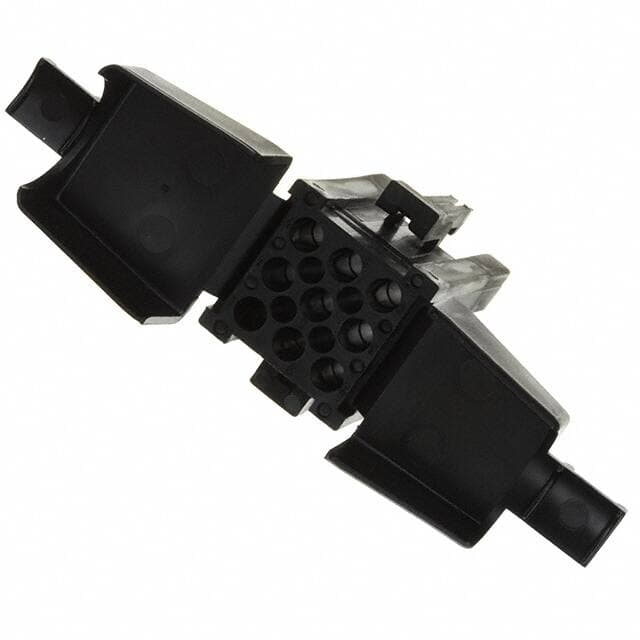

SOURIAU-SUNBANK SMS9PDH1

Manufacturer No:

SMS9PDH1

Manufacturer:

SOURIAU-SUNBANK

Package:

Description:

3 Rows Plug Black 9 Positions Free Hanging (In-Line) Male or Female Crimp SMS Polyamide

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SMS9PDH1 information

SOURIAU-SUNBANK SMS9PDH1 technical specifications, attributes, parameters and parts with similar specifications to SOURIAU-SUNBANK SMS9PDH1.

Type
Parameter

Factory Lead Time
10 Weeks

Contact Material
Gold

Mount
Free Hanging

Mounting Type
Free Hanging (In-Line)

Housing Material
Polyamide

Series
SMS

Feature
Strain Relief

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Connector Type
Plug

Number of Positions
9

Max Operating Temperature
105°C

Min Operating Temperature
-55°C

Color
Black

Number of Rows
3

Additional Feature
TRIM TRIO

Fastening Type
Latch Lock

Contact Finish - Mating
NOT SPECIFIED

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Contact Type
Male or Female

Mixed Contacts
NO

Total Number of Contacts
9

Orientation
Straight

Depth
60.1mm

Current Rating
5A

Contact Gender
Male

Empty Shell
NO

Operating Supply Voltage
2kV

Insulation Resistance
5GOhm

Row Spacing
0.200 (5.08mm)

Note
Contacts Not Included

Contact Termination
Crimp

Length
75.3mm

Width
18.6mm

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Flammability Rating
UL94 V-2

Lead Free
Lead Free

Download datasheets and manufacturer documentation for SOURIAU-SUNBANK SMS9PDH1.

Datasheets:

souriau-sms9pdh1-datasheets-8546.pdf

SMS9PDH1 Overview

This product is packaged in a Plug box.Free Hanging (In-Line) indicates that the device is mounted.The product is a part of the SMS Series.Furthermore, there are other features such as TRIM TRIO, to name a few.In many ways, Strain Relief makes it more powerful.By Free Hanging, the part is mounted.The operating voltage of this memory is 2kV.

SMS9PDH1 Features

SMS series

SMS9PDH1 Applications

There are a lot of SOURIAU-SUNBANK
SMS9PDH1 Rectangular Connectors applications.

Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
Blowers
Control panels
